Yanmar 6LYA, 6LY3 Stainless Steel Exhaust Mixing Elbow 119574-13530 Replacement HDI BVB

Yanmar 6LYA, 6LY3 Stainless Steel Exhaust Mixing Elbow 119574-13530 Replacement HDI BVB

by HDI Marine
$1,260.00 AUD - $1,260.00 AUD
$1,260.00 AUD
$1,260.00 AUD - $1,260.00 AUD
$1,260.00 AUD

Yanmar 119574-13501 Stainless Exhaust Mixing Elbow Replacement

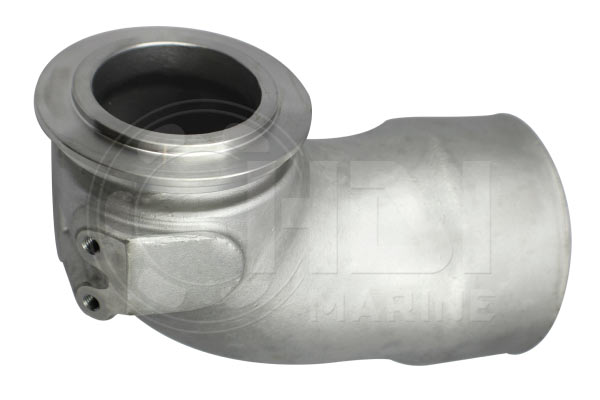

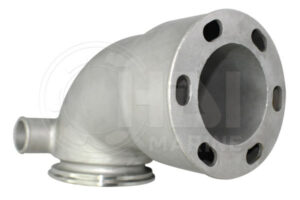

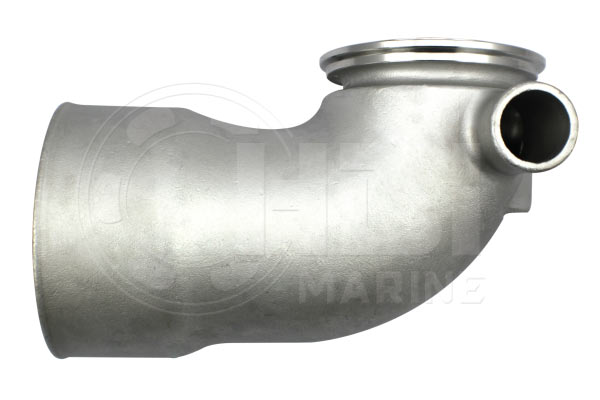

Upgrade to this cast 316 stainless steel mixing elbow.

Suits Yanmar 6LYA-UTE, 6LYA-STP , 6LYA-STE, 6LY-UTE, 6LY-STE, 6LY2A-STP,/STE,  6LY3-ETP, 6LY3-STP, 6LY3-UTP

Replaces Yanmar 119574-13500, 119574-13501, 119574-13530, 719578-13500.

(Note some elbows are incorrectly listed with the typo 119547-13500.)

Purchase includes gasket that replaces Yanmar 119574-13251. This gasket is an extra AUD $11.60 from Yanmar.

Use with Exhaust Clamp HDI BVBC replaces Yanmar 119574-13300.

Precision CNC machined investment cast 316 stainless steel.

1-1/2” (38mm) water inlet
5” (127mm) discharge diameter
Product weighs 5.7kg (12.5 lbs)
Shipping weight is 6.14kg (13.5 lbs)

This is a non-OEM, aftermarket part HDI BVB.
