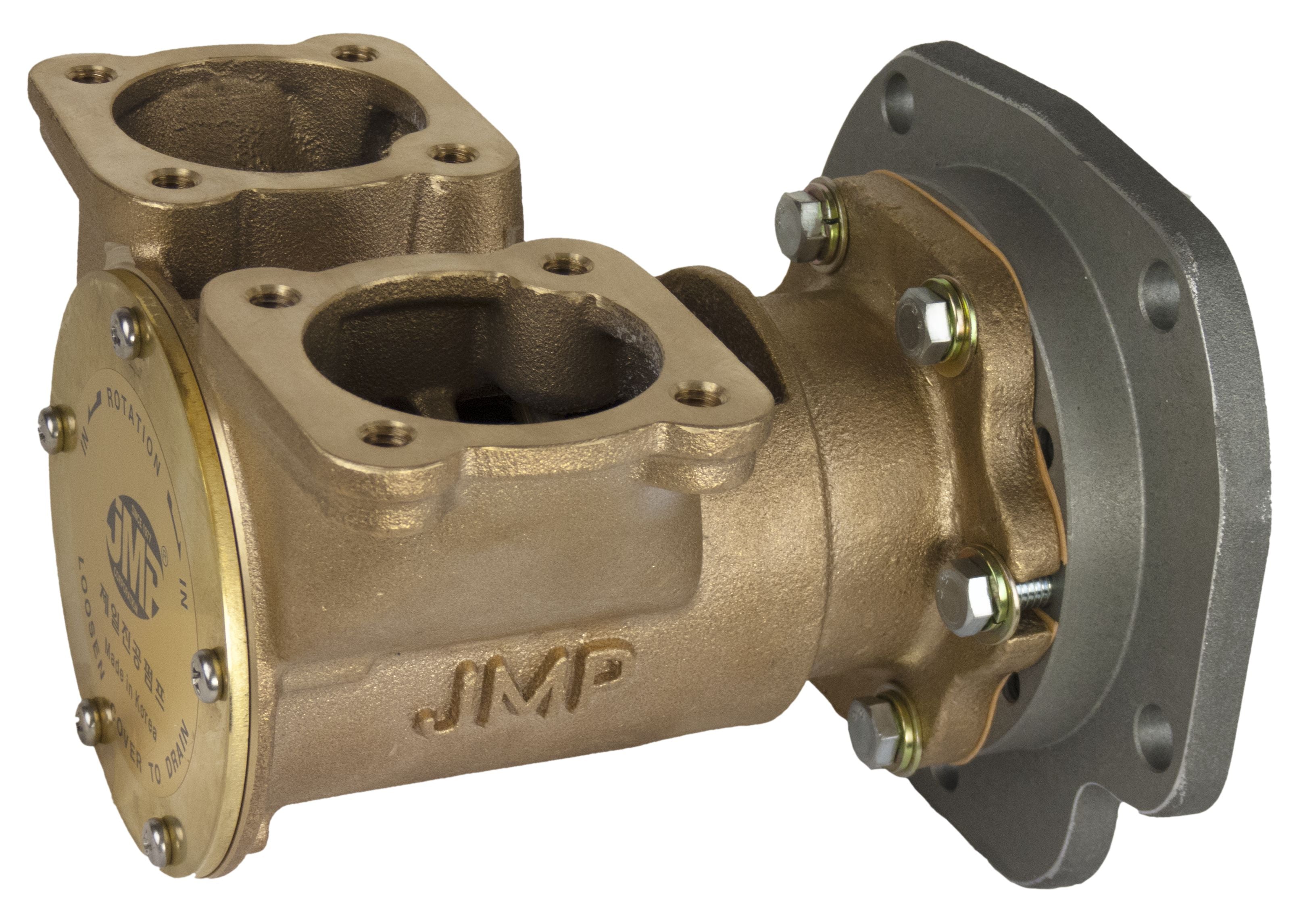

Detroit Diesel 6-71TI, 8V71, 12V71 Seawater Pump Replacement G6200
by JMP
Original price
$1,760.00 AUD
-
Original price
$1,760.00 AUD
Original price
$1,760.00 AUD
$1,760.00 AUD
-
$1,760.00 AUD
Current price
$1,760.00 AUD
Suits Detroit Diesel marine engines 6V71TI, 8V71, 12V71
Replaces Jabsco pump 6980-3100
Replaces Detroit Diesel pump 23507972, 5122599, 5106016, 8924265, 23501769.
This pump is supplied with the drive gear.
All parts interchangeable with the original pump.
This is a non-OEM, aftermarket part JMP JPR G6200, See link for Product video
Impeller: JMP - 8301-01 (Detroit Diesel 8924839, JABSCO 17936-0001)
Major Service Kit: JMP - JSK0025 (Detroit Diesel 5197222).

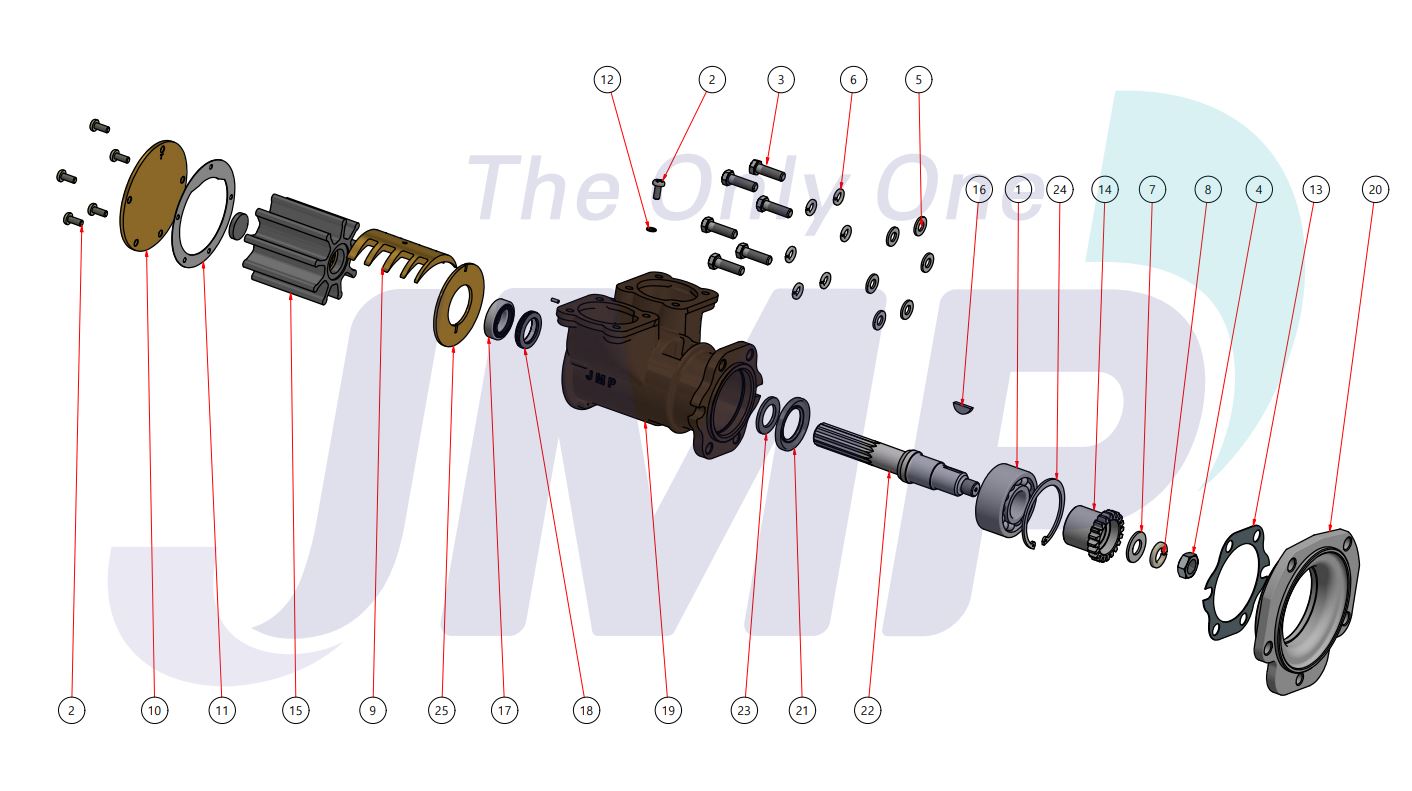

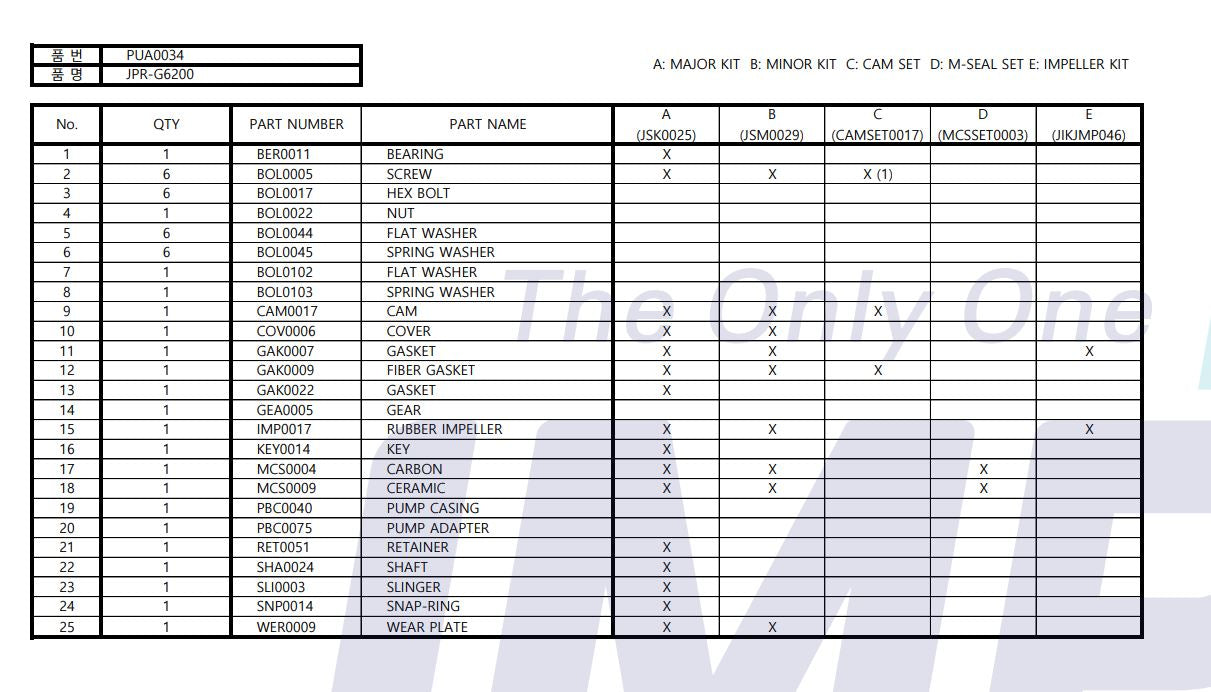

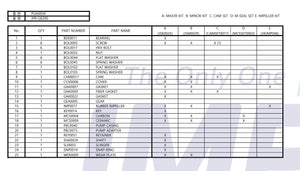

| JMP | DETROIT | DESCRIPTION | QTY | REMARK |
|---|---|---|---|---|
| JPR-G6200 | 23507972 | SEA WATER PUMP | 1 | |
| BER0011 | 23505479 | BALL BEARING | 1 | |
| BOL0005 | 23504236 | SCREW, END COVER | 5 | |
| CAMSET0017 | 5196167 | CAM SET | 1 | |
| COV0006 | 5193555 | END COVER | 1 | |
| 8301-01 | 8924839 | IMPELLER | 1 | |
| GAK0007 | 5193562 | GASKET, END COVER | 1 | |
| KEY0014 | 5197611 | KEY | 2 | |
| MCSSET0003 | 5198419 | MECHANICAL SEAL SET | 1 | |
| RET0011 | 5195101 | OIL SEAL | 1 | |
| SHA0024 | 5196169 | SHAFT | 1 | |
| SNP0014 | 5169171 | SNAP RING | 1 | |
| WER0009 | 5193556 | WEAR PLATE | 1 | |
| GEA0005 | 5196170 | GEAR | 1 | |
| JSM0029 | N/A | MINOR KIT | 1 | |
|
JSK0025 |
5197222 | MAJOR KIT | 1 | ALL INTERNAL PARTS |
