Cummins K38 & K50 Seawater Pump 3049157 Replacement JPR-C3800
by JMP
Original price
$9,350.00 AUD
-
Original price
$9,350.00 AUD
Original price
$9,350.00 AUD
$9,350.00 AUD
-
$9,350.00 AUD
Current price
$9,350.00 AUD

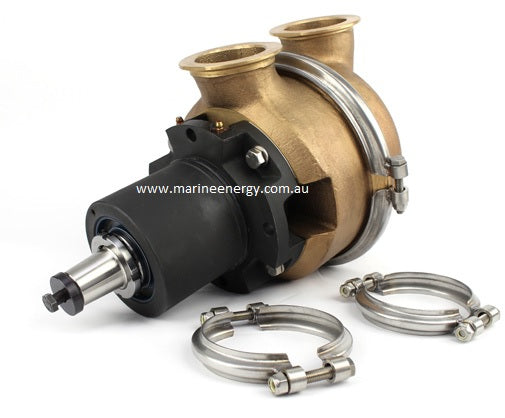

Raw water pump for Cummins KT38M, KTA38M, KTA50M engines
Mount seal o ring provided on pump
Replaces Cummins 3049157, 3085649, 3897669.
This is a non-OEM, aftermarket pump JMP JPR C3800.
Special order in Item 3-6 weeks lead time

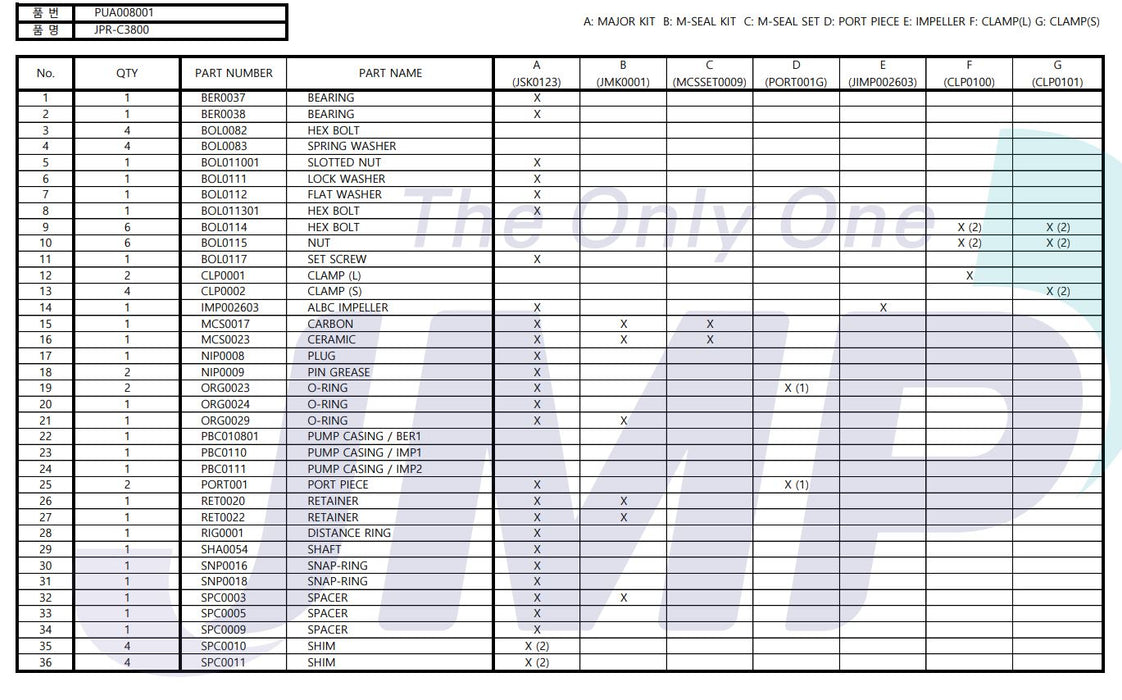

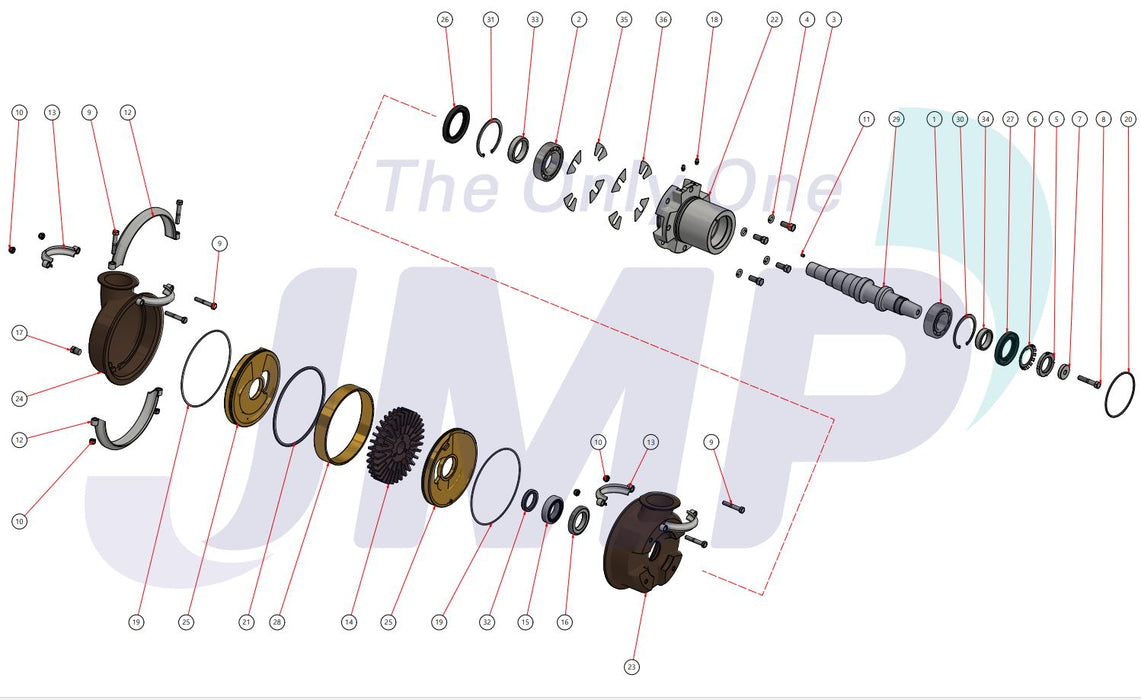

Pump Parts:
| JMP | DESCRIPTION | QTY | REMARK |
|---|---|---|---|
| JPR-C3800 | SEA WATER PUMP | 1 | WITH CLAMP |
| JPR-C3800G | SEA WATER PUMP | 1 | WITH CLAMP, GEAR |
| BER0037 | BALL BEARING | 1 | |
| BER0038 | BALL BEARING | 1 | |
| CLP0100 | CLAMP ASSEMBLY(LARGE) | 1 | |
| CLP0101 | CLAMP ASSEMBLY(SMALL) | 2 | |
| IMP002603 | IMPELLER | 1 | |
| MCSSET0009 | MECHANICAL SEAL SET | 1 | |
| ORG0023 | O-RING | 2 | |
| ORG0024 | O-RING | 1 | |
| ORG0029 | O-RING | 1 | |
| PORT001G | PLATE, PORT | 2 | WITH ORG0023 |
| RET0020 | OIL SEAL | 1 | |
| RET0022 | OIL SEAL | 1 | |
| RIG0001 | RING, DISTANCE | 1 | |
| SHA0054 | SHAFT | 1 | |
| SNP0016 | SNAP RING | 1 | |
| SNP0018 | SNAP RING | 1 | |
| SPC0003 | SPACER | 1 | |
| GEA0015 | GEAR | 1 | |
| JMK0001 | SEAL KIT | 1 | INCLUDES No.7,10,12,13, 18 |
| JSK0123 | MAJOR KIT | 1 | ALL INTERNAL PARTS |
