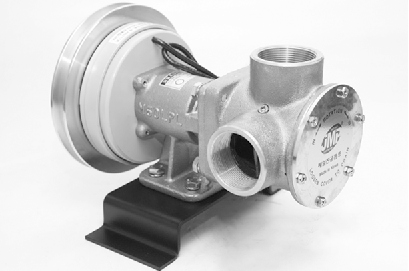

This is a non-OEM, aftermarket pump JMP JPR-M50LPL
Pulley 8" 1 groove/ C section is available
Service Kits( Replacement Parts) are available
Dimensions:
| Inlet | Outlet | Size (LxWxH) | Weight | Notes |
|---|---|---|---|---|
| 2" | 2" | 300 x 205 x 205 | 18.2kg |
Pump Parts:
| JMP | OEM | Desription | Qty | Notes |
|---|---|---|---|---|
| 8400-01 | Impeller | 1 | ||
| JSM0012 | Minor Kit | 1 | ||
| JSK0013 | Major Kit | 1 | ||
| BER0006 | Bearing Drive | 1 | ||
| BER0006 | Bearing Seal | 1 | ||
| BOL0081 | Screw | |||
| CAMSET0008 | Camset | 1 | ||
| COV0008 | End Cover | 1 | ||
| GAK0019 | Cover Gasket | 1 | ||
| KEY0003 | Key | 1 | ||
| MCSSET0003 | Seal | 1 | ||
| N/A | Retainer Drive | 1 | ||
| RET0007 | Retainer Seal | 1 | ||
| SHA0013 | Shaft | 1 | ||
| N/A | Slinger | 1 | ||
| SNP0008 | Snap Ring Seal | 1 | ||
| SNP0013 | Snap Ring Drive | 1 | ||
| WER0004 | Wear Plate | 1 | ||
| Clutch / Drive | 1 |
