Hyundai Seasall S250 & 270 Seawater Pump 00102-5S01 Replacement JPR-HDS250
by JMP Marine
Original price
$2,200.00 AUD
-
Original price
$2,200.00 AUD
Original price
$2,200.00 AUD
$2,200.00 AUD
-
$2,200.00 AUD
Current price
$2,200.00 AUD

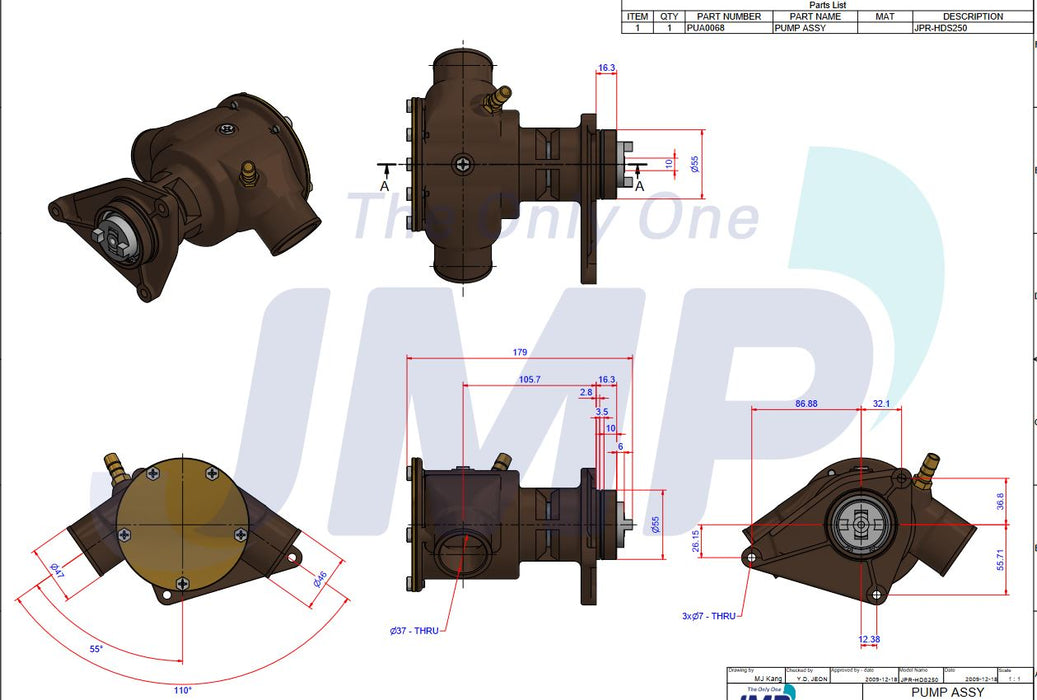

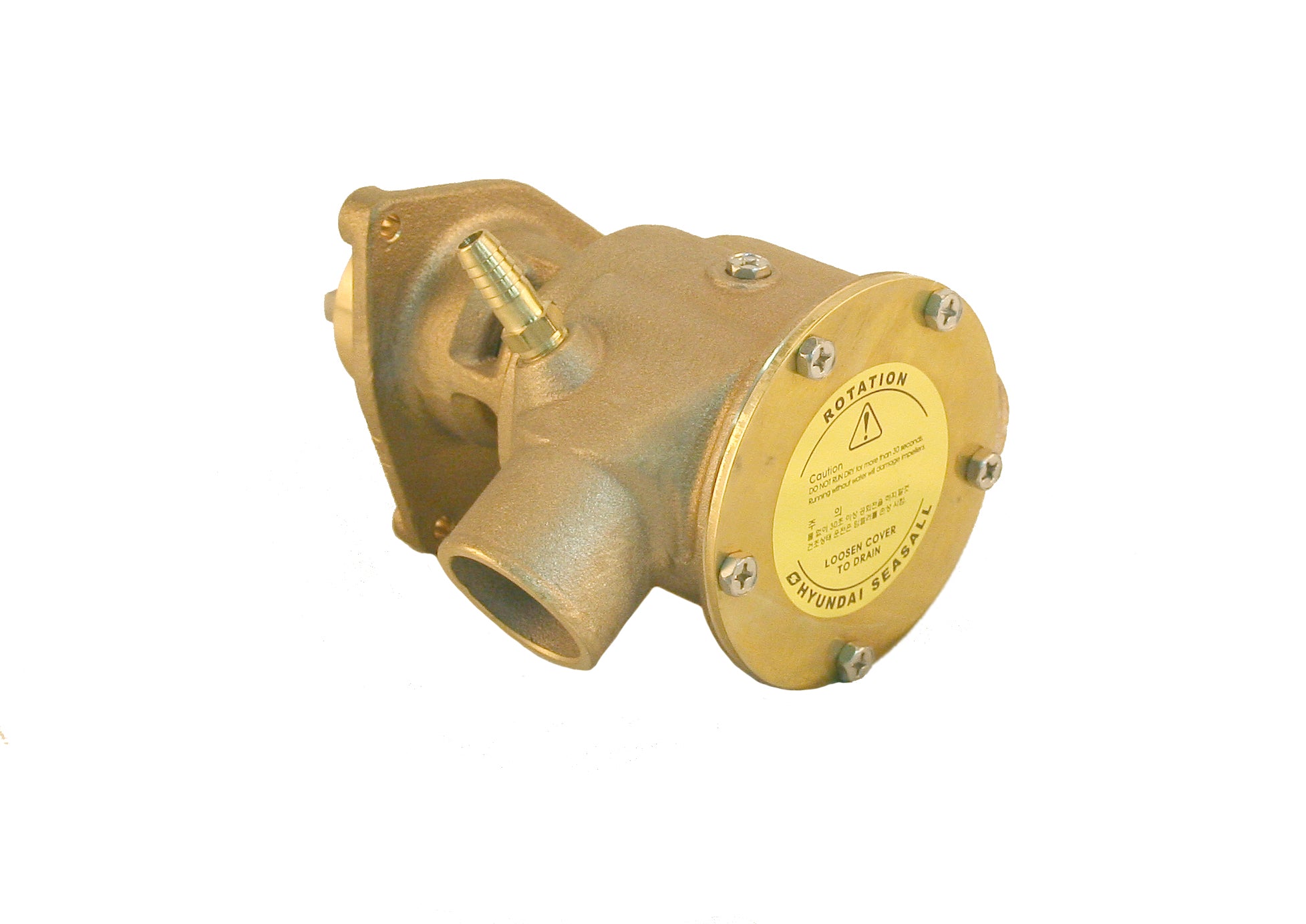

Hyundai Seasall S250 & S270 Seawater pump Replacement JPR-HDS250
Suits Hyundai Seasall S Series Engines 250S & 270S with Seawater Pump 00102-5S01.
This is a JMP Marine pump JPR-HDS250.
Port size: ID 36mm; OD 44mm HOSE
Unpackaged weight 4.6kg.

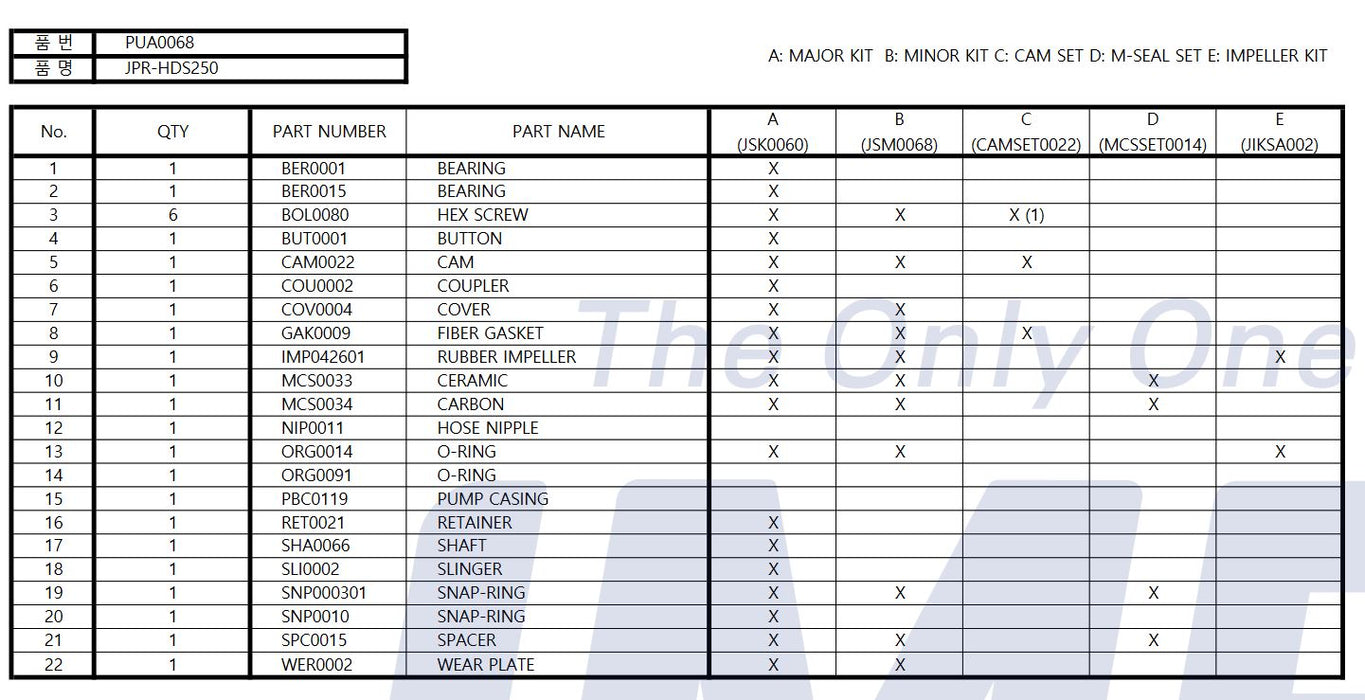

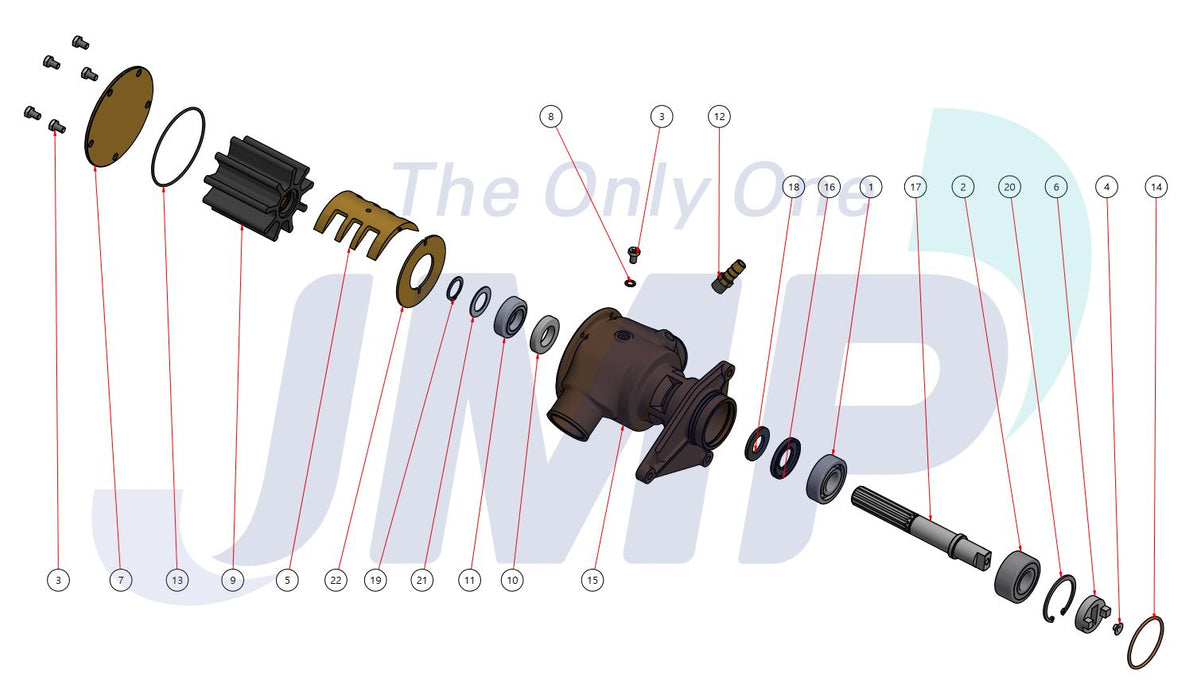

Pump Parts:
| JMP | OEM | Description | Qty | Notes |
|---|---|---|---|---|
| 7556-01 | Impeller | 1 | ||
| JSM0068 | Minor Kit | 1 | ||
| JSK0060 | Major Kit | 1 | ||
| BER0015 | Bearing Drive | 1 | ||
| BER0001 | Bearing Seal | 1 | ||
| BOL0080 | Screw | |||
| CAMSET0022 | Camset | 1 | ||
| COV0004 | End Cover | 1 | ||
| ORG0014 | Cover Gasket | 1 | ||
| N/A | Key | 1 | ||
| MCSSET0014 | Seal | 1 | ||
| N/A | Retainer Drive | 1 | ||
| RET0021 | Lip Seal | 1 | ||
| SHA0066 | Shaft | 1 | ||
| SLI0002 | Slinger | 1 | ||
| SNP000301 | Snap Ring Seal | 1 | ||
| SNP0010 | Snap Ring Drive | 1 | ||
| WER0002 | Wear Plate | 1 | ||
| Clutch / Drive | 1 |
