Doosan V158TIH, TIM, TIL Seawater Pump 60.06800-7063 JMP JPR-D6500
by JMP
Original price
$4,070.00 AUD
-
Original price
$4,070.00 AUD
Original price
$4,070.00 AUD
$4,070.00 AUD
-
$4,070.00 AUD
Current price
$4,070.00 AUD

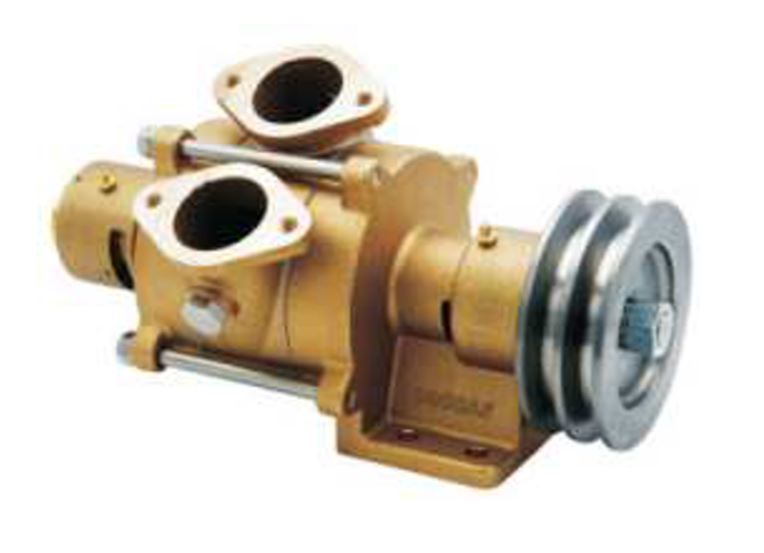

Replacement Seawater Pump for Doosan Marine engines V158TI, V180TI, V222TI.
This is a JMP Marine pump JMP JPR-D6500.

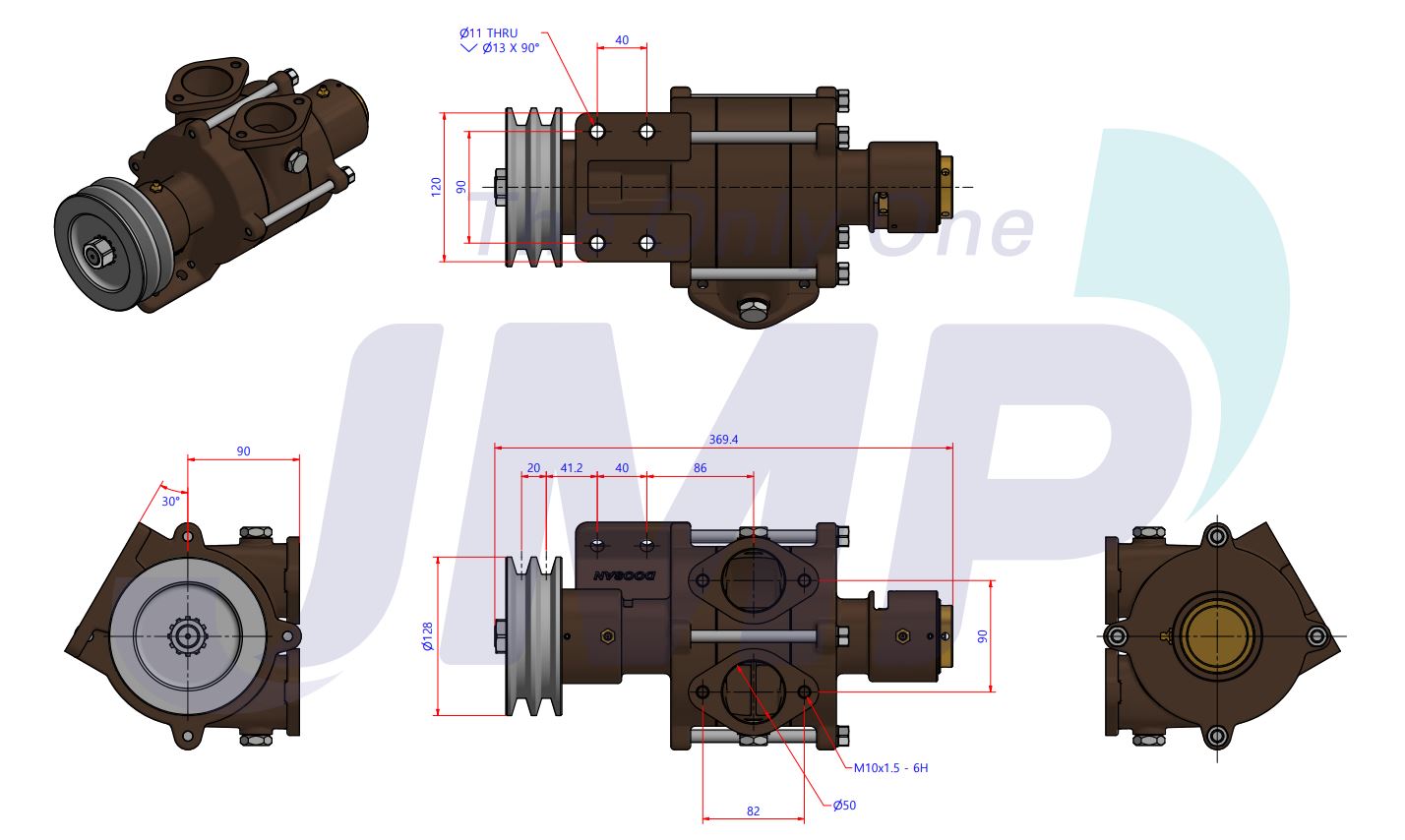

Dimensions:
| Inlet | Outlet | Size (LxWxH) | Weight | Notes |
|---|---|---|---|---|
| 2" | 2" | 370 x 185 x 185 | 20.0 kgs |

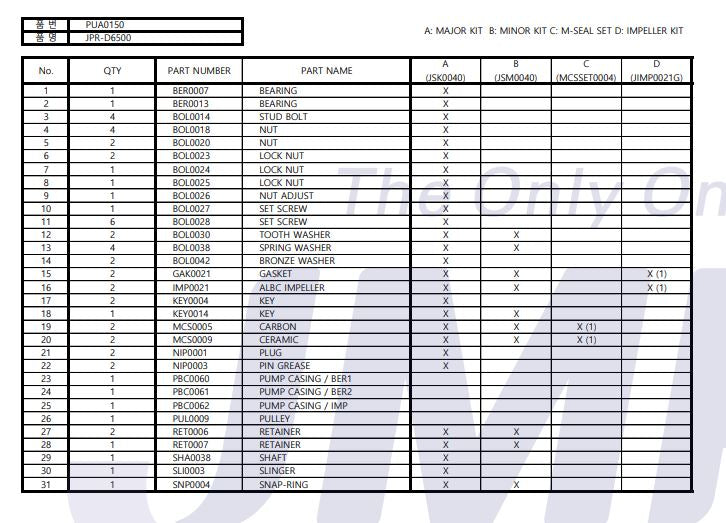

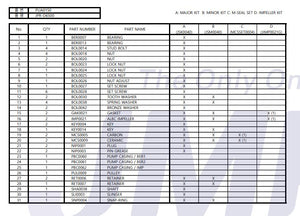

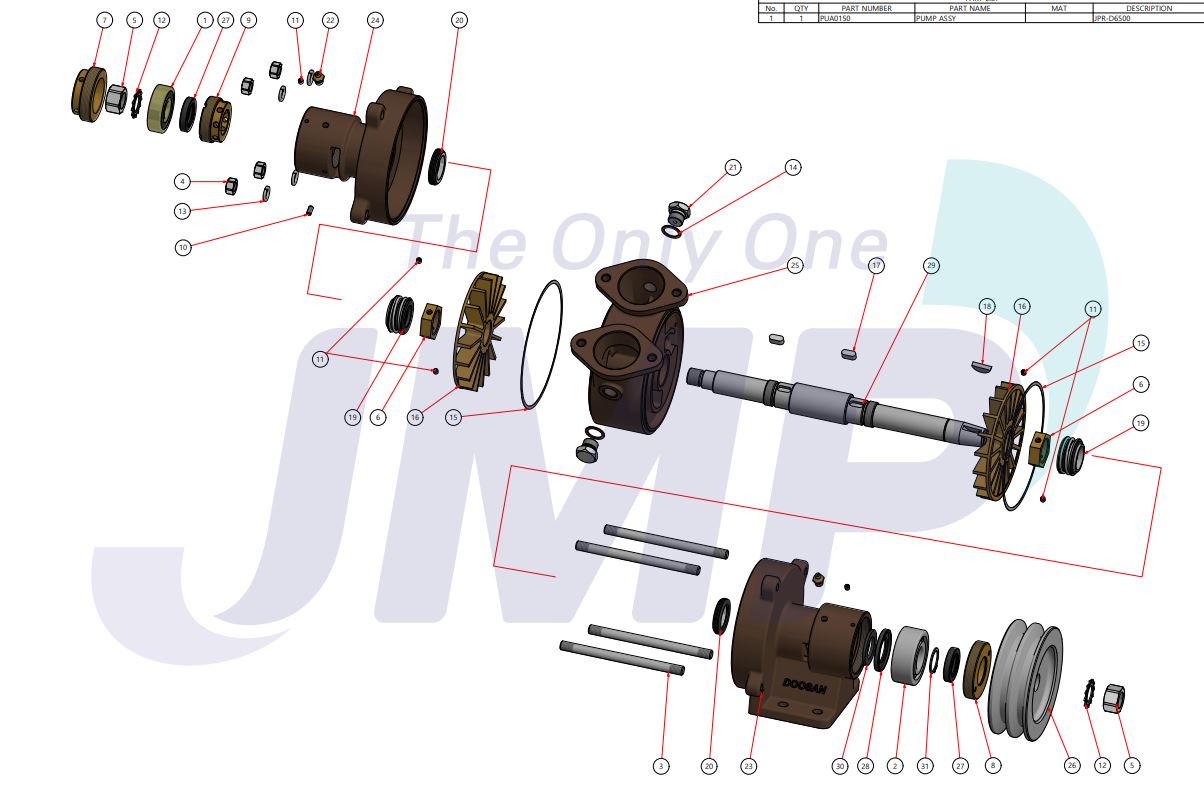

Pump Parts:
| JMP | OEM | Description | Qty | Notes |
|---|---|---|---|---|
| IMP0021 | Impeller | 2 | ||
| JSM0040 | Minor Kit | 1 | ||
| JSK0040 | Major Kit | 1 | ||
| BER0013 | Bearing Drive | 1 | ||
| BER0007 | Bearing Seal | 1 | ||
| N/A | Screw | |||
| N/A | Camset | 1 | ||
| N/A | End Cover | 1 | ||
| GAK0021 | Cover Gasket | 1 | ||
| KEY0014 | Key | 1 | ||
| MCSSET0004 | Seal | 1 | ||
| RET0006 | Retainer Drive | 1 | ||
| RET0007 | Retainer Seal | 1 | ||
| SHA0038 | Shaft | 1 | ||
| SLI0003 | Slinger | 1 | ||
| N/A | Snap Ring Seal | 1 | ||
| SNP0004 | Snap Ring Drive | 1 | ||
| N/A | Wear Plate | 1 | ||
| PUL0009 | Clutch / Drive | 1 |
