Yanmar 6LP/ 6LPA-STP2 Seawater Pump with Ports 119773-42502 Replacement JPR-YM06LP(A)
by JMP
Original price
$1,320.00 AUD
-
Original price
$1,320.00 AUD
Original price
$1,320.00 AUD
$1,320.00 AUD
-
$1,320.00 AUD
Current price
$1,320.00 AUD

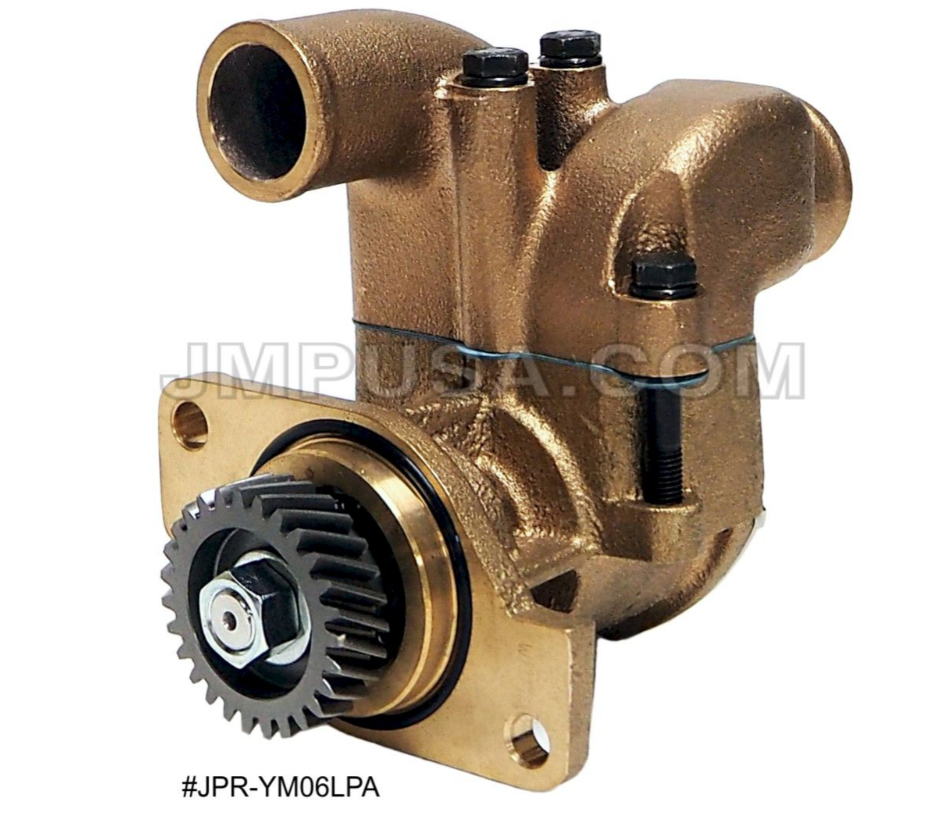

Yanmar 6LP/ 6LPA-STP2 Seawater Pump with ports 119773-42502 Replacement
Replaces Yanmar 119773-42502 / 119773-42501 / 119773-42500 / 119773-42650 / 119773-42652 (DTZE / STZE models need to use old ports with gasket 119787-42570).
Replaces Johnson 10-24493-01
Please note - this pump is supplied with the intake & outlet Port Housing. For the pump without the port housing, use JMP JPR - YM06LP (B).
Includes gear and mounting o-ring similar to Yanmar 24321-000650
This is a JMP Marine pump JPR - YM06LP (A). See link for Product Video
All parts are interchangeable with Yanmar.

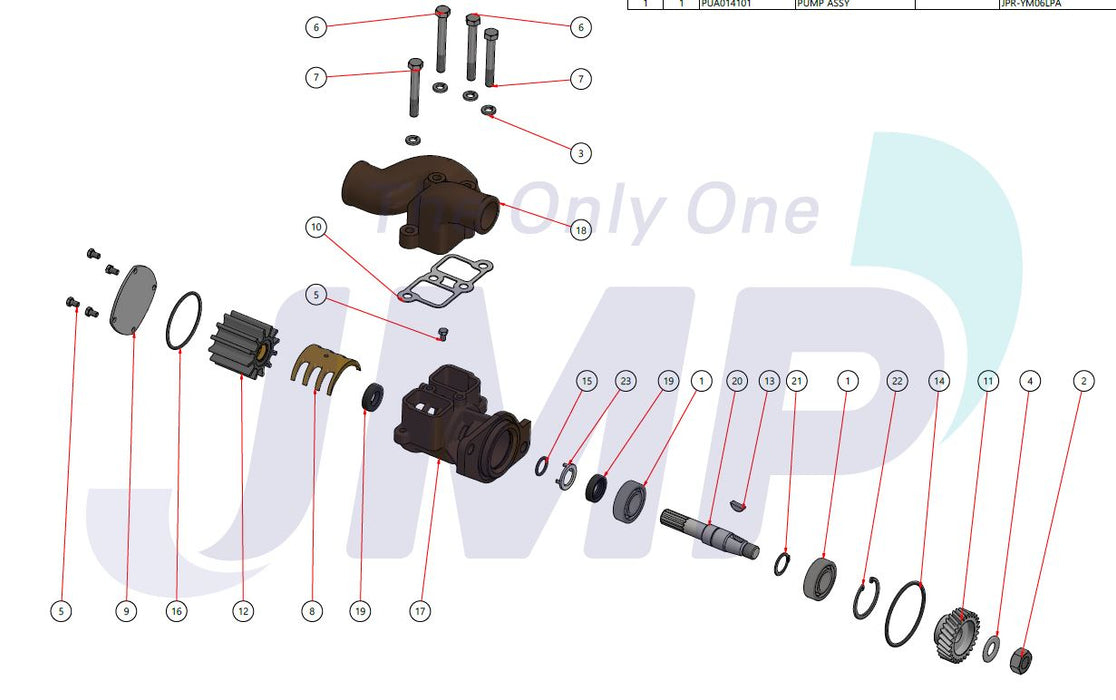

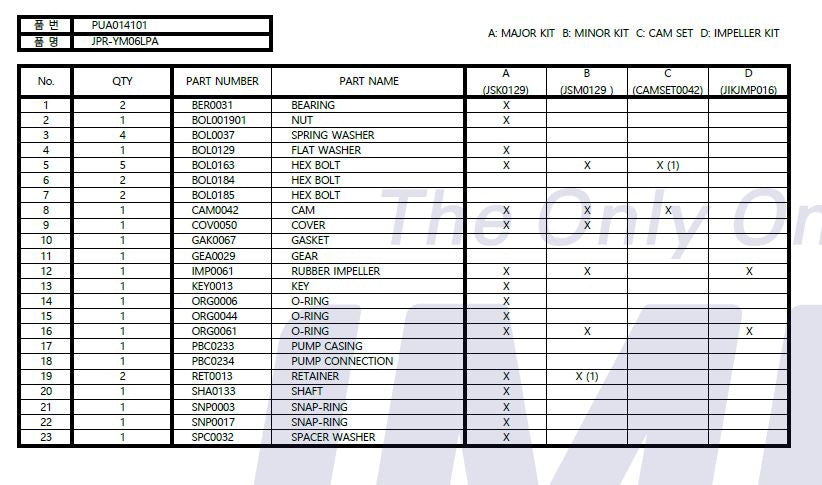

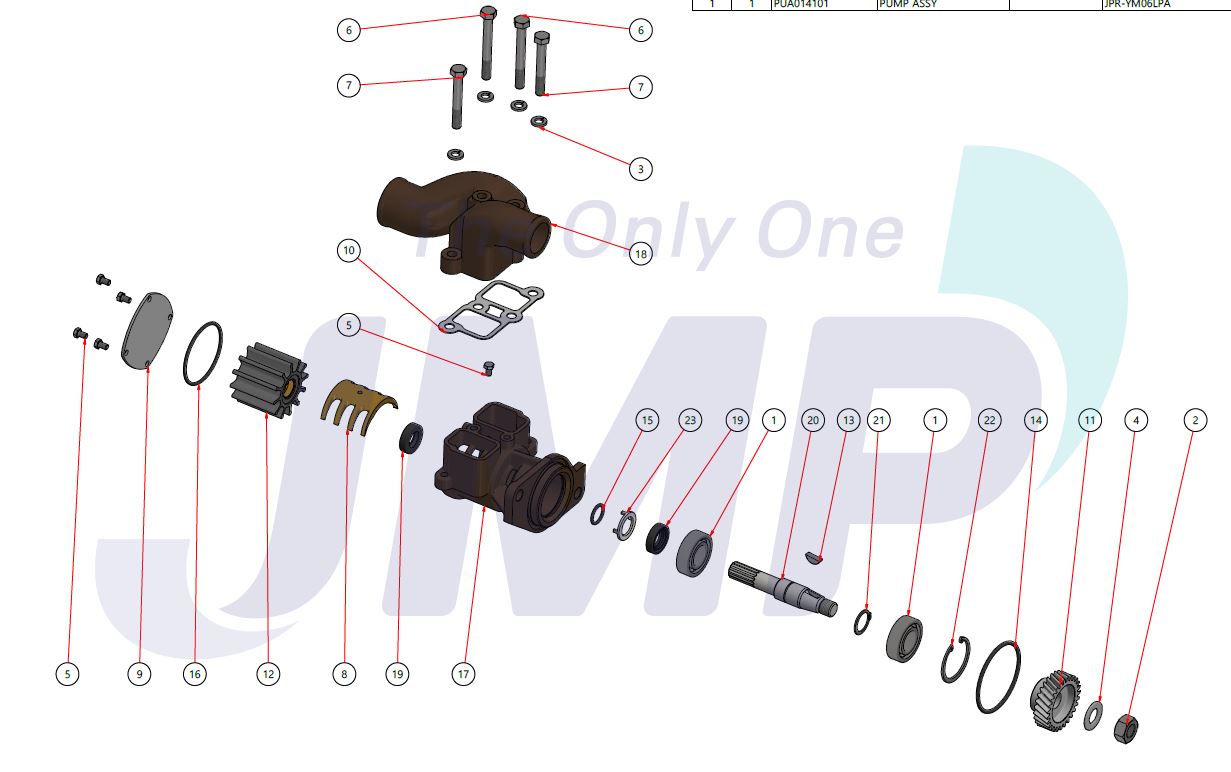

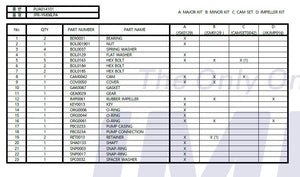

| Pos | Description | Yanmar Number |
Johnson Number |
Included Minor Kit |
Included Major Kit |
JMP Number |
|---|---|---|---|---|---|---|
| Seawater Pump | 119773-42502 | 10-24493-02 | JPR-YM06LPA | |||
| 24 | Minor Kit | N/A | JSM0129 | |||
| 25 | Major Kit | N/A | JSK0129 | |||
| 1 | Bearing | X0508511 | 0.3431.444 | ✔ | BER0031 | |
| 2 | Nut, Gear | 26736-140002 | ✔ | BOL001901 | ||
| 3 | Spring washer | x0502101000 | 0.0353.309 | ✔ | BOL0037 | |
| 4 | Washer, Gear | 22117-140000 | ✔ | BOL0129 | ||
| 5 | Hex screw, Cam | x0504174000(Cam) | 0.0279.033 | ✔ | ✔ | BOL0163 |
| 5-1 | Hex screw, End Cover | 119175-42620(Cover) | 0.0141.502 | ✔ | ✔ | BOL0163 |
| 6 | Hex bolt | X0504527000 | 0.0142.602 | ✔ | BOL0184 | |
| 7 | Hex bolt | X0504527 | 0.0142.601 | ✔ | BOL0185 | |
| 8 | Cam | X0146502000 | 01-46502 | CAM0042 | ||
| 8-1 | Cam Set (CAM0042, BOL0163) |
N/A | ✔ | ✔ | CAMSET0042 | |
| 9 | End Cover | 129670-42520 | 01-46535 | ✔ | ✔ | COV0050 |
| 10 | Gasket | 119787-42570 | 119787-42570 | ✔ | GAK0067 | |
| 11 | Gear | 119773-42520 | GEA0029 | |||
| 12 | Impeller | 119773-42600 | 08-812B | ✔ | ✔ | 7136-01 |
| 10 | Woodruff Key, Gear | 22522-050160 | ✔ | KEY0013 | ||
| 14 | O-ring (Mounting) | 24321-000650 | ORG0006 | |||
| 15 | O-ring (Slinger) | X0506501 | 0.2173.402 | ✔ | ✔ | ORG0044 |
| 16 | O-ring (End Cover) | 119773-42570 | 0.2173.475 | ✔ | ORG0061 | |
| 17 | Body, Sea Water Pump | N/A | 01-24491-1 | PBC0233 | ||
| 18 | Pump connection | 119773-42550 | 01-24492-1 | PBC0234 | ||
| 19 | Retainer | X0529105 | 0.2233.001 | ✔ | ✔ | RET0013 |
| 20 | Shaft | X0146268000 | 01-46268-2 | ✔ | SHA0133 | |
| 21 | Snap-ring | X0534107000 | 0.0370.020 | ✔ | SNP0003 | |
| 22 | Snap-ring | X0534507000 | 0.0371.042 | ✔ | SNP0017 |
