Yanmar 3JH3E, 4JH3E,/ -DTE and 4JH4-TE Seawater Pump 129670-42513 Replacement YM04JH01/JHA
by JMP
Original price
$990.00 AUD
-
Original price
$990.00 AUD
Original price
$990.00 AUD
$990.00 AUD
-
$990.00 AUD
Current price
$990.00 AUD

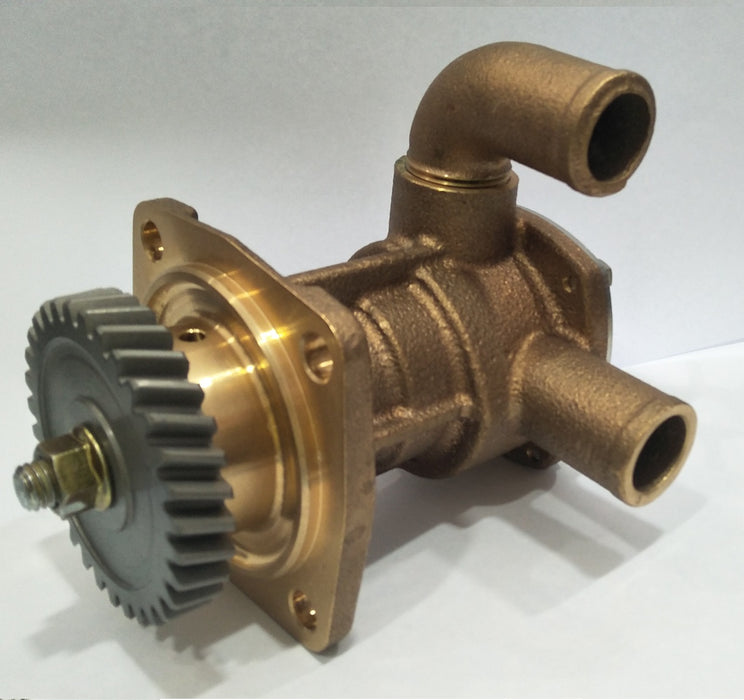

Yanmar 3JH3E 4JH3 - DTE and 4JH4 - TE Seawater Pump 129670-42513 Replacement
Suits Yanmar engines 3JH3E, 4JH3E Yanmar 4JH3 - DTE and Yanmar 4JH4 - TE
Replaces Yanmar 129670-42513 / 129670-42512/ 129670-42500
Replaces Johnson 10-24508-04
The pump includes Mounting gasket 129150-01881 should you require additional Gasket Please add it to your purchase.
This is a non-OEM, aftermarket pump JMP JPR-YM04JHA - See link for Product Video
All parts are interchangeable with Yanmar.

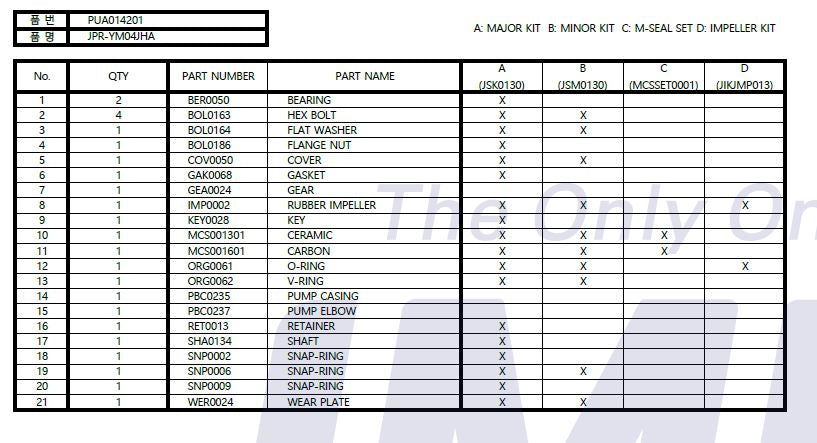

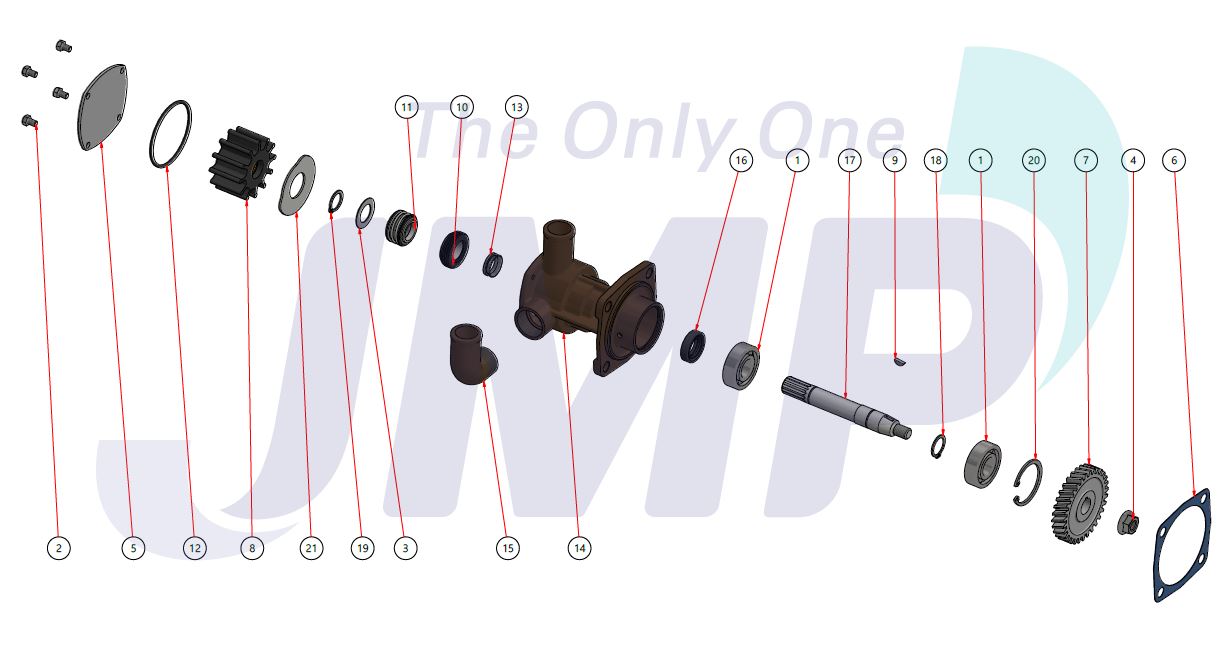

Pos |
Description |
Yanmar Number |
Johnson Number |
Included Minor Kit |
Included Major Kit |
JMP Number |
---|---|---|---|---|---|---|
Seawater Pump | 129670-42513 | 10-13328-04 | JPR-YM04JHA | |||
21 | Minor Kit | JSM0130 | ||||
22 | Major Kit | ✔ | JSK0130 | |||
1 | Bearing | X0508129 | 0.3431.483 | ✔ | BER0050 | |
2 | Hex screw, End Cover |
129271-42510 | 0.0138.987 | ✔ | ✔ | BOL0163 |
3 | Flat washer | 129670-42550 | 01-45680 | ✔ | ✔ | BOL0164 |
4 | Flange nut | X0505526 | 0.0190.001 | ✔ | BOL0186 | |
5 | End Cover | 129670-42520 | 01-46535 | ✔ | COV0050 | |
6 | Gear | 129670-42700 | 19-12967042700 | GEA0024 | ||
7 | Impeller | 129670-42531 | 08-1027B | ✔ | ✔ (with ORG0061) |
7100-01 |
8 | Key | 129670-42580 | 0.0503.010 | KEY0028 | ||
9 | Ceramic | N/A | MCS001301 | |||
10 | Carbon | N/A | ✔ | MCS001601 | ||
10-1 | Mechanical Seal Set (MCS001301, MCS001601) |
129670-42560 | 0.2247.050 | ✔ | ✔ | MCSSET0001 |
11 | O-ring, End Cover | 119773-42570 | 0.2173.475 | ✔ | ✔ | ORG0061 |
12 | O-ring (V-ring_Slinger) | 120650-42420 | 0.2230.015 | ✔ | ORG0062 | |
13 | Pump body | N/A | 01-24639-1 | PBC0235 | ||
14 | HOSE ELBOW | X01357681 | 01-35768-1 | ✔ | PBC0237 | |
15 | Retainer | X0529105 | 0.2233.001 | ✔ | RET0013 | |
16 | Shaft | X0146531 | 01-46531 | ✔ | SHA0134 | |
17 | Snap-ring | 120650-42380 | 0.0370.017 | ✔ | SNP0002 | |
18 | Snap-ring | 129670-42570 | 0.0370.516 | ✔ | ✔ | SNP0006 |
19 | Snap-ring | 120650-42350 | 0.0371.040 | ✔ | SNP0009 | |
20 | Wear Plate | 129670-42540 | 0.0371.040 | ✔ | ✔ | WER0024 |
