Yanmar 4JH3, 4JH4 129673-13551 Stainless Steel Mixing Elbow Replacement- HDI L3 ( Offset water intake )

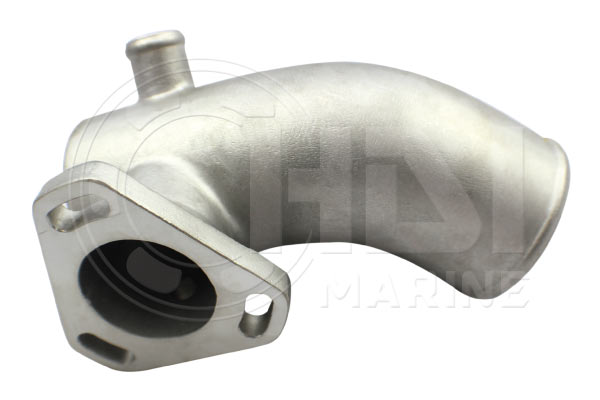

Yanmar 4JH3, 4JH4 Stainless Steel Mixing Elbow Replacement

Precision CNC machined investment cast 316 stainless steel

Replaces 129671-13552, 129671-13551,

Suits Yanmar 4JH4-HTE1 / 4JH4-HTE / 4JH3-HTE / 4JH3-DTE / 4JF57 / 4JH80 / 4JH110

Water Inlet: 25mm (1") ( Offset Water INLET - to mounting flange)**
Exhaust Outlet: 76mm (3")

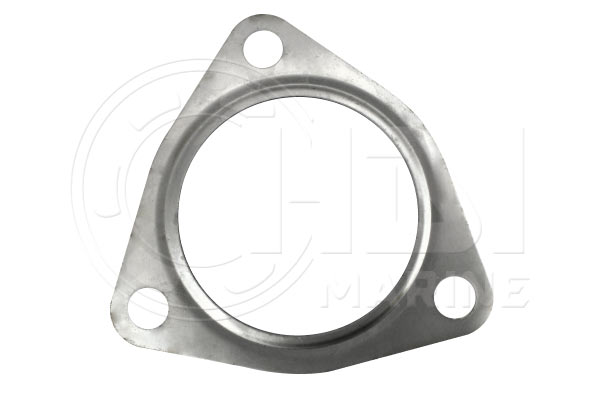

Includes Gasket that Replaces Yanmar 129472-13520 & The Plug with washer

*THIS IS A VERY COMPARABLE MIXING ELBOW TO ANOTHER THAT FITS OTHER 4JH MODELS WITHOUT AFTER COOLER  ENGINES YN P/N 129671-13550 / 129673-13552  FOR THIS TYPE REFER HDI L3P - PARALLEL  WATER INLET

****PLEASE DOUBLE CHECK THE POSITION OF THE WATER-IN BARB WITH YOUR OEM PART****

This is a HDI Marine part number HDI L3

Product weight: 2kg, boxed weight 2.5kg.
