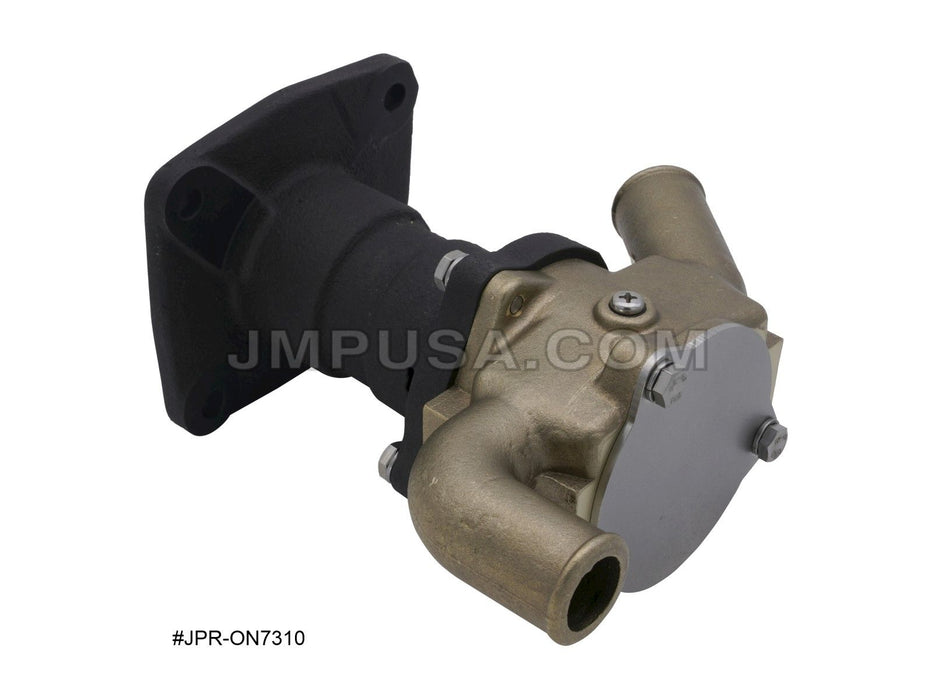

Sherwood G1010 Replacement Seawater Pump Onan 132-0356, 132-0414, 132-0413, 132-0350 / Cummins A029U129
by JMP Marine
Original price
$935.00 AUD
-
Original price
$935.00 AUD
Original price
$935.00 AUD
$935.00 AUD
-
$935.00 AUD
Current price
$935.00 AUD
Onan Gen Sherwood G1010 Replacement Aftermarket JMP-ON7310 Brand Seawater Pump
Sherwood G1006 & 1008 is replaced by G1010, G-1010
Onan 132-0356, 132-0414, 132-0413, 132-0350 is replaced by G-1010. Cummins part number A029U129
Used on Onan MDKBP MDKBR MDKBS MDKAD, MDKAE, MDKDP/DR/DV
Pump Mounting Gasket not included - Click here to add gasket 0132-0346.
This is a Aftermarket JMP Brand Pump SKU - JPR-ON7310. See link for pump Detail Video
Pump Parts:
| JMP | SHERWOOD |
DESCRIPTION | QTY | REMARK |
|---|---|---|---|---|
| BER0046 | BALL BEARING | 2 | ||
| BOL0035 | SPRING WASHER |
6 |
||
| BOL0048 | HEX BOLT | 3 | ||
| BOL0128 | HEX BOLT | 3 | ||
| CAMSET0050 | CAM SET |
1 | ||
| COV0073 | END COVER | 1 | ||
|
7300-01 |
10615K |
IMPELLER KIT | 1 | |
| MCSSET0017 | 22117 |
MECHANICAL SEAL SET | 1 | |
| ORG0039 | 0-RING | |||
| ORG0044 | 0-RING | |||
| SNP0002 | SNAP RING | |||
| RET0019 | 25067 | OIL SEAL | 1 | |
| SHA0188 | SHAFT | 1 | ||
| SNP0006 | SNAP RING | |||
| SPC0019 | SPACE | |||
| SPC0045 | SPACE | |||
| WER0032 | WEAR PLATE | 1 | ||
| JSM0161 | MINOR KIT | 1 | ||
| JSK0156 | MAJOR KIT | 1 | ALL INTERNAL PARTS |
