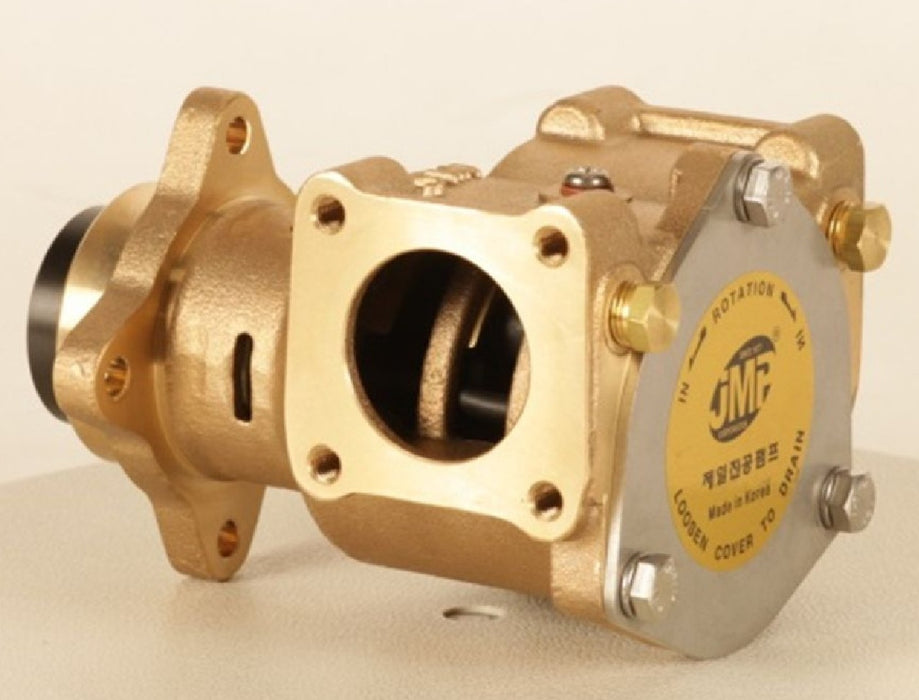

Cummins QSB Seawater Pump (Sherwood P2701, P2706, P2708) replacement JMP JPR-S7608
Replacement raw water cooling pump for Cummins Engines:
Cummins QSB 5.9, QSB 6.9, QSB 6.7 (newer models)
Upgraded shaft and seal for spline type impeller.
Replaces Cummins Pump 3922589 (Old style Sherwood 17000 keyway impeller pump)
Replaces Cummins Pump 5268375 / 4948142 / 3974455 (newer Sherwood 27000 spline impeller pump).
Replaces Sherwood Pump P/N P2701X, P2702-01, P2706-01, P2708X, P2710-01
This is a JMP Marine Pump JPR-S7608 See link for pump Deial video
JMP JPR-S7608 Pump Parts (design improvements made - not interchangeable with original pump parts):
For the original SHERWOOD mechanical seal please refer (to our search function) numbers 15955 or 25115 Note there are 2 types of seals.
- Wear plate refer Sherwood 24162 our number AN 6238
This is a JMP Marine Part JPR-S7608.

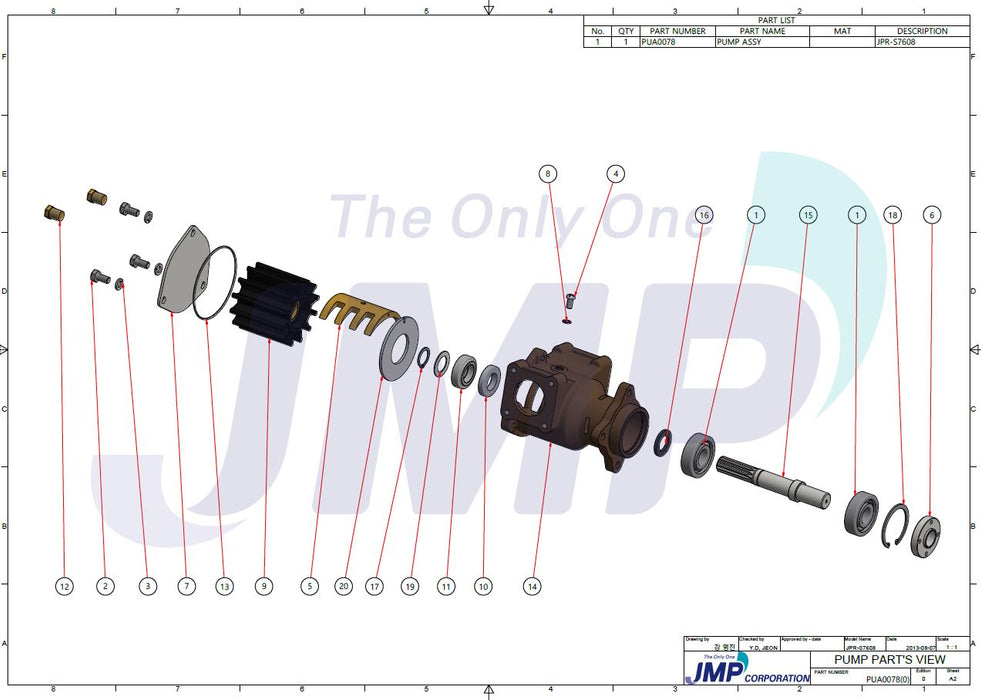

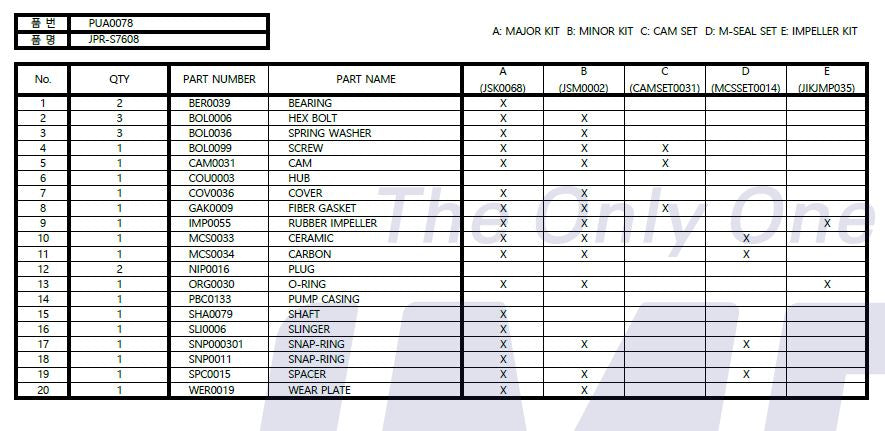

PUMP PARTS:
| JMP | DESCRIPTION | QTY | REMARK |
|---|---|---|---|
| JPR-S7608 | SEA WATER PUMP | 1 | RE-ENGINEERED |
| BER0039 | BALL BEARING | 2 | |
| BOL0006 | BOLT, END COVER | 3 | |
| BOL0036 | SPRING WASHER | 3 | |
| CAMSET0031 | CAM SET | 1 | WITH SCREW, PACKING |
| COV0036 | END COVER | 1 | |
| 7608-01 | IMPELLER | 1 | |
| MCSSET0014 | MECHANICAL SEAL SET | 1 | |
| ORG0030 | O-RING, END COVER | 1 | |
| SHA0079 | SHAFT | 1 | |
| SNP0011 | SNAP RING | 1 | |
| WER0019 | WEAR PLATE | 1 | |
| JSM0002 | MINOR KIT | ||
| JSK0068 | MAJOR KIT | 1 | ALL INTERNAL PARTS |
