Minor Service Kit for Volvo Penta D4 Engine Seawater Pump -21419374 (Fits Volvo Penta Engines: D4-225A-E, D4-260A-E, D4-260D-E, D4-300A-E, D4-300D-E)
by Service Kits
Original price
$264.00 AUD
-
Original price
$264.00 AUD
Original price
$264.00 AUD
$264.00 AUD
-
$264.00 AUD
Current price
$264.00 AUD
Service Kit for Volvo Penta D4 Engine Seawater Pump
Suitable for Volvo Penta Seawater Pump 2149374 used on Volvo Penta D4 Series Engines.
Suitable for JMP Pump JPR-VP0040DB.

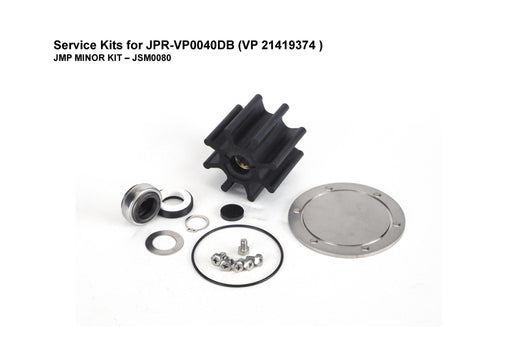

Minor Service Kit. For Major Service Kit use JMP-JSK0098

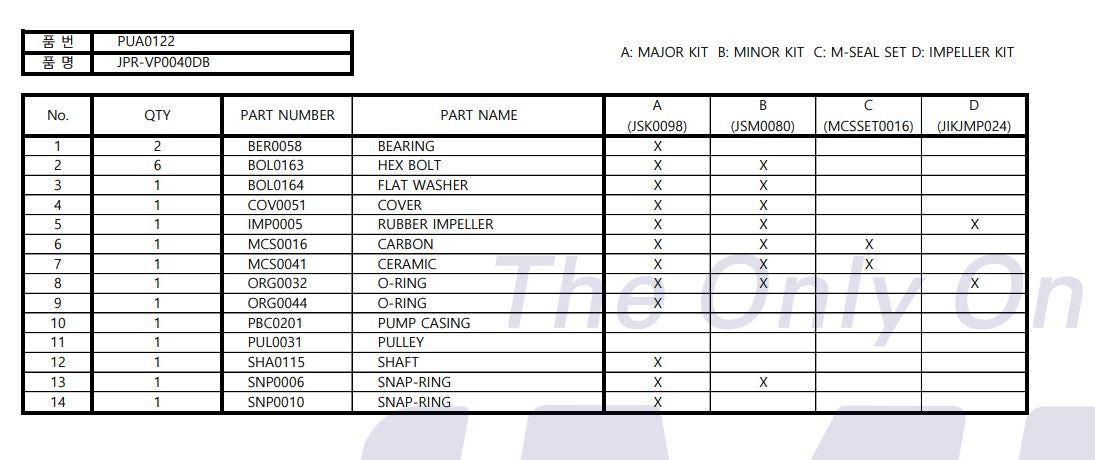

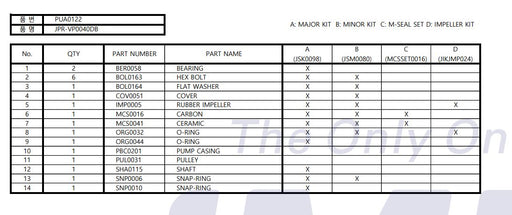

Kit Contents: Interchangeable with Volvo Penta parts

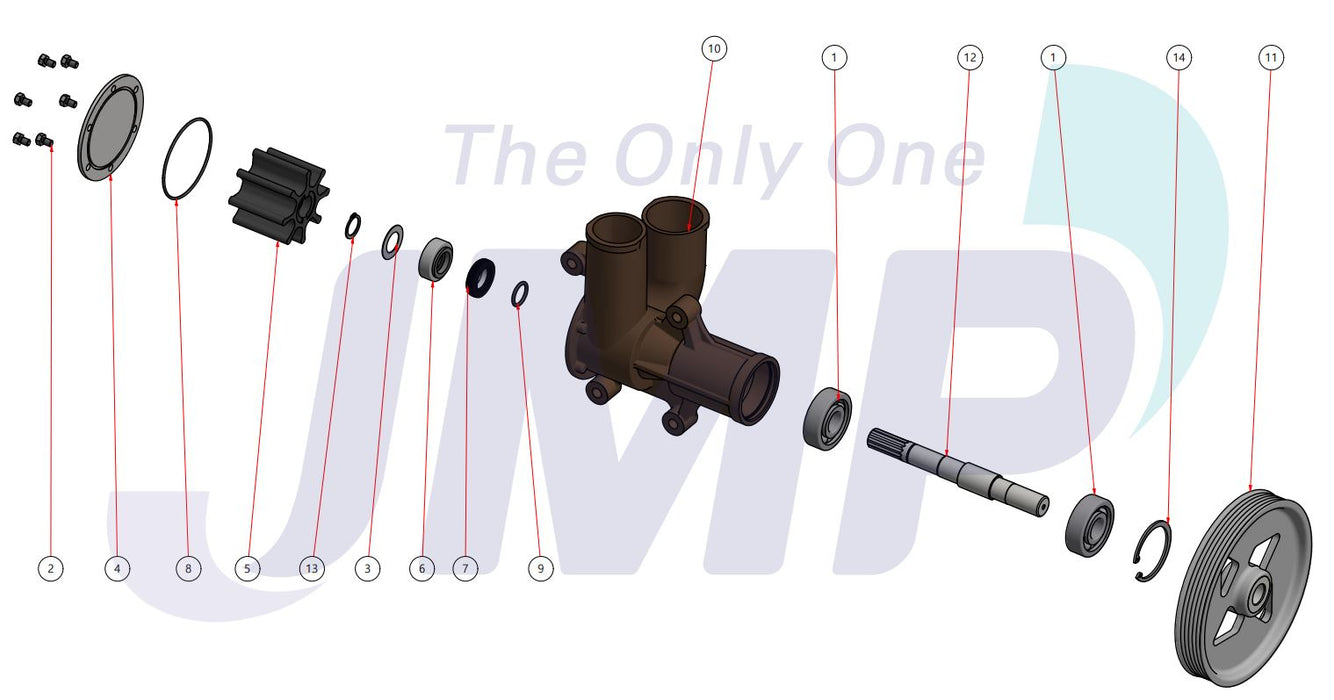

| No | Description | Qty | Volvo Penta | Compatibility | JMP Number | In Kit |
|---|---|---|---|---|---|---|
| Sea water pump | 1 | 21419374 | Yes | JPR-VP0040DB | ||
| 1 | Ball Bearing | 2 | 21422638 | Yes | BER0058 | |
| 2 | Screw, End Cover | 6 | 21346724 | Yes | BOL0163 | ✔ |
| 3 | Washer | 1 | 3583988 | Yes | BOL0164 | ✔ |
| 4 | End Cover | 1 | 3581617 | Yes | COV0051 | ✔ |
| 5 | Impeller Kit | 1 | 21422647 | Yes | 7400K | ✔ |
| Impeller | 1 | 3581618 | Yes | 7400-01 | ✔ | |
| O-ring, End Cover | 1 | 21379134 | Yes | ORG0032 | ✔ | |
| 6 | Mechanical Seal | 1 | 960166 | Yes | MCSSET0016 | |
| 7 | O-ring, Slinger | 1 | N/A | Yes | ORG0044 | |
| 8 | Pulley | 1 | 21422634 | Yes | PUL0031 | |
| 9 | Shaft | 1 | 809444 | Yes | SHA0115 | ✔ |
| 10 | Snap-Ring (Small) | 1 | 21422642 | Yes | SNP0006 | |
| 11 | Snap-Ring (Large) | 1 | N/A | Yes | SNP0010 | |
| 12 | Service Kit - Minor | 1 | N/A | Yes | JSM0080 | |
| 13 | Service Kit - Major | 1 | Yes | JSK0098 |
