JMP-JSK0093 MAJOR KIT FOR JMP PUMP JPR-VP0020DB-3583089 Fits Volvo Penta Engines: D2-55 A-F, D2-75 A,B,C,F)
by JMP Marine
Original price
$407.00 AUD
-
Original price
$407.00 AUD
Original price
$407.00 AUD
$407.00 AUD
-
$407.00 AUD
Current price
$407.00 AUD
JMP-JSK0093 MAJOR SERVICE KIT FOR JMP PUMP MODEL JPR-VP0020DB-3583089
Kit includes the following items interchangeable with Volvo Penta P/N

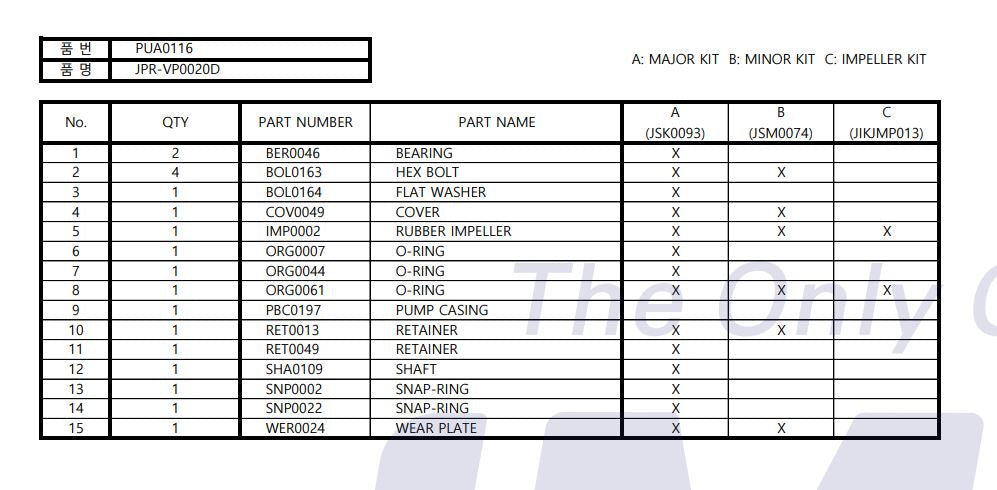

| No | Description | Qty | Volvo Penta | Compatibility | JMP Number | In Kit |
|---|---|---|---|---|---|---|
| Sea Water Pump | 1 | 3583089 | Yes | JPR-VP0020D | ||
| 1 | Ball Bearing | 2 | 860202 | Yes | BER0046 | ✔ |
| 2 | Screw, End Cover | 4 | 3885957 | Yes | BOL0163 | ✔ |
| 3 | Washer | 1 | 3583988 | Yes | BOL0164 | ✔ |
| 4 | End Cover (STS) | 1 | 3583985 | Yes | COV0049 | ✔ |
| 5 | Impeller Kit | 1 | 21951346 | Yes | 7100K | ✔ |
| Impeller | N/A | Yes | 7100-01 | |||
| O-ring, End Cover | 1 | 3583809 | Yes | ORG0061 | ✔ | |
| 6 | Slinger (O-ring) | 1 | 925057 | Yes | ORG0044 | ✔ |
| 8 | Lip Seal (STS) | 1 | 3583987 | Yes | RET0013 | ✔ |
| 9 | Oil Seal | 1 | 3583992 | Yes | RET0049 | ✔ |
| 10 | Shaft | 1 | N/A | Yes | SHA0109 | ✔ |
| 11 | Snap ring (Small) | 1 | 914451 | Yes | SNP0002 | ✔ |
| 12 | Snap ring (Large) | 1 | 3583991 | Yes | SNP0022 | ✔ |
| 13 | Wear Plate (STS) | 1 | 3583990 | Yes | WER0024 | ✔ |
| 14 | Service Kit - Minor | 1 | N/A | Yes | JSM0074 | |
| 15 | Service Kit - Major | 1 | N/A | Yes | JSK0093 |
