Major Service Kit for Volvo Penta D1/D2 Seawater Pump 3593655 - JSK0092
by Service Kits
Original price
$363.00 AUD
-
Original price
$363.00 AUD
Original price
$363.00 AUD
$363.00 AUD
-
$363.00 AUD
Current price
$363.00 AUD
Major repair kit for Volvo Penta Seawater Pump 3593655 used on Volvo Penta D1/D2 Series Engines and JMP Marine pump JPR-VP0010D-02.
Volvo Penta Engines: D1-30A/B/F, D2-40A/B/F, MD2010, MD2020, MD2030, MD2040
Major kit. For minor service kit, use JSM0073.

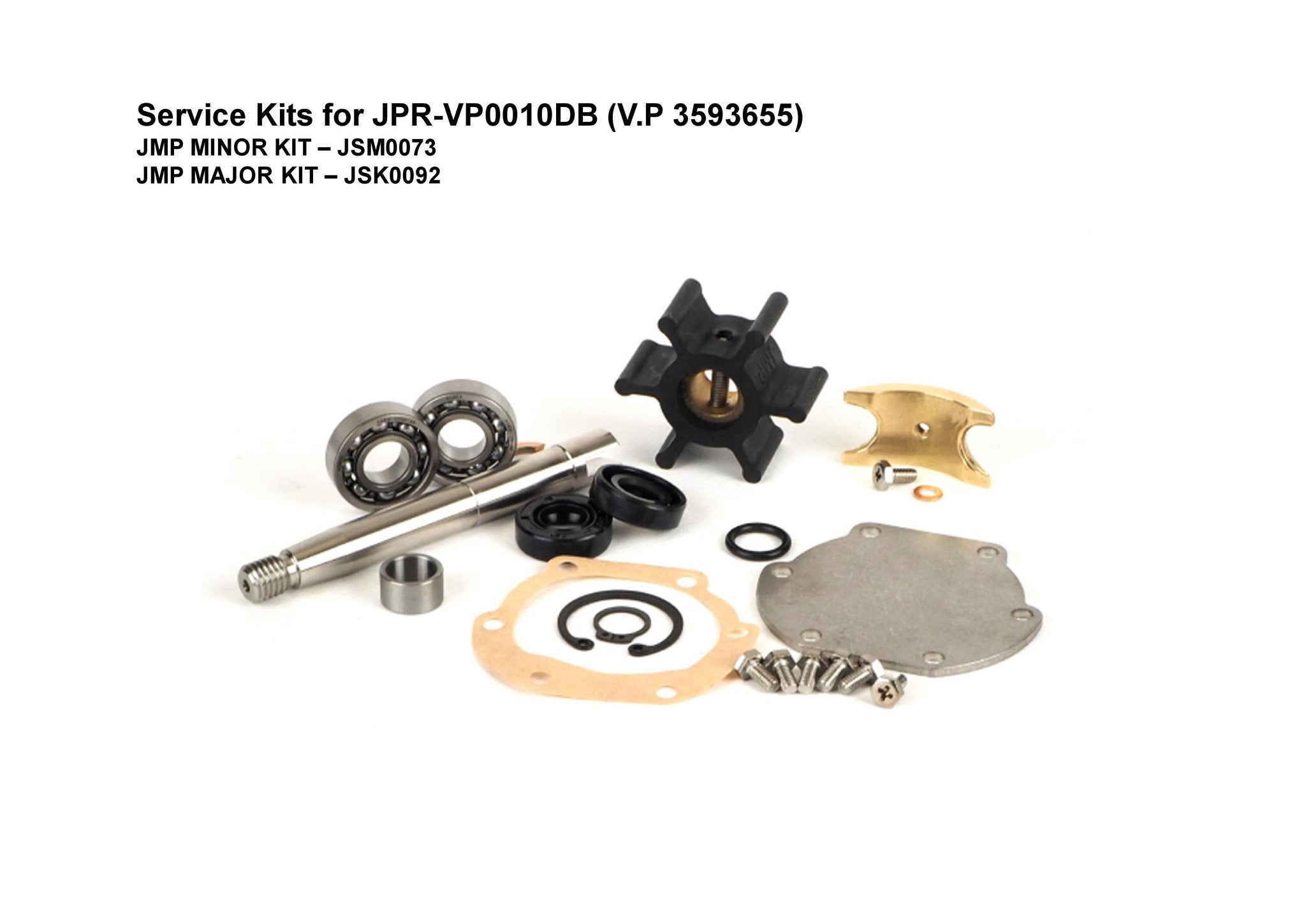

Kit Contents: Interchangeable with Volvo Penta parts.
Please note the following on the shaft & bearings in this kit:

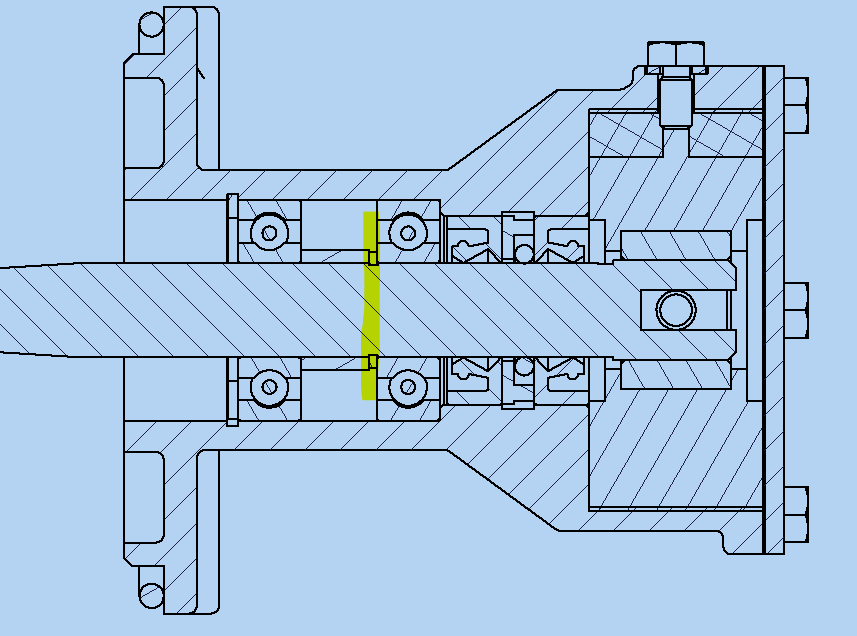

The shaft is made to a loose fit tolerance for ease of assembly. It is not a problem if the bearings slip on the shaft during assembly. the snap ring (marked in yellow) securely holds the parts in place.
If you are concerned, we recommend using Loctite 609 or ThreeBond 1377B as a solution.
This is a JMP Marine part JSK 0092.

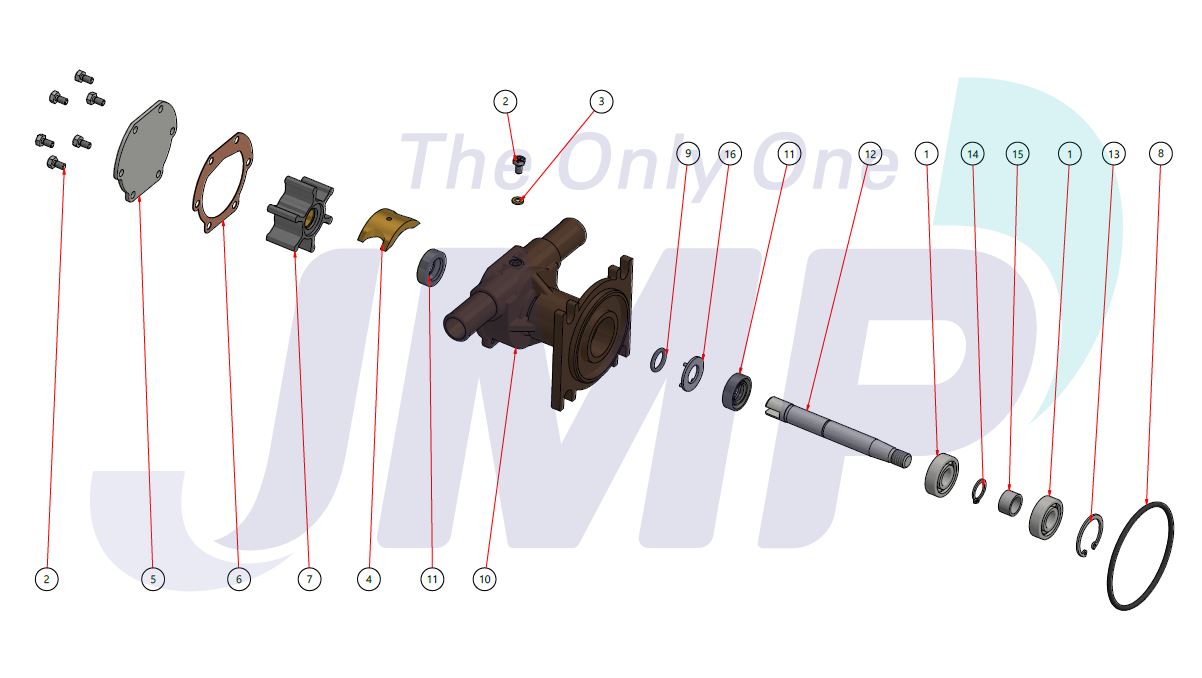

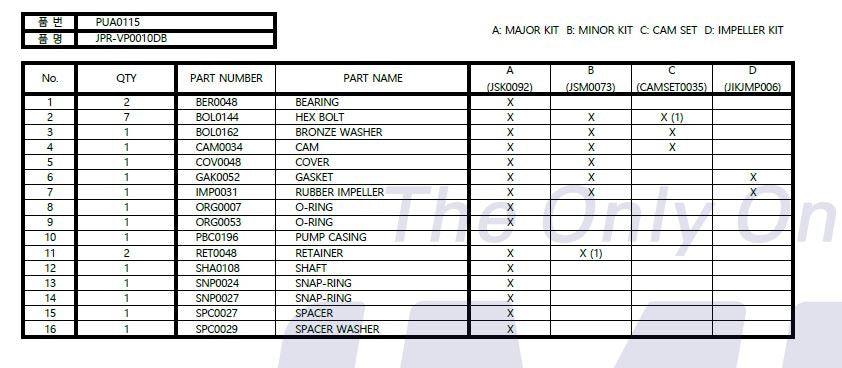

| No | Description | Qty | Volvo Penta | Compatibility | JMP Number | In Kit |
|---|---|---|---|---|---|---|
| Sea Water Pump Assy | 1 | 3593655 | Yes | JPR-VP0010DB | ||
| 1 | Ball Bearing | 2 | 181717 | Yes | BER0048 | ✔ |
| 2 | Screw, End Cover | 6 | 840384 21951302 | Yes | BOL0144 | ✔ |
| 3 | Cam Set | 1 | 827009 | Yes | **CAMSET0035 | ✔ |
| Cam | 1 | 981749 | Yes | *CAM0034 | ✔ | |
| Screw, Cam | 1 | 18669 | Yes | *BOL0144 | ✔ | |
| Washer, Cam | 1 | 840386 | Yes | *BOL0162 | ✔ | |
| 4 | End Cover (STS) | 1 | 3593659 | Yes | COV0048 | ✔ |
| 5 | Impeller Kit | 1 | 840385 | Yes | **7051K | ✔ |
| Impeller | 1 | 925055 | Yes | *7051-01 | ✔ | |
| Gasket, End Cover | 1 | 3580063 | Yes | GAK0052 | ✔ | |
| 6 | Slinger (O-ring) | 1 | 833996 | Yes | ORG0053 | ✔ |
| 7 | O--ring (Mounting) | 1 |
3580380 |
Yes | ORG0056 | |
| 8 | Lip Seal | 2 | 914515 | Yes | RET0048 | ✔ |
| 9 | Shaft | 1 | 914446 | Yes | SHA0108 | ✔ |
| 10 | Snap-Ring(Large) | 1 | 3581367 | Yes | SNP0024 | ✔ |
| 11 | Sanp Ring(Small) | 1 | 859101 | Yes | SNP0027 | ✔ |
| 12 | Spacer Sleeve | 1 | 3581367 | Yes | SPC0027 | ✔ |
| 13 | Spacer Washer | 1 | N/A | Yes | SPC0029 | ✔ |
| 14 | Service Kit - Minor | 1 | Yes | JSM0073 | ||
| 15 | Service Kit - Major | 1 | Yes | JSK0092 |
