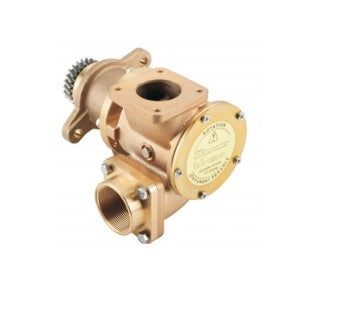

Hyundai Seasall H Series Seawater Pump JMP JPR-HDS500
by JMP
Original price
$0.00 AUD
-
Original price
$0.00 AUD
Original price
$0.00 AUD
-
$0.00 AUD
Current price
This is a non-OEM, aftermarket pump JMP JPR-HDS500
Dimensions:
| Inlet | Outlet | Size (LxWxH) | Weight | Notes |
|---|---|---|---|---|
| 2" | 2" | 250 x 172 x 147 | 10.5 kgs |
Pump Parts:
| JMP | OEM | Description | Qty | Notes |
|---|---|---|---|---|
| 8326-01 | Impeller | 1 | ||
| JSM0065 | Minor Kit | 1 | ||
| JSK0063 | Major Kit | 1 | ||
| BER0005 | Bearing Drive | 1 | ||
| BER0005 | Bearing Seal | 1 | ||
| BOL0081 | Screw | |||
| CAMSET0030 | Camset | 1 | ||
| COV0005 | End Cover | 1 | ||
| ORG0015 | Cover Gasket | 1 | ||
| KEY0013 | Key | 1 | ||
| MCSSET0003 | Seal | 1 | ||
| N/A | Retainer Drive | 1 | ||
| RET001301 | Retainer Seal | 1 | ||
| SHA0071 | Shaft | 1 | ||
| SLI0003 | Slinger | 1 | ||
| N/A | Snap Ring Seal | 1 | ||
| SNP0013 | Snap Ring Drive | 1 | ||
| WER0018 | Wear Plate | 1 | ||
| GEA0013 | Clutch / Drive | 1 |
