JMP JPR-D4010 used on DOOSAN L136T/136TL/086TI -PN 65.06800-7005
by JMP
Original price
$2,156.00 AUD
-
Original price
$2,156.00 AUD
Original price
$2,156.00 AUD
$2,156.00 AUD
-
$2,156.00 AUD
Current price
$2,156.00 AUD

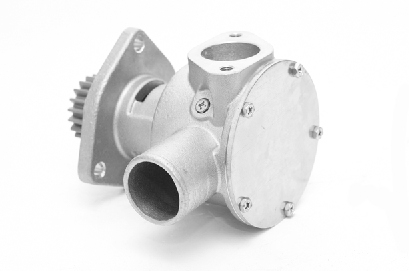

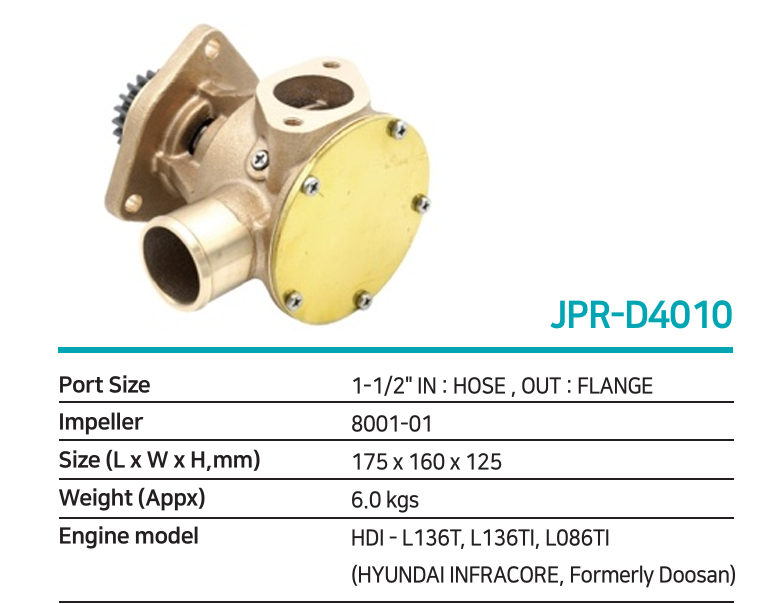

This is a non-OEM, aftermarket pump JMP JPR-D4010
used on DOOSAN L136T/136TL/086TI
PN 65.06800-7005

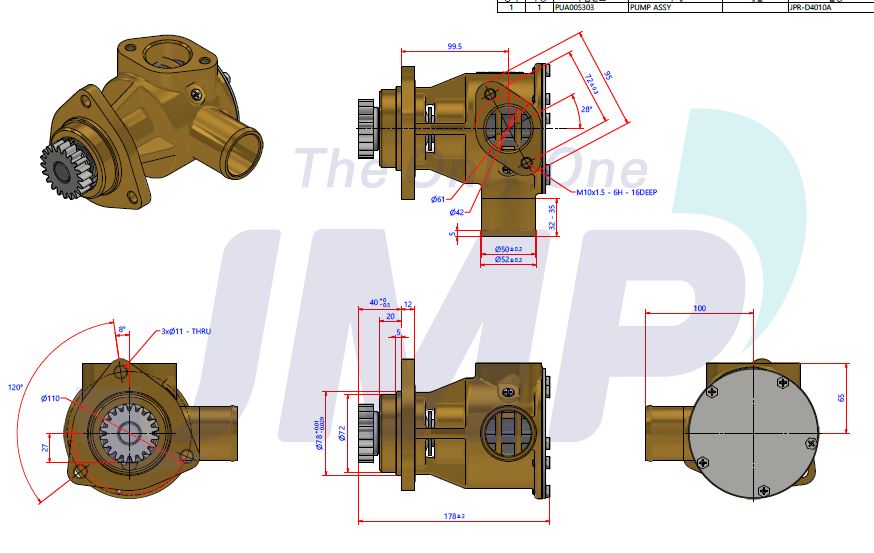

Dimensions:
| Inlet | Outlet | Size (LxWxH) | Weight | Notes |
|---|---|---|---|---|
| 1-1/2" | 1-1/2" | 175 x 160 x 125 | 6.0 kgs |

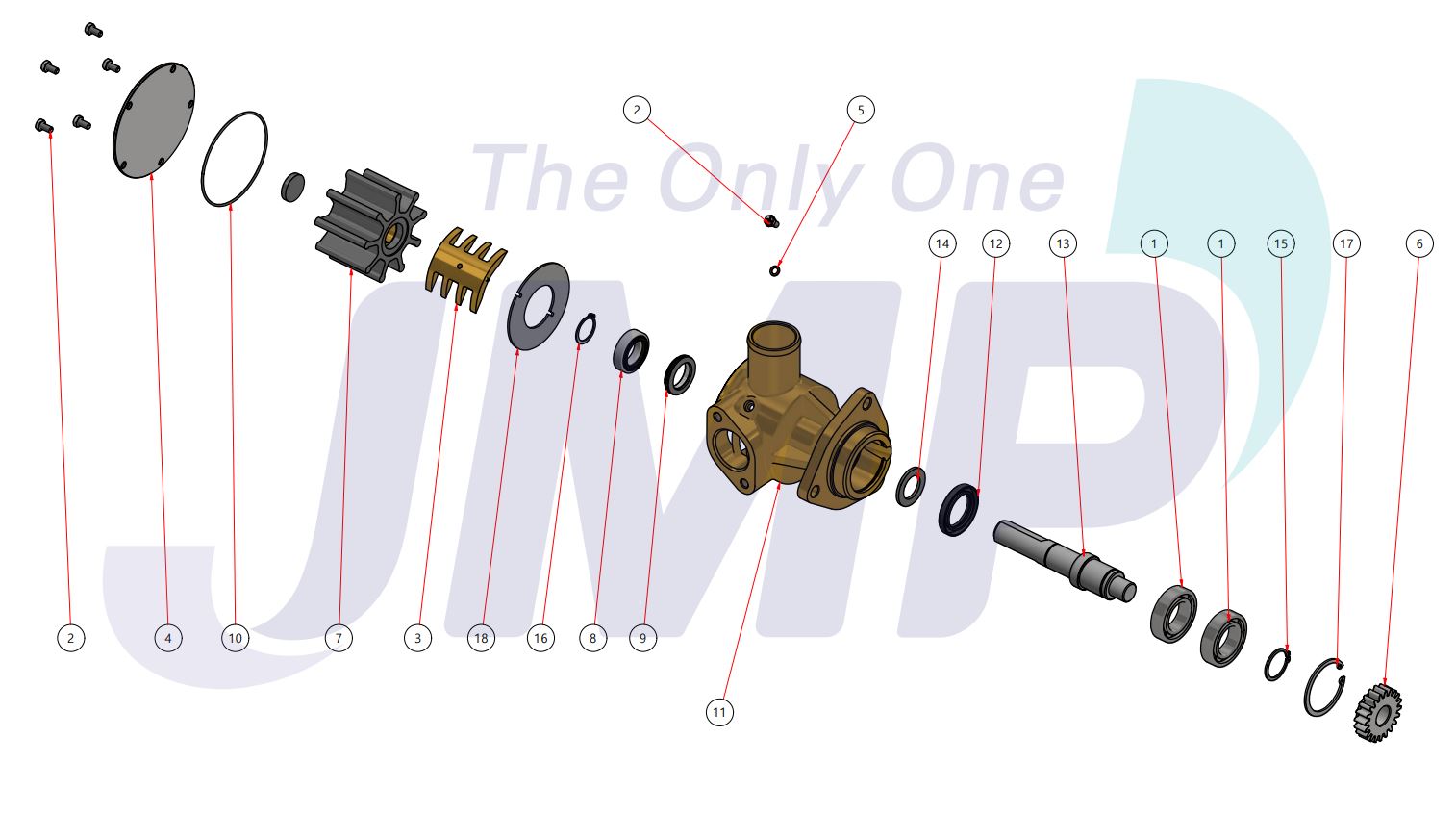

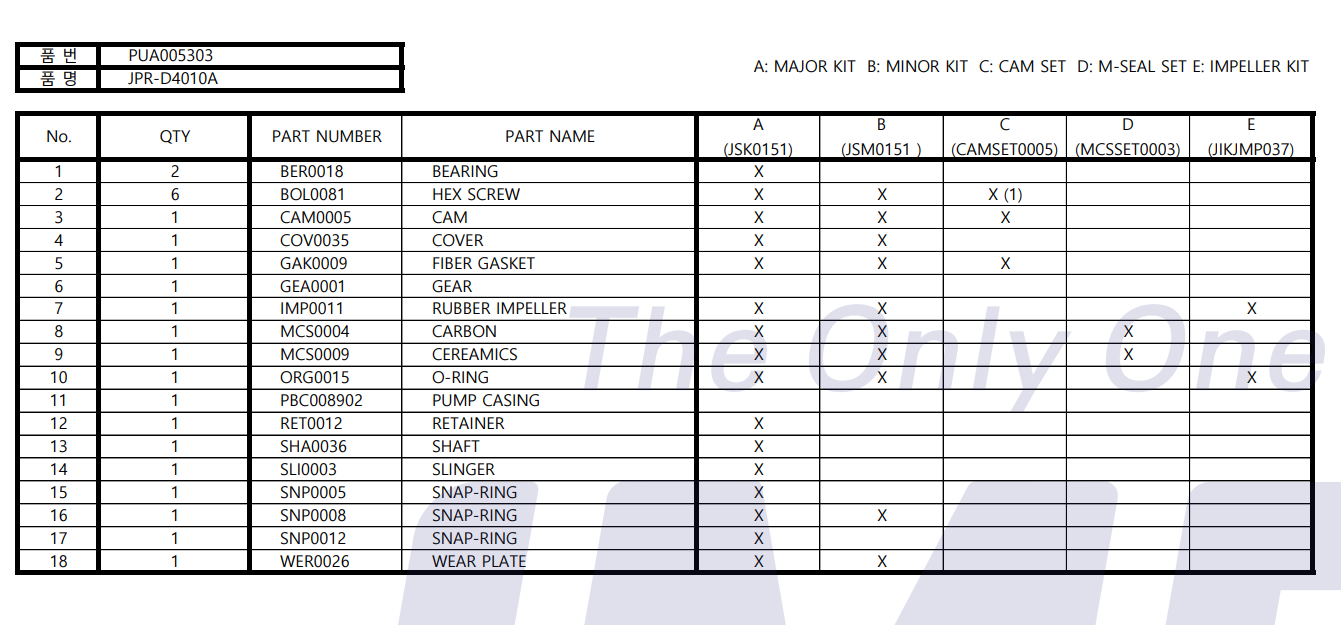

Pump Parts:
| JMP | OEM | Description | Qty | Notes |
|---|---|---|---|---|
| 8001-01 | Impeller | 1 | ||
| JSM0038 | Minor Kit | 1 | ||
| JSK0038 | Major Kit | 1 | ||
| BER0018 | Bearing Drive | 1 | ||
| BER0018 | Bearing Seal | 1 | ||
| BOL0081 | Screw | |||
| CAMSET0005 | Camset | 1 | ||
| COV0005 | End Cover | 1 | ||
| ORG0015 | Cover Gasket | 1 | ||
| N/A | Key | 1 | ||
| MCSSET0003 | Seal | 1 | ||
| N/A | Retainer Drive | 1 | ||
| RET0012 | Retainer Seal | 1 | ||
| SHA0036 | Shaft | 1 | ||
| SLI0003 | Slinger | 1 | ||
| SNP0008 | Snap Ring Seal | 1 | ||
| SNP0012 | Snap Ring Drive | 1 | ||
| WER0003 | Wear Plate | 1 | ||
| Clutch / Drive | 1 |
