Cummins KTA19, QSK19 Seawater Pump 3866609 Replacement JMP C1905
by JMP
Original price
$7,150.00 AUD
-
Original price
$7,150.00 AUD
Original price
$7,150.00 AUD
$7,150.00 AUD
-
$7,150.00 AUD
Current price
$7,150.00 AUD

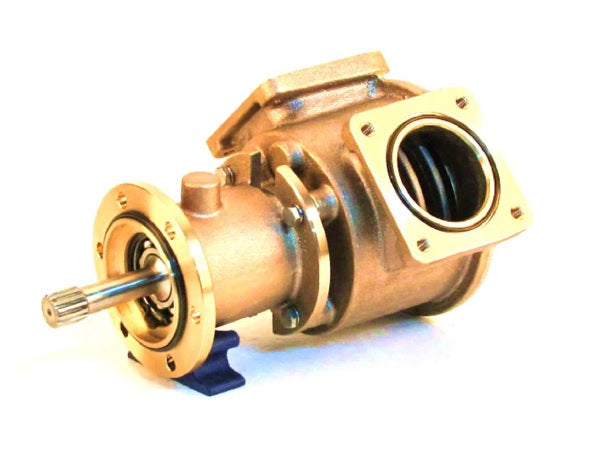

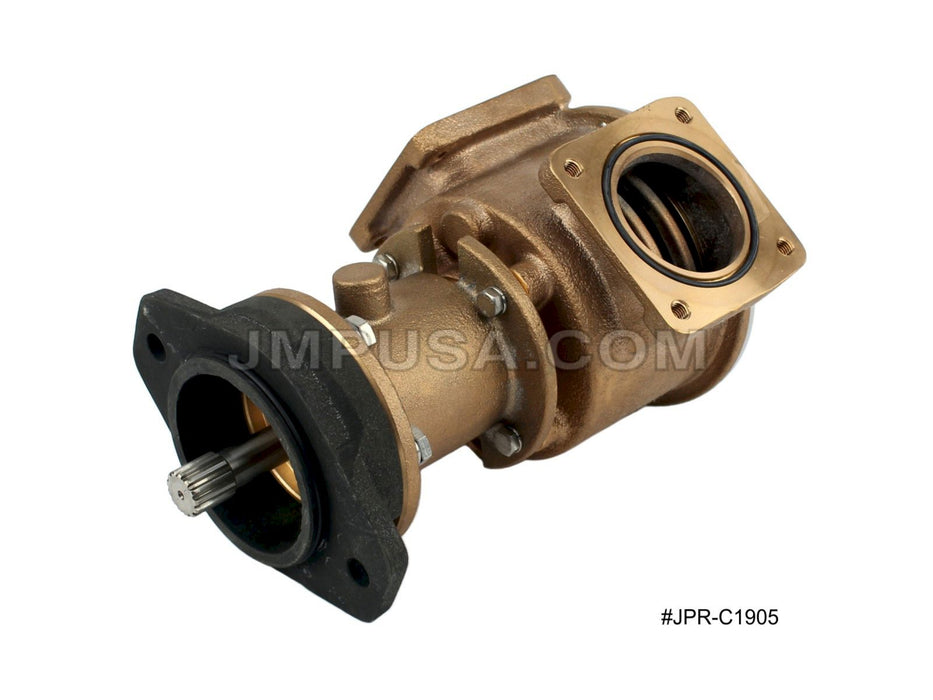

Raw water pump for Cummins KTA19 & QSK19 marine engines.
Replaces Cummins Seawater Pump 3866609. / Jabsco 18770-003
Mounting seal o ring provided on pump
For Gilkes style pump, see Cummins 3049158 JMP C1900.
This is a non-OEM, aftermarket part JMP JPR-C1905. See link for Pump Detail Video

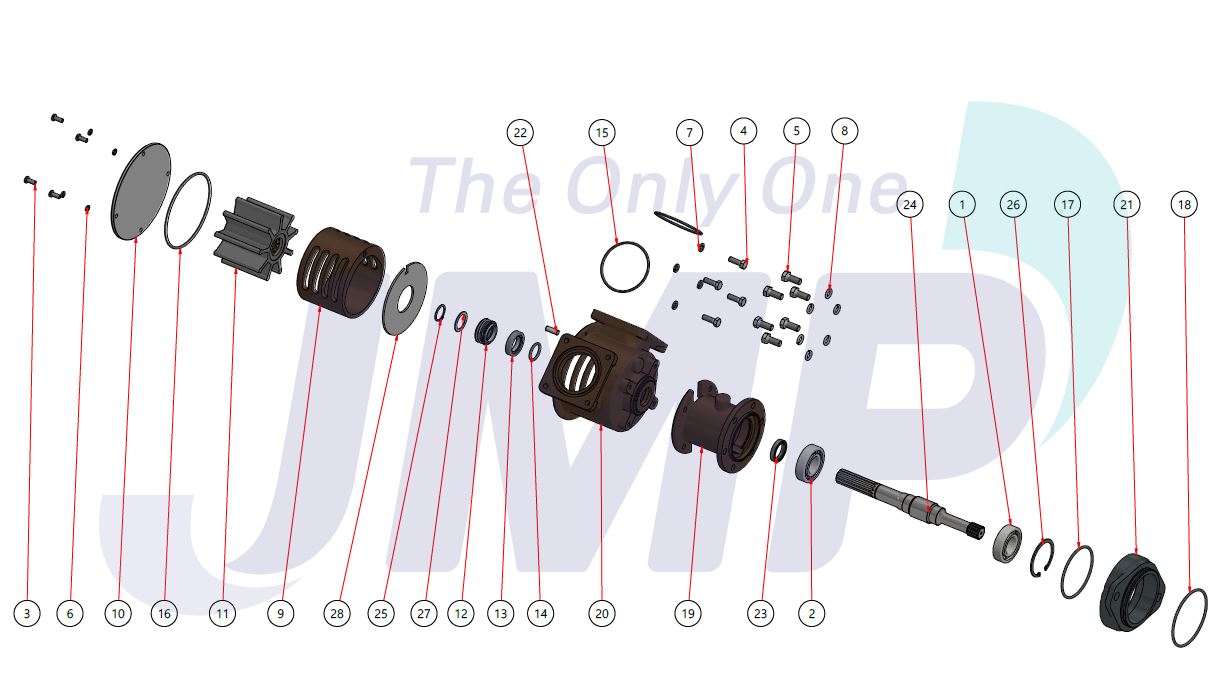

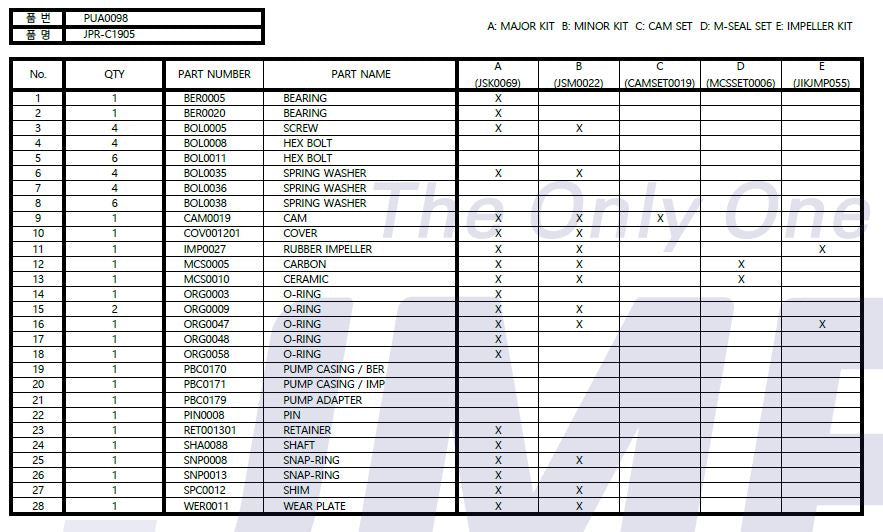

Pumps Parts:
| JMP | DESCRIPTION | QTY | REMARK |
|---|---|---|---|
| JPR-C1905 | SEA WATER PUMP | ||
| BER0005 | BALL BEARING | 1 | |
| BER0020 | BALL BEARING | 1 | |
| BOL0005 | HEX BOLT, END COVER | 4 | |
| BOL0035 | SPRING WASHER. END COVER | 4 | |
| CAMSET0019 | CAM LINER - ALUMINUM BRONZE | 1 | CUMMINS - PLASTIC |
| COV001201 | END COVER | 1 | |
| 9001-01 | IMPELLER | 1 | |
| MCSSET0006 | MECHANICAL SEAL SET | 1 | |
| ORG0047 | O-RING, END COVER | 1 | |
| ORG0003 | O-RING | 1 | |
| ORG0048 | O-RING, MOUNTING | 1 | |
| PIN0008 | DOWEL PIN | 1 | |
| RET001301 | OIL SEAL | 1 | |
| SHA0088 | SHAFT | 1 | |
| SNP0008 | SNAP RING | 1 | |
| SNP0013 | SNAP RING | 1 | |
| SPC0012 | SPACER | 1 | |
| WER0011 | WEAR PLATE | 1 | |
| GEA0015 | GEAR | 1 | |
| JSM0022 | MINOR KIT | 1 | |
| JSK0069 | MAJOR KIT | 1 | ALL INTERNAL PARTS |
