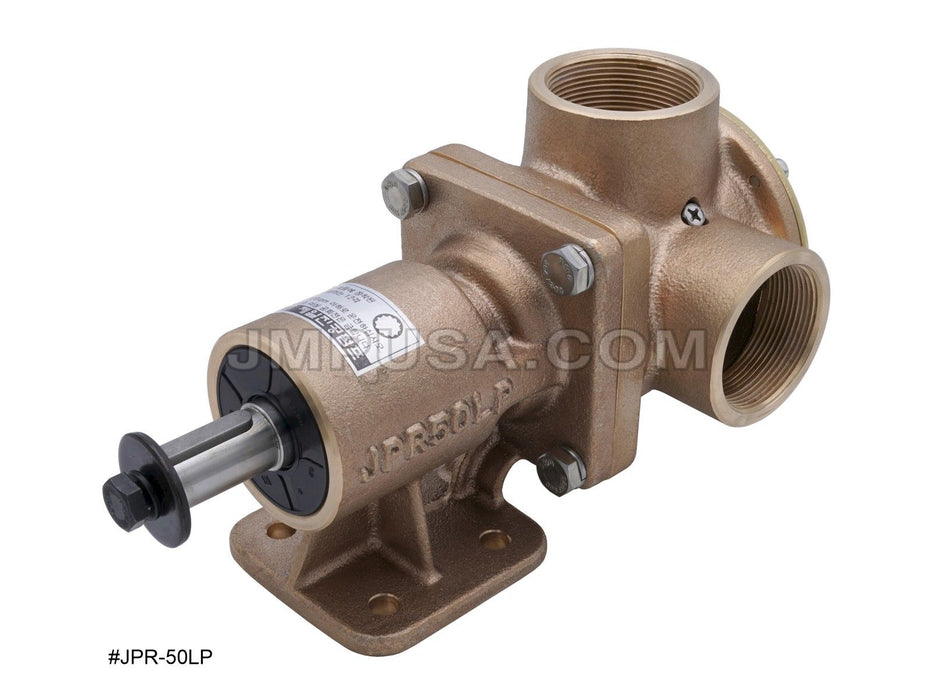

2" NPT General Multi-Purpose Fluid Pump #JPR-50LP
SKU: JPR-50LP
Includes:
JPR-50LP (General Multi-Purpose Pump) QTY:1
Product Information & Specs:
Port Size: 2" NPT
Port Type: Pipe
Body: Bronze
JMP Impeller p/n: 8200-01
Shaft Material / Diameter: Stainless Steel / 22mm
Shaft Seal: Mechanical Seal
Flow (1800rpm): 394 Liter/Min
Size (L x W x H): 270mm x 140mm x 160mm
Weight (Approx): 21.50 lbs (9.77 kgs)
Service Kit (*Sold Separately): JSK0011
Product Features:
- Strong Bronze Body
- Long Life Mechanical Seal
- High Performance and Long Life Flexible Impeller
- Designed with Easy Replacement of Spare Parts
- O-Ring Seals at Endcover (Impeller Cover) Instead of a Gasket
Applications:
- Marine & Sewage Treatment
- Industrial (ie. Cleaning Solutions, Bottling Systems)
- Agricultural / Farming Public Utilities and Municipalities
This is a non-OEM, aftermarket pump JMP JPR-50LP
Dimensions:
| Inlet | Outlet | Size (LxWxH) | Weight | Notes |
|---|---|---|---|---|
| 2" | 2" | 270 x 140 x 160 | 9.0 kgs |
Pump Parts:
| JMP | OEM | Description | Qty | Notes |
|---|---|---|---|---|
| 8200-01 | Impeller | 1 | ||
| JSM0011 | Minor Kit | 1 | ||
| JSK0011 | Major Kit | 1 | ||
| BER0006 | Bearing Drive | 1 | ||
| BER0006 | Bearing Seal | 1 | ||
| BOL0081 | Screw | |||
| CAMSET0006 | Camset | 1 | ||
| COV0005 | End Cover | 1 | ||
| ORG0015 | Cover Gasket | 1 | ||
| KEY0007 | Key | 1 | ||
| MCSSET0003 | Seal | 1 | ||
| RET0010 | Retainer Drive | 1 | ||
| RET0007 | Retainer Seal | 1 | ||
| SHA0011 | Shaft | 1 | ||
| SLI0003 | Slinger | 1 | ||
| SNP0008 | Snap Ring Seal | 1 | ||
| SNP0013 | Snap Ring Drive | 1 | ||
| WER0003 | Wear Plate | 1 | ||
| Clutch / Drive | 1 |
