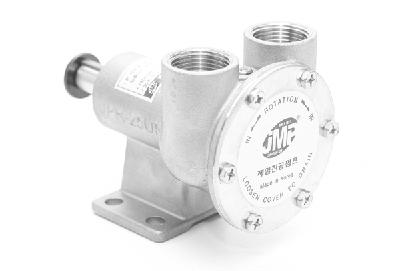

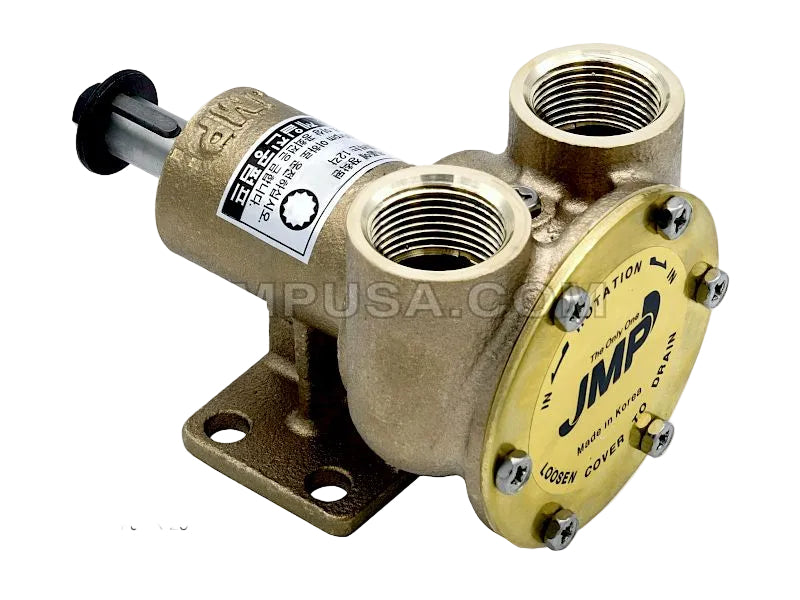

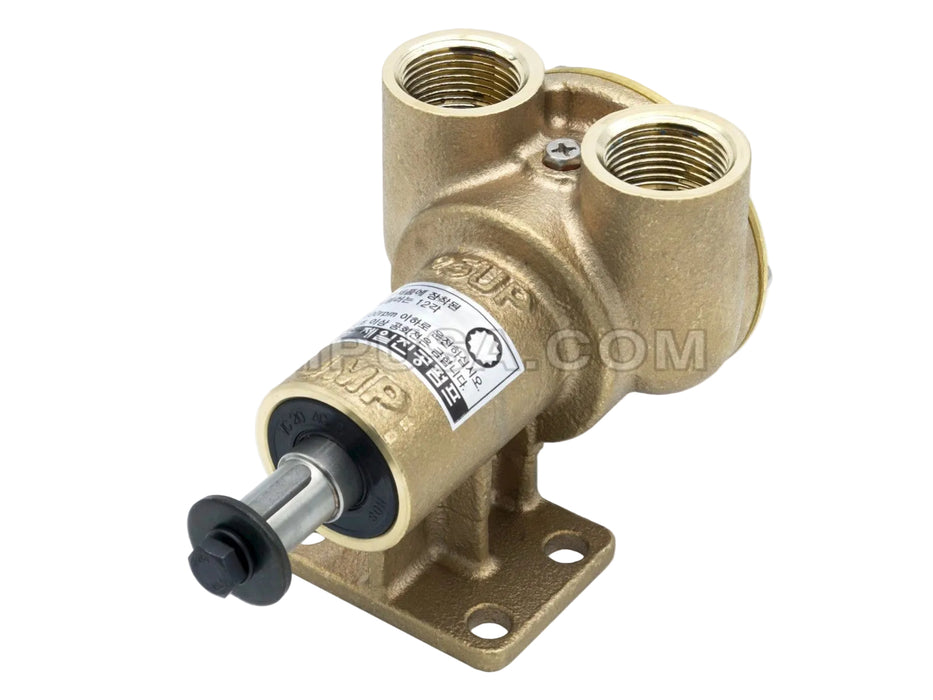

JMP JPR-25UP 1`" Seawater Pump
by JMP
Original price
$550.00 AUD
-
Original price
$550.00 AUD
Original price
$550.00 AUD
$550.00 AUD
-
$550.00 AUD
Current price
$550.00 AUD
This is a non-OEM, aftermarket pump JMP JPR-25UP

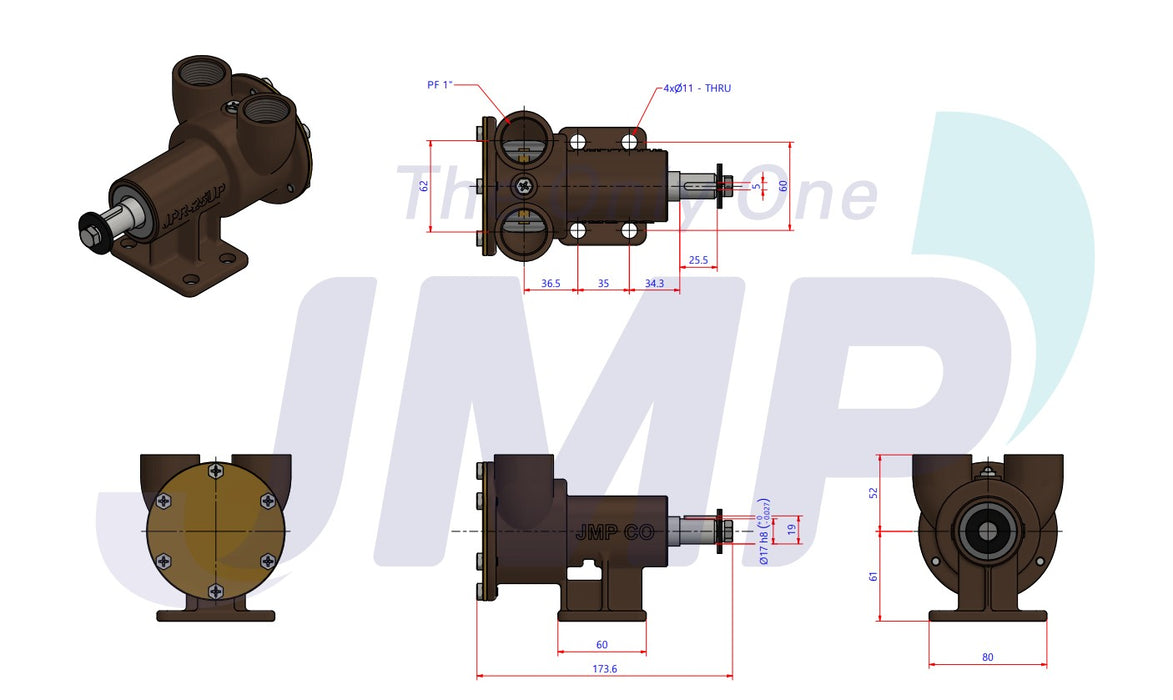

Dimensions:
| Inlet | Outlet | Size (LxWxH) | Weight | Notes |
|---|---|---|---|---|
| 1" | 1" | 158 x 103 x 112 | 2.7kg |

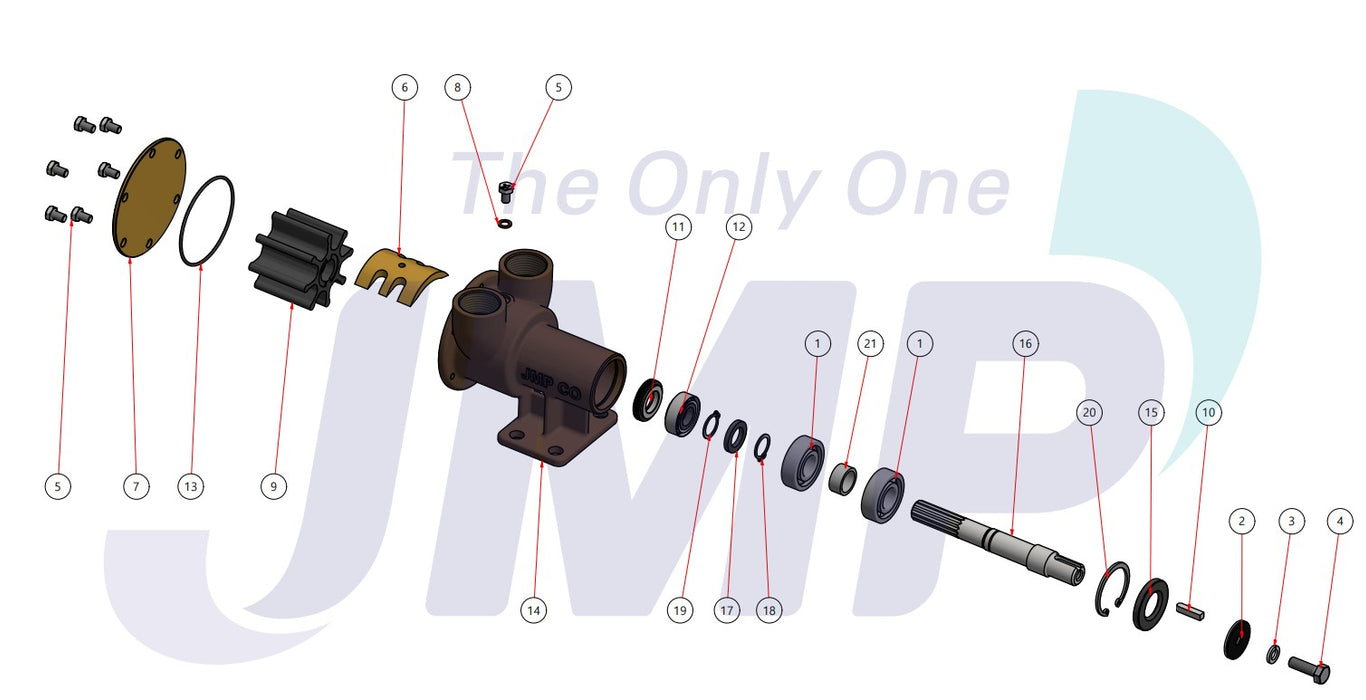

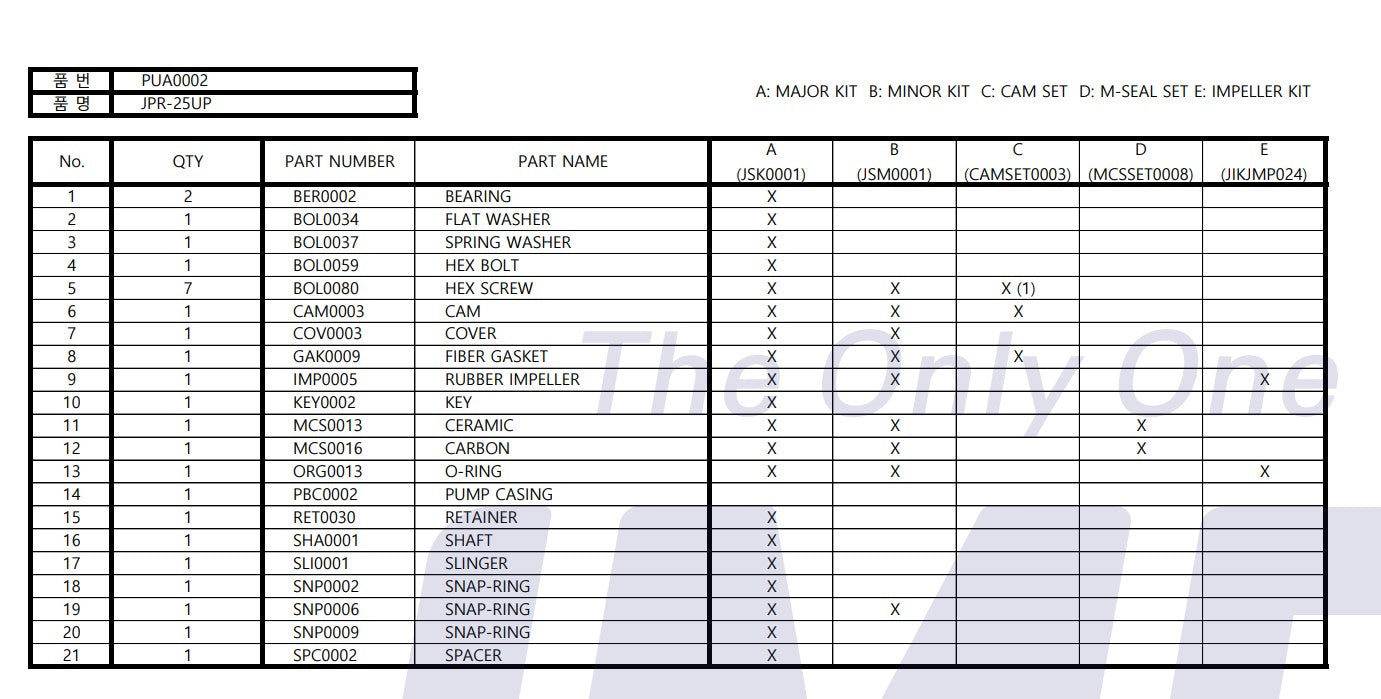

Pump Parts:
| JMP | OEM | Desription | Qty | Notes |
|---|---|---|---|---|
| 7400-01 | Impeller | 1 | ||
| JSM0001 | Minor Kit | 1 | ||
| JSK0001 | Major Kit | 1 | ||
| BER0002 | Bearing Drive | 1 | ||
| BER0002 | Bearing Seal | 1 | ||
| BOL0080 | Screw | |||
| CAMSET0003 | Camset | 1 | ||
| COV0003 | End Cover | 1 | ||
| ORG0013 | Cover Gasket | 1 | ||
| KEY0002 | Key | 1 | ||
| MCSSET0008 | Seal | 1 | ||
| RET0030 | Retainer Drive | 1 | ||
| N/A | Retainer Seal | 1 | ||
| SHA0001 | Shaft | 1 | ||
| SLI0001 | Slinger | 1 | ||
| SNP0006 | Snap Ring Seal | 1 | ||
| SNP0009 | Snap Ring Drive | 1 | ||
| N/A | Wear Plate | 1 | ||
| Clutch / Drive | 1 |
