Cummins QSM11 Sherwood G2903X Seawater Pump Replacement JPR-C1100
by JMP Marine
Original price
$0 AUD
Original price
$3,000.00 AUD
-
Original price
$3,000.00 AUD
Original price
Current price
$3,000.00 AUD
$3,000.00 AUD
-
$3,000.00 AUD
Current price
$3,000.00 AUD
Cummins QSM11 Seawater Pump Replacement
Seawater pump suits Cummins QSM 11 Engines.
Replaces Cummins raw water pumps 4929178, 3349392, 5260393.
Sherwood G2903X, G-2903X - 29000K Impeller type (replacing G1810X, G1810-01- 18000K impeller).
Part numbers 23523 RC, 23396
This is a JMP Marine Pump part JPR-C1100. ( SHW 29000 impeller type)
See link for product video - JPR-C1100

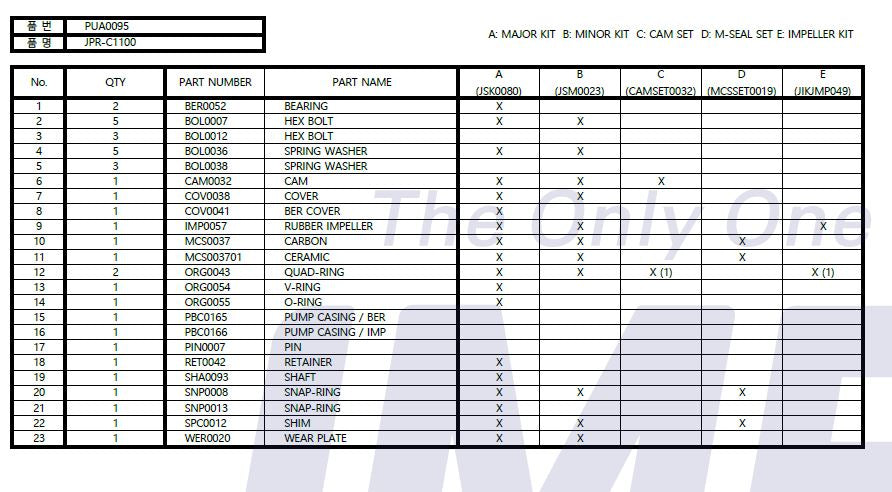

Pump Parts: - Compatible with Original 29000 sieries pump
| JMP | DESCRIPTION | QTY | REMARK |
|---|---|---|---|
| JPR-C1100 | SEA WATER PUMP | 1 | 4929178 |
| BER0052 | BALL BEARING | 2 | 4019426 |
| BOL0007 | HEX BOLT, END COVER | 5 | |
| BOL0036 | SPRING WASHER, END COVER | 5 | |
| CAMSET0032 | CAM LINER (1piece) | 1 | 4019415 |
| COV0038 | END COVER | 1 | 4019409 |
| COV0041 | BEARING SHIELD | 1 | 4919425 |
| 8359-01 | IMPELLER | 1 | 4933742 |
| MCSSET0019 | MECHANICAL SEAL KIT | 1 | 4019427 |
| ORG0054 | V-RING | 1 | 4019412 |
| ORG0043 | QUAD RING (with CAM LINER) | 2 | 4019416 |
| ORG0055 | O-RING, MOUNTING ADAPTOR | 1 | 4019428 |
| PIN0007 | PIN, CAM LINER | 1 | 4019417 |
| RET0042 | OIL SEAL | 1 | 4019413 |
| SHA0093 | SHAFT | 1 | 4019419 |
| SNP0008 | SNAP RING | 1 | 4019407 |
| SNP0013 | SNAP RING | 1 | 4019411 |
| SPC0012 | SPACER | 1 | 4019410 |
| WER0020 | WEAR PLATE | 1 | 4019408 |
| JSM0023 | MINOR KIT | 1 | 4930628 |
| JSK0080 | MAJOR KIT | 1 | 4930629 |
