CATERPILLAR C 4.4 Seawater Pump Replacement JMP JPR-CT0440

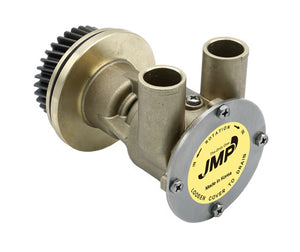

CATERPILLAR C4.4 Seawater Pump Replacement

Product Information & Specs:
Replaces Genuine Caterpillar Pump p/n: 4255412, 425-5412
Replaces Jabsco Pump p/n: 29630-1201
Replaces Perkins Pump p/n: W100006
Can Possibly Replace Jabsco Pump p/n: Jabsco 29630-1101 (see note): You must confirm that your pump drive gear setup has same number of teeth being 33 which would then match with JPR-CT0440

For Caterpillar Engine Model(s): C 4.4

For Perkins Engine Model: M92B
Drive Gear Teeth Qty: 33
Number of End Cover Screws: 4
Parts Internally Compatible to Genuine: YES & NO (see note A)

Note A: You can use the JMP parts Kits listed below to also service OEM / Genuine Brand pumps but MUST use CAT Mechanical Seal p/n: 4204328 in place of JMP Mechanical Seal MCSSET0008. MCSSET0008 is only for JPR-CT0440 JMP Marine Brand Pump. Why was Mechanical Seal Changed? To provide a longer life mechanical seal for longer lasting product and performance

Uses JMP Marine Impeller p/n: 7400-01K
Pump Weight (approx): 8.75 LBS (4.0 KG)
Major Service Kit (All Internal Parts): JSK0143 (*Sold Separately)
Minor Service Kit: JSM0143 (*Sold Separately)

Product Features:

100% Compatible Plug & Play Replacement (Pump & Parts, except M-Seal . . See Note "A" in Product Information)
Long Life Mechanical Seal
Heavy Duty Marine Grade Casting
Heavy Duty Bronze Cam Liner
Marine Grade Shaft (3X Series Non-Magnetic)
High Performance Impeller
High Volume Flow Capacity
Fast Flow Velocity

See Pump details on  video -

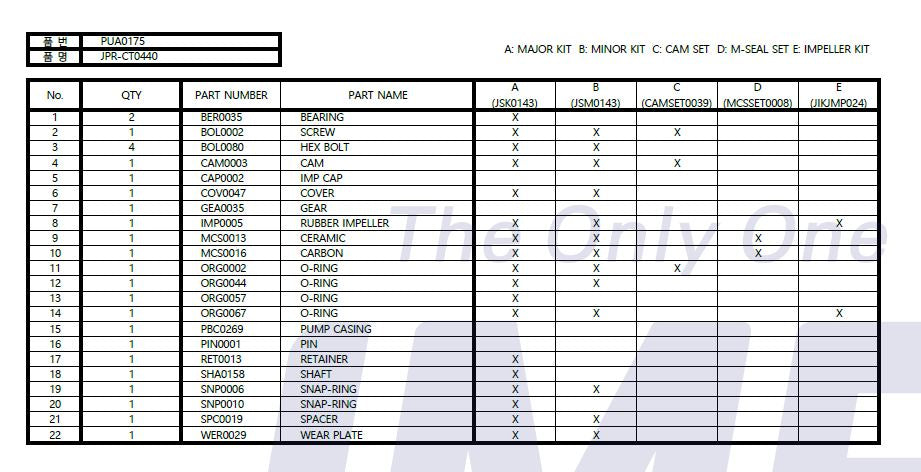

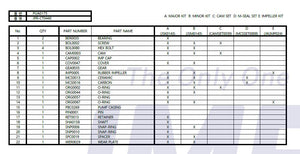

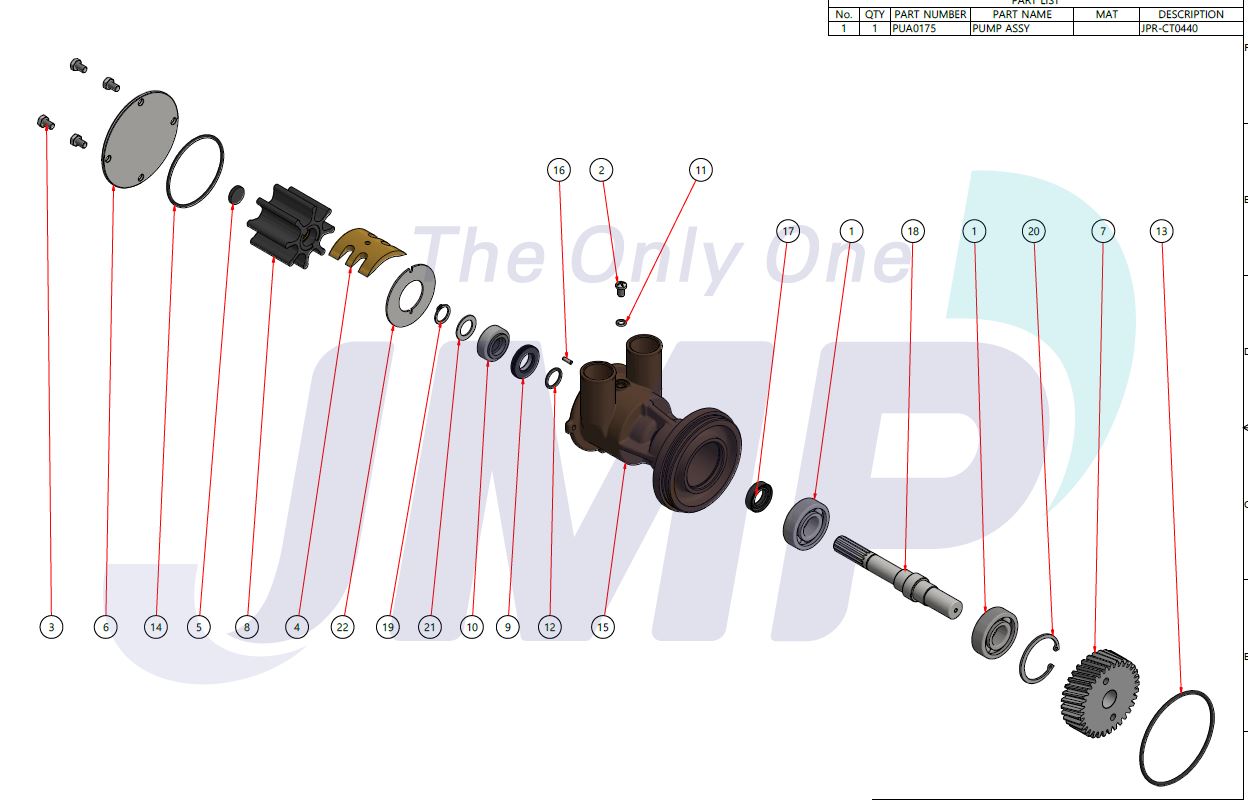

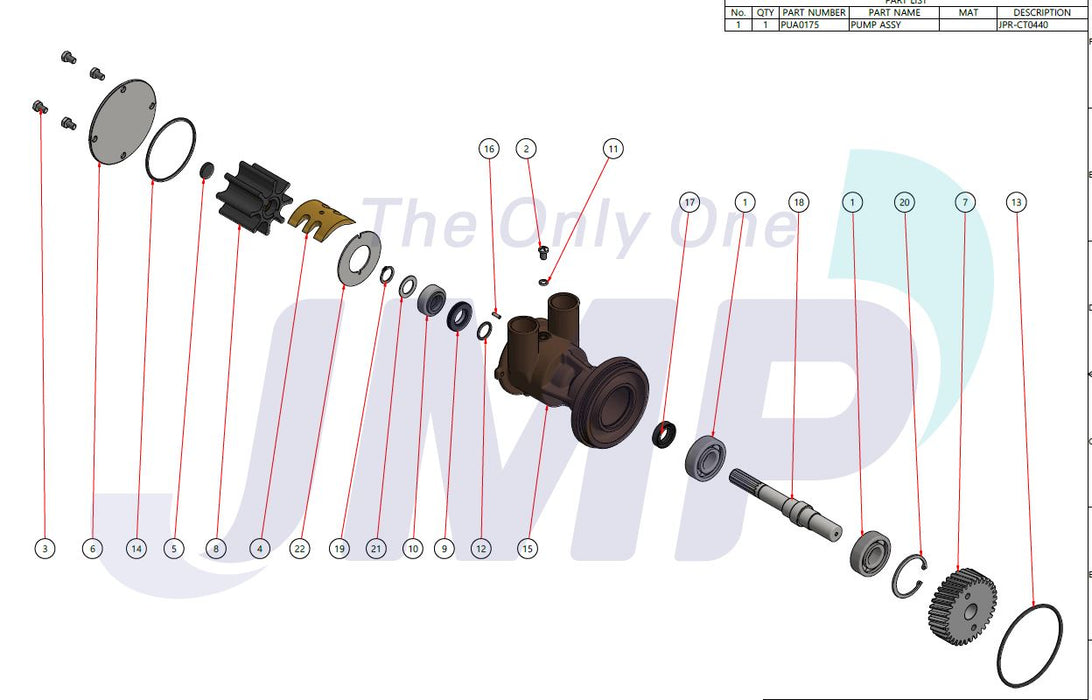

Pump Parts:
