CATERPILLAR C 1.5 / C 2.2 Seawater Pump 4255421 Replacement JPR-CT0150
by JMP
Original price
$1,045.00 AUD
-
Original price
$1,045.00 AUD
Original price
$1,045.00 AUD
$1,045.00 AUD
-
$1,045.00 AUD
Current price
$1,045.00 AUD

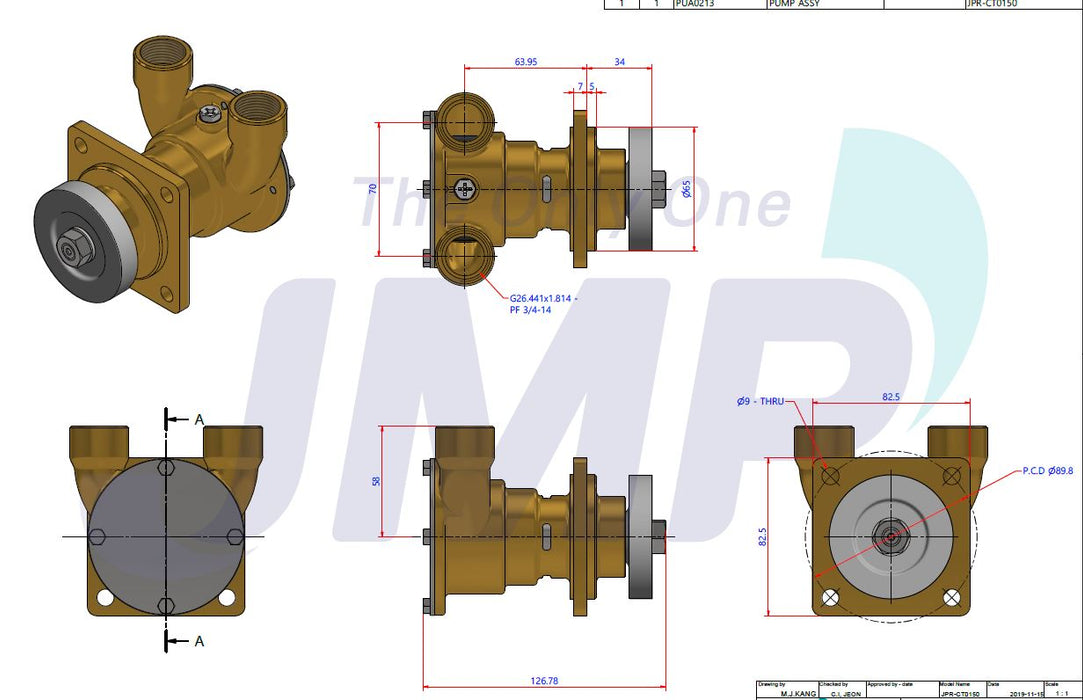

CATERPILLAR C1.5/2.2 Seawater Pump Replacement
Seawater cooling pump suits:
CATERPILLAR Engines: C1.5 (11KW) Generator / C2.2 (22.5KW) Generator Models
CATERPILLAR Seawater Pump: 4255421 / 425-5421.
Includes Drive Gear 65mm X 39 Teeth .
Complete with impeller (JMP 7100-01).
This is a JMP Marine pump JMP JPR - CT0150 See link for product video

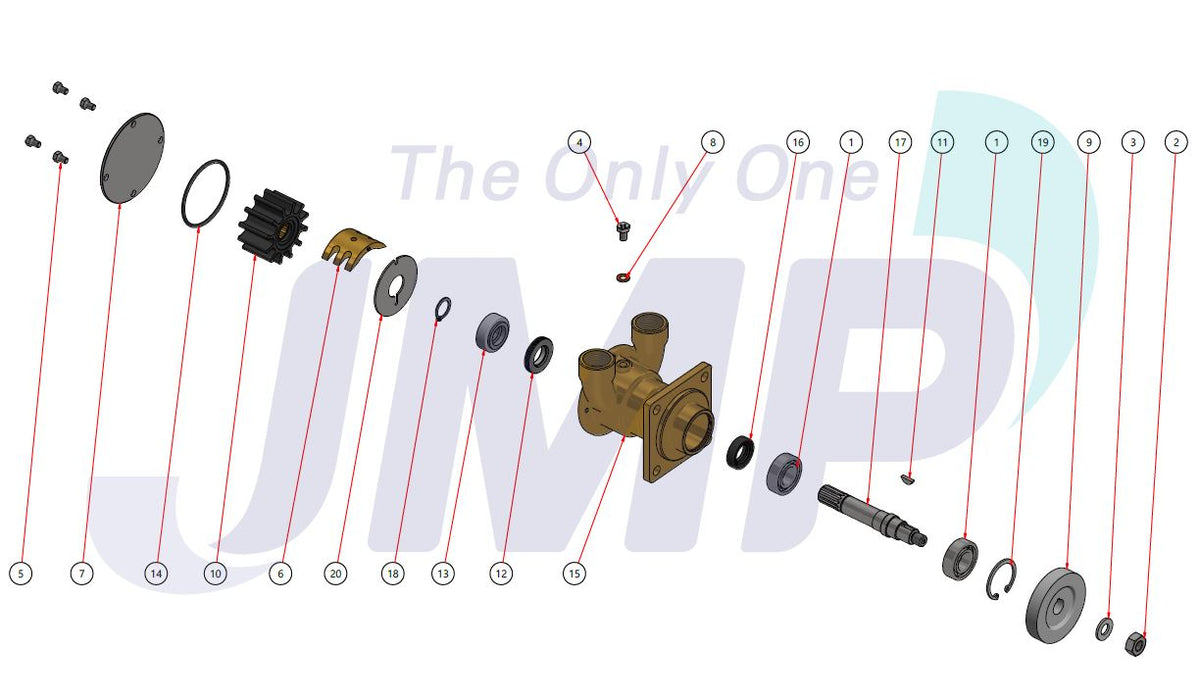

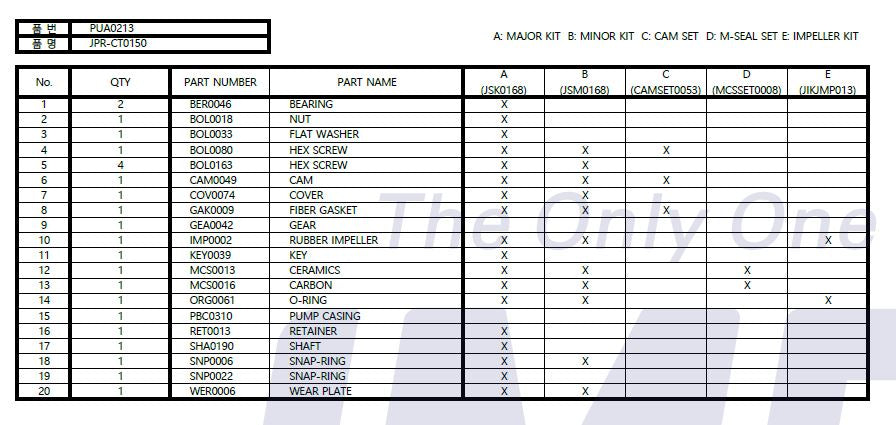

Pump Parts:
| Pos | Description | Caterpillar Number | JMP Number |
In Kit |
|---|---|---|---|---|
| Repair Kit | N/A | |||
| 1 | Bearing | x 2 | BER0046 | |
| 2 | Nut, Gear | BOL0018 | ||
| 3 | Washer | BOL0033 | ||
| 4 | Hex Screw, Cam | BOL0088 | ||
| 5 | Hex Bolt, End Cover |
x 4 | BOL0163 | |
| 6 |
CAM |
CAM0049 | ||
| 7 | End Cover | COV0074 | ||
| 8 |
Fibre Gasket, Cam Screw |
GAK0009 | ||
| 9 |
Gear |
GEA0042 |
||
| 10 | Impeller |
425-5421 | 7100-01 | |
| 11 |
Key |
KEY0039 |
||
| 12 |
Seal, Ceramic |
MSC0013 |
||
| 13 |
Seal, Carbon |
MSC0016 |
||
| 14 |
O-ring, End Cover |
ORG0061 |
||
| 15 |
Pump Casing |
PBC0310 |
||
| 16 | SEAL, OIL | RET0013 | ||
| 17 | Shaft | SHA0190 | ||
| 18 | Snap Ring | SNP0006 | ||
| 19 | Snap Ring | SNP0022 | ||
| 20 | Wear Plate | WER0006 |
