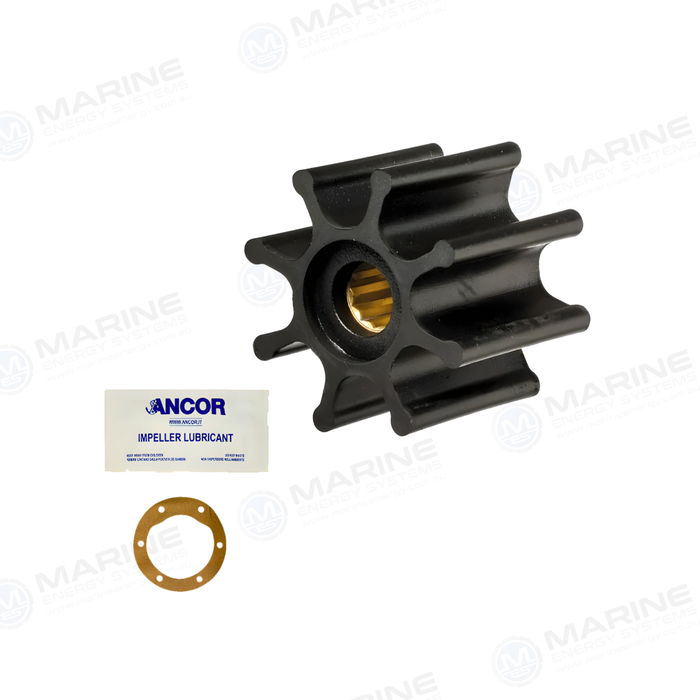

AN 3509 Impeller ( 8 Blades) Replaces Jabsco 31130-0061, Yanmar 119593-42202 / JMP 7420

Impeller Jabsco 31130-0061, Yanmar 119593-42202 replacement by Ancor of Italy.

Impeller Specifications

‘(A) Diameter 65mm‘(B) Depth (Blade length) 68.3mm

Number of Blades – 8

‘(D) Shafts insert Diameter mm – 16

Shaft type – 4 (SPLINE)

Impeller Rubber Material - Neoprene

Replaces:

Jabsco Impeller 311130-0061

Yanmar Impeller 119593-42202 (Replaced 119593-42200 & 119593-42201)

Used on Yanmar 6LY-UTE/-STE; Yanmar 8LV

Mercury Mercruiser 47-831311350, 47-809866, 47-809866T.

HINO Impeller Hino 16131-1350

Isuzu Impeller 5262360060

Kashiyama SP130

Also available Same Impeller with 10 Blades refer JMP 7420-01
