Yanmar Spare Parts - Yanmar 2QM20 / 3QM30

Aftermarket Parts for Yanmar 2QM20 / 3QM30 Marine Engines.

Stocked and shipped from the Gold Coast, Australia.

Spare Part Yanmar / Notes Aftermarket Part
FILTERS:
Oil Filter
REC 124550-35110
Fuel Filter
REC 104500-55710
Air Filter
REC 124770-12540
Primary Fuel Filter CAV Type REC 1140639
Primary Filter Element CAV Type REC 3581078
COOLING SYSTEM:
Zinc Anode(s) 27210-200300 AN 2091
Impeller 124223-42091 AN 2051

Seawater Pump

724770-42500

 ** No aftermaket replacement available.
The adjacent pulley pumps may be adapted
in place of the original shaft / timing cover driven pump



** Adaptable Pumps:

1)  AN 4948 (without pulley)

2)  JPR-YM08IH (with pulley)

3)  JPR-YM007IP (with pulley)
Seawater Pump Repair Kit 724770-42702 AN Repair Part Kit
(for original yanmar pump)
EXHAUST SYSTEM:
Exhaust Mixer / Riser 724770-13200 / 124770-13550 Not Available
Exhaust Riser Extensions

5' Riser Extension

7" Riser Extension

9" Riser Extension
BELTS & ELECTRICAL:
Belt(alternator) 25117-003151
Fuel Lift Pump 105582-52010 REC 105582-52010
Stater Motor: 2QM20 124250-77012 REC124250-77012
Starter Motor: 3QM30 121370-77010 REC129698-77010
ENGINE MOUNTS:

Flexible Mount 121370-08340 x 4
Dome Shape (Fixed Type) 124770-08340 x 4

Filters

$
$
$20.35 AUD - $20.35 AUD
$20.35 AUD
$20.35 AUD - $20.35 AUD
$20.35 AUD

Yanmar Oil Filter 124085-35113 124085-35170 Replacement REC 124550-35110

Recmar

Yanmar Oil Filter 124085-35113 Replacement Part REC 124550-35110 Suitable for Yanmar 2QM, 3QM, 2QM20 / 3QM30, 3HM, 3HMF, 3HM35, 3HM35UF Replaces Ya...

View full details
$20.35 AUD - $20.35 AUD
$20.35 AUD
$20.35 AUD - $20.35 AUD
$20.35 AUD
$12.10 AUD - $12.10 AUD
$12.10 AUD
$12.10 AUD - $12.10 AUD
$12.10 AUD

Yanmar Fuel Filter 104500-55710 Replacement Part

Recmar

Yanmar Fuel Filter 104500-55710 (Atermarket)Fuel Filter suits Yanmar 1GM, 2GM/3GM,  2GMF/3GMF, 1GM10, 2GM20/3GM30, 2GM20-YEU, 2GM20F/3GM30F, 2GM20F...

View full details
$12.10 AUD - $12.10 AUD
$12.10 AUD
$12.10 AUD - $12.10 AUD
$12.10 AUD
$59.40 AUD - $59.40 AUD
$59.40 AUD
$59.40 AUD - $59.40 AUD
$59.40 AUD

Primary Fuel Filter Replaces CAV296, DELPHI HDF296, FF167, Baldwin BF82535

Recmar

REC 1140639 Primary Fuel Filter Assembly. Replaces CAV 296, DELPHI HDF 296, FF 167 Primary Fuel Filter suits Diesel Engines  up to 130 HP. ( 50 L/H...

View full details
$59.40 AUD - $59.40 AUD
$59.40 AUD
$59.40 AUD - $59.40 AUD
$59.40 AUD
$11.00 AUD - $11.00 AUD
$11.00 AUD
$11.00 AUD - $11.00 AUD
$11.00 AUD

CAV Diesel Fuel Filter 3581078, Delphi 296, FF167A, BF825, R2132P

Recmar

CAV Diesel Fuel Filter, vp41109003 3581078, Delphi296, FF167, BF825, C1191A, R2132P, Iveco 1901929Replaces:CAV296, DELPHI HDF296,  FF167A, Baldwin ...

View full details
$11.00 AUD - $11.00 AUD
$11.00 AUD
$11.00 AUD - $11.00 AUD
$11.00 AUD
$33.00 AUD - $33.00 AUD
$33.00 AUD
$33.00 AUD - $33.00 AUD
$33.00 AUD

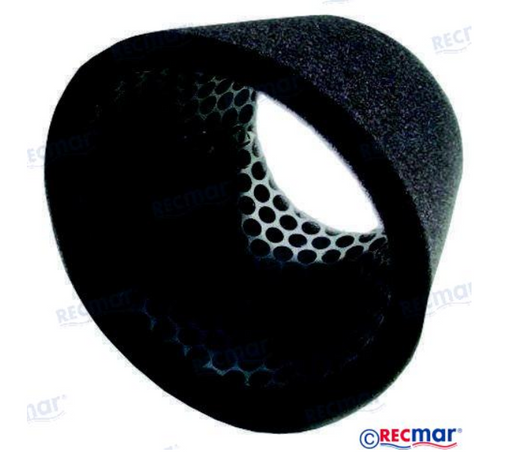

Yanmar 124770-12540 Air Filter Element Replacement

Filters - Air

Yanmar 124770-12540 Air Filter Replacement Replaces Yanmar part 124770-12540 Used on Yanmar engine: 3HM, 3HMF, 3HMF35, 3HM35F, 3HM35UF, 2QM, 2QM15,...

View full details
$33.00 AUD - $33.00 AUD
$33.00 AUD
$33.00 AUD - $33.00 AUD
$33.00 AUD
$11.00 AUD - $11.00 AUD
$11.00 AUD
$11.00 AUD - $11.00 AUD
$11.00 AUD

Yanmar 2GM 3GM Zinc Anode 27210-200300 Replacement Part

Cathodic Anodes

Yanmar Zinc Anode Replacement  Replaces Yanmar anode 27210-200300 (20x30). Used on Yanmar diesel marine engines: GM, HM, QM, YSM87, YSM12, YSB12, Y...

View full details
$11.00 AUD - $11.00 AUD
$11.00 AUD
$11.00 AUD - $11.00 AUD
$11.00 AUD
$649.00 AUD - $649.00 AUD
$649.00 AUD
$649.00 AUD - $649.00 AUD
$649.00 AUD

Yanmar 2GM-3GM 2YM-3YM Seawater Pump 128990-42500 (NO PULLEY) Replacement AN 4948

Ancor

This ANCOR marine pump replaces the Johnson 10-13337-01 / Yanmar 128990-42500 pumps. Pump with threaded hose tail connections and no pulley. The pu...

View full details
$649.00 AUD - $649.00 AUD
$649.00 AUD
$649.00 AUD - $649.00 AUD
$649.00 AUD
$698.50 AUD - $698.50 AUD
$698.50 AUD
$698.50 AUD - $698.50 AUD
$698.50 AUD

Yanmar 2/3GM- 2/3YM Seawater Pump Replacement JPR - YM08IH

JMP

Replacement seawater pump for Yanmar 2GM 3GM, 2YM 3YM engines. This replacement pump has built-in cam (4mm) and 17mm / 5/8" water hose. It is suppl...

View full details
$698.50 AUD - $698.50 AUD
$698.50 AUD
$698.50 AUD - $698.50 AUD
$698.50 AUD
$687.50 AUD - $687.50 AUD
$687.50 AUD
$687.50 AUD - $687.50 AUD
$687.50 AUD

Yanmar 2GM, 3GM Seawater Pump 128270-42002 (Kinki) Replacement JPR-YM07IP

JMP Marine

Replacement seawater pump for Yanmar engines: with Direct sea water cooling system . 2GML, 2GM20VE, 2GM20, 2GM20C, 3GMD, 3GMLE, 3GM30VE , 3GM30B, 3...

View full details
$687.50 AUD - $687.50 AUD
$687.50 AUD
$687.50 AUD - $687.50 AUD
$687.50 AUD
$95.38 AUD - $95.38 AUD
$95.38 AUD
$95.38 AUD - $95.38 AUD
$95.38 AUD

Yanmar 2GM 3GM & 2YM 3YM Seawater Pump Kit Replacements

Ancor

Yanmar 2GM 3GM & 2YM 3YM Seawater Pump Parts (Johnson type)  Aftermarket parts to suit pump Johnson 10-24509 /10-13492-01/  10-13337 ( F4B-903 ...

View full details
$95.38 AUD - $95.38 AUD
$95.38 AUD
$95.38 AUD - $95.38 AUD
$95.38 AUD
$219.42 AUD - $219.42 AUD
$219.42 AUD
$219.42 AUD - $219.42 AUD
$219.42 AUD

Yanmar 2QM20 & 3QM30 Seawater Pump Repair Kit 724770-42702 for Original pump

Yanmar

Seawater Pump Repair Kit AFTERMARKET PARTS KIT FOR YANMAR 2QM20 / 3QM30 SEA WATER PUMP YANMAR 724770-42702. DESCRIPTION QTY ANCOR PART NUMBER ...

View full details
$219.42 AUD - $219.42 AUD
$219.42 AUD
$219.42 AUD - $219.42 AUD
$219.42 AUD
$0.00 AUD - $0.00 AUD
$0.00 AUD
$46.20 AUD
$46.20 AUD - $46.20 AUD
$46.20 AUD

Impeller Johnson 827B, Jabsco 22799-0001, Yanmar 128296-42070, 124223-42091 AN 2051

Ancor

Replaces Johnson 827, Jabsco 22799-0001 /  Yanmar 128296-42070, 124223-42091 replacement by Ancor of Italy. Impeller Specifications   Impeller R...

View full details
$0.00 AUD - $0.00 AUD
$0.00 AUD
$46.20 AUD
$46.20 AUD - $46.20 AUD
$46.20 AUD
$104.50 AUD - $104.50 AUD
$104.50 AUD
$104.50 AUD - $104.50 AUD
$104.50 AUD

Exhaust Riser Extension 5" - Cast 316 (HDI GMR5)

HDI Marine

5" 316 Stainless Steel Extension RiserSuitable for Yanmar 1GM, 1GM10, 2GM, 2GM20, 2GM20F, 2GM30, 2GMF, 3GM, 3GM30, 3GM30F, 3GNF, 3HM, 3HM35F, 3HMFE...

View full details
$104.50 AUD - $104.50 AUD
$104.50 AUD
$104.50 AUD - $104.50 AUD
$104.50 AUD
$102.70 AUD - $102.70 AUD
$102.70 AUD
$102.70 AUD - $102.70 AUD
$102.70 AUD

Exhaust Riser Extension 7" - Cast 316 (HDI GMR7)

HDI Marine

7" 316 Stainless Steel Extension RiserSuits Yanmar Mixing Elbows:1GM / 2GM / 3GM / 1GM10 / 2GM20 / 2GM30 / 2GM20F / 3GM30F / 3GM30 / 3HM / 3HM35F /...

View full details
$102.70 AUD - $102.70 AUD
$102.70 AUD
$102.70 AUD - $102.70 AUD
$102.70 AUD
$138.60 AUD - $138.60 AUD
$138.60 AUD
$138.60 AUD - $138.60 AUD
$138.60 AUD

Exhaust Riser Extension 9" - Cast 316 (HDI GM R9)

HDI Marine

9" 316 Stainless Steel Extension RiserSuitable for Yanmar 1GM, 1GM10, 2GM, 2GM20, 2GM20F, 2GM30, 2GMF, 2QM15, 2QM20, 2YM15, 3GM, 3GM30, 3GM30F, 3GN...

View full details
$138.60 AUD - $138.60 AUD
$138.60 AUD
$138.60 AUD - $138.60 AUD
$138.60 AUD
$198.00 AUD - $198.00 AUD
$198.00 AUD
$198.00 AUD - $198.00 AUD
$198.00 AUD

Yanmar Fuel Lift Pump 105582-52010 Replacement

Recmar

Yanmar Fuel Lift Pump 105582-52010 Replacement Used on Models 2QM20 / 3 QM & 1 GM Series This is an Aftermarket replacement pump comes with mou...

View full details
$198.00 AUD - $198.00 AUD
$198.00 AUD
$198.00 AUD - $198.00 AUD
$198.00 AUD
$209.00 AUD - $209.00 AUD
$209.00 AUD
$209.00 AUD - $209.00 AUD
$209.00 AUD

Exhaust Riser Extension 12" - Cast 316 (HDI GMR 12)

HDI Marine

12" 316 Stainless Steel Extension Riser Fits Yanmar mixing elbow for the following engine models:1GM / 2GM / 3GM / 1GM10 / 2GM20 / 2GM30 / 2GM20F ...

View full details
$209.00 AUD - $209.00 AUD
$209.00 AUD
$209.00 AUD - $209.00 AUD
$209.00 AUD
$44.00 AUD - $44.00 AUD
$44.00 AUD
$44.00 AUD - $44.00 AUD
$44.00 AUD

Stainless Steel Exhaust Connector for GM / GM2 / GMKIT

HDI Marine

316 Stainless Steel Connector This item fits HDI Marine PNs GM / GM2 / GMKIT Fits the following engines: 1GM / 2GM / 1GM10 / 3GM30 / 3GM30F / 3HM ...

View full details
$44.00 AUD - $44.00 AUD
$44.00 AUD
$44.00 AUD - $44.00 AUD
$44.00 AUD
$13.20 AUD - $13.20 AUD
$13.20 AUD
$13.20 AUD - $13.20 AUD
$13.20 AUD

Yanmar 128370-13201 Gasket Replacement HDI G-GML

HDI Marine (USA)

Yanmar 128370-13201 Gasket Replacement for the Elbow 128370-13610. Suits Yanmar Marine engines 1GM, 1GM10, 2GM, 2GM20, 2GM20F, 2GM30, 2GMF, 2QM15, ...

View full details
$13.20 AUD - $13.20 AUD
$13.20 AUD
$13.20 AUD - $13.20 AUD
$13.20 AUD
$100.00 AUD - $100.00 AUD
$100.00 AUD
$100.00 AUD - $100.00 AUD
$100.00 AUD

Twin / Dual Primary Fuel Filter Assembly Replaces CAV296

Recmar

Dual (CAV Type) Filter AssemblyPrimary Fuel Filter suits Diesel Engines  up to 130 HP. ( 50 L/H)  Replacement Element, Use REC 3581078,  Replaces C...

View full details
$100.00 AUD - $100.00 AUD
$100.00 AUD
$100.00 AUD - $100.00 AUD
$100.00 AUD
