Yanmar Spare Parts - Yanmar 2QM15

Aftermarket Parts for Yanmar 2QM15 Marine Engines.

Stocked and shipped from the Gold Coast, Australia.

Spare Part Yanmar / Notes Aftermarket Part
FILTERS:
Oil Filter 119305-35151 REC 119305-35151
Fuel Filter Element REC 104500-55710
Air Filter
REC 124770-12540
Primary Fuel Filter VARIES ON INSTALLATION REC 1140639 - CAV TYPE
Primary Filter Element REC 3581078 - CAV TYPE
COOLING SYSTEM:
Zinc Anode(s) Engine block Located in the cap of the water joint 27210-200300
Seawater Pump 124070-42002 Not Available
Impeller 104211-42070 AN 2043
Thermostat 124770-49200
EXHAUST SYSTEM: REPLACEMENTS IN CAST 316 STAINLESS
Exhaust Kit 724070-13300 HDI QMKIT
Exhaust Elbow 128370-13600 HDI GM
Extension Riser 5" N/A HDI 5" OAL Riser
Extension Riser 7" N/A HDI 7" OAL RISER
Exhaust Riser 9" N/A HDI 9" OAL Riser
Exhaust Gasket - Manifold Assembly to Flange 124770-13171 HDI G-QML
Elbow - Down angle Optional Part 124070-13500 Not Available
BELTS & ELECTRICAL:
Fuel Lift Pump 124070-52011
Belt (alternator) 105582-77790
Belt (w pump) 104514-77350
Alternator Old Type LR135-31 121370-77200
Alternator New Type LR135-74 128170-77200
Alternator - Optional 124070-77200
Starter Motor 124070-77010 IMI99

Filters

$
$
$13.20 AUD - $13.20 AUD
$13.20 AUD
$13.20 AUD - $13.20 AUD
$13.20 AUD

Yanmar Oil Filter 119305-35170 Replacement REC 119305-35151

Recmar

Yanmar Oil Filter 119305-35170, 119305-35151 Replacement Oil Filter, Suitable for Yanmar 1GM, 2GM/3GM, 2GMF/3GMF,1GM10, 2GM20/3GM30, 2GM20F/3GM30F...

View full details
$13.20 AUD - $13.20 AUD
$13.20 AUD
$13.20 AUD - $13.20 AUD
$13.20 AUD
$12.10 AUD - $12.10 AUD
$12.10 AUD
$12.10 AUD - $12.10 AUD
$12.10 AUD

Yanmar Fuel Filter 104500-55710 Replacement Part

Recmar

Yanmar Fuel Filter 104500-55710 (Atermarket)Fuel Filter suits Yanmar 1GM, 2GM/3GM,  2GMF/3GMF, 1GM10, 2GM20/3GM30, 2GM20-YEU, 2GM20F/3GM30F, 2GM20F...

View full details
$12.10 AUD - $12.10 AUD
$12.10 AUD
$12.10 AUD - $12.10 AUD
$12.10 AUD
$33.00 AUD - $33.00 AUD
$33.00 AUD
$33.00 AUD - $33.00 AUD
$33.00 AUD

Yanmar 124770-12540 Air Filter Element Replacement

Filters - Air

Yanmar 124770-12540 Air Filter Replacement Replaces Yanmar part 124770-12540 Used on Yanmar engine: 3HM, 3HMF, 3HMF35, 3HM35F, 3HM35UF, 2QM, 2QM15,...

View full details
$33.00 AUD - $33.00 AUD
$33.00 AUD
$33.00 AUD - $33.00 AUD
$33.00 AUD
$59.40 AUD - $59.40 AUD
$59.40 AUD
$59.40 AUD - $59.40 AUD
$59.40 AUD

Primary Fuel Filter Replaces CAV296, DELPHI HDF296, FF167, Baldwin BF82535

Recmar

REC 1140639 Primary Fuel Filter Assembly. Replaces CAV 296, DELPHI HDF 296, FF 167 Primary Fuel Filter suits Diesel Engines  up to 130 HP. ( 50 L/H...

View full details
$59.40 AUD - $59.40 AUD
$59.40 AUD
$59.40 AUD - $59.40 AUD
$59.40 AUD
$11.00 AUD - $11.00 AUD
$11.00 AUD
$11.00 AUD - $11.00 AUD
$11.00 AUD

CAV Diesel Fuel Filter 3581078, Delphi 296, FF167A, BF825, R2132P

Recmar

CAV Diesel Fuel Filter, vp41109003 3581078, Delphi296, FF167, BF825, C1191A, R2132P, Iveco 1901929Replaces:CAV296, DELPHI HDF296,  FF167A, Baldwin ...

View full details
$11.00 AUD - $11.00 AUD
$11.00 AUD
$11.00 AUD - $11.00 AUD
$11.00 AUD
$11.00 AUD - $11.00 AUD
$11.00 AUD
$11.00 AUD - $11.00 AUD
$11.00 AUD

Yanmar 2GM 3GM Zinc Anode 27210-200300 Replacement Part

Cathodic Anodes

Yanmar Zinc Anode Replacement  Replaces Yanmar anode 27210-200300 (20x30). Used on Yanmar diesel marine engines: GM, HM, QM, YSM87, YSM12, YSB12, Y...

View full details
$11.00 AUD - $11.00 AUD
$11.00 AUD
$11.00 AUD - $11.00 AUD
$11.00 AUD
$0.00 AUD - $0.00 AUD
$0.00 AUD
$27.85 AUD
$27.85 AUD - $27.85 AUD
$27.85 AUD

AN 2043 Replaces Johnson 09-806B, Sherwood 9979, Jabsco 4528-0001, Yanmar 104211-42070

Ancor

Impeller Johnson 09-806B, Sherwood 9979, Jabsco 4528-0001, Yanmar 104211-42070 replacement by Ancor of Italy Impeller Specifications Replaces: ...

View full details
$0.00 AUD - $0.00 AUD
$0.00 AUD
$27.85 AUD
$27.85 AUD - $27.85 AUD
$27.85 AUD
$450.00 AUD - $450.00 AUD
$450.00 AUD
$450.00 AUD - $450.00 AUD
$450.00 AUD

Yanmar GM Mixing Elbow 124070-13520 (128370-13600) Cast 316 Stainless Replacement HDI GM

HDI Marine

Cast 316 Stainless Steel Exhaust Mixing Elbow for Yanmar 1GM, 2GM, 1GM10, 3GM30, 3HM, 3HM35F, 2GMF, 3HMF, 3GNF, 2GM20F, YSM12, 2QM,3QM Replaces Yan...

View full details
$450.00 AUD - $450.00 AUD
$450.00 AUD
$450.00 AUD - $450.00 AUD
$450.00 AUD
$15.90 AUD - $15.90 AUD
$15.90 AUD
$15.90 AUD - $15.90 AUD
$15.90 AUD

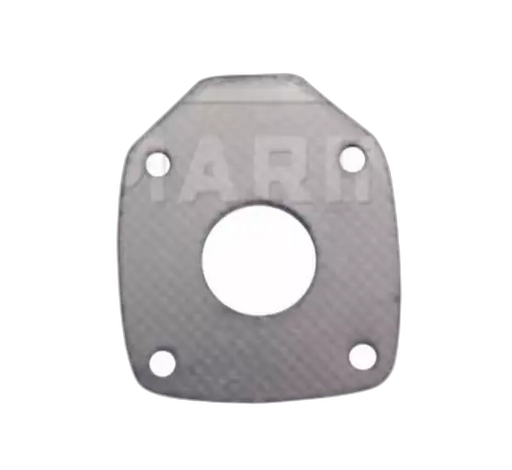

Yanmar 2QM Exhaust Manifold Gasket 124770-13171 Replacement

HDI Marine

Yanmar 124770-13171 Gasket ReplacementSuitable for Yanmar 2QM15, 2QM20, 2QM30Replaces Yanmar Exhaust Elbow Gasket 124770-13171 Exhaust Manifold to ...

View full details
$15.90 AUD - $15.90 AUD
$15.90 AUD
$15.90 AUD - $15.90 AUD
$15.90 AUD
$104.50 AUD - $104.50 AUD
$104.50 AUD
$104.50 AUD - $104.50 AUD
$104.50 AUD

Exhaust Riser Extension 5" - Cast 316 (HDI GMR5)

HDI Marine

5" 316 Stainless Steel Extension RiserSuitable for Yanmar 1GM, 1GM10, 2GM, 2GM20, 2GM20F, 2GM30, 2GMF, 3GM, 3GM30, 3GM30F, 3GNF, 3HM, 3HM35F, 3HMFE...

View full details
$104.50 AUD - $104.50 AUD
$104.50 AUD
$104.50 AUD - $104.50 AUD
$104.50 AUD
$102.70 AUD - $102.70 AUD
$102.70 AUD
$102.70 AUD - $102.70 AUD
$102.70 AUD

Exhaust Riser Extension 7" - Cast 316 (HDI GMR7)

HDI Marine

7" 316 Stainless Steel Extension RiserSuits Yanmar Mixing Elbows:1GM / 2GM / 3GM / 1GM10 / 2GM20 / 2GM30 / 2GM20F / 3GM30F / 3GM30 / 3HM / 3HM35F /...

View full details
$102.70 AUD - $102.70 AUD
$102.70 AUD
$102.70 AUD - $102.70 AUD
$102.70 AUD
$138.60 AUD - $138.60 AUD
$138.60 AUD
$138.60 AUD - $138.60 AUD
$138.60 AUD

Exhaust Riser Extension 9" - Cast 316 (HDI GM R9)

HDI Marine

9" 316 Stainless Steel Extension RiserSuitable for Yanmar 1GM, 1GM10, 2GM, 2GM20, 2GM20F, 2GM30, 2GMF, 2QM15, 2QM20, 2YM15, 3GM, 3GM30, 3GM30F, 3GN...

View full details
$138.60 AUD - $138.60 AUD
$138.60 AUD
$138.60 AUD - $138.60 AUD
$138.60 AUD
$209.00 AUD - $209.00 AUD
$209.00 AUD
$209.00 AUD - $209.00 AUD
$209.00 AUD

Exhaust Riser Extension 12" - Cast 316 (HDI GMR 12)

HDI Marine

12" 316 Stainless Steel Extension Riser Fits Yanmar mixing elbow for the following engine models:1GM / 2GM / 3GM / 1GM10 / 2GM20 / 2GM30 / 2GM20F ...

View full details
$209.00 AUD - $209.00 AUD
$209.00 AUD
$209.00 AUD - $209.00 AUD
$209.00 AUD
$44.00 AUD - $44.00 AUD
$44.00 AUD
$44.00 AUD - $44.00 AUD
$44.00 AUD

Stainless Steel Exhaust Connector for GM / GM2 / GMKIT

HDI Marine

316 Stainless Steel Connector This item fits HDI Marine PNs GM / GM2 / GMKIT Fits the following engines: 1GM / 2GM / 1GM10 / 3GM30 / 3GM30F / 3HM ...

View full details
$44.00 AUD - $44.00 AUD
$44.00 AUD
$44.00 AUD - $44.00 AUD
$44.00 AUD
$13.20 AUD - $13.20 AUD
$13.20 AUD
$13.20 AUD - $13.20 AUD
$13.20 AUD

Yanmar 128370-13201 Gasket Replacement HDI G-GML

HDI Marine (USA)

Yanmar 128370-13201 Gasket Replacement for the Elbow 128370-13610. Suits Yanmar Marine engines 1GM, 1GM10, 2GM, 2GM20, 2GM20F, 2GM30, 2GMF, 2QM15, ...

View full details
$13.20 AUD - $13.20 AUD
$13.20 AUD
$13.20 AUD - $13.20 AUD
$13.20 AUD
$812.11 AUD - $812.11 AUD
$812.11 AUD
$812.11 AUD - $812.11 AUD
$812.11 AUD

Yanmar 2QM15 Mixing Elbow Kit 724070-13300 316 Stainless HDI QMKIT

HDI Marine (USA)

QMKIT CAST 316 Stainless Steel Exhaust Kit for Yanmar 2QM15 marine engines (Stainless Steel equivalent for Yanmar 724070-13300). Complete with gask...

View full details
$812.11 AUD - $812.11 AUD
$812.11 AUD
$812.11 AUD - $812.11 AUD
$812.11 AUD
$100.00 AUD - $100.00 AUD
$100.00 AUD
$100.00 AUD - $100.00 AUD
$100.00 AUD

Twin / Dual Primary Fuel Filter Assembly Replaces CAV296

Recmar

Dual (CAV Type) Filter AssemblyPrimary Fuel Filter suits Diesel Engines  up to 130 HP. ( 50 L/H)  Replacement Element, Use REC 3581078,  Replaces C...

View full details
$100.00 AUD - $100.00 AUD
$100.00 AUD
$100.00 AUD - $100.00 AUD
$100.00 AUD
