Volvo Penta Spare Parts - Diesel - D1-30, D2-40

Volvo Penta D1-30 27.3hp 3 Cylinder Diesel 2005-2006;
Volvo Penta D2-40 38hp 4 Cylinder Diesel 2005-2006.

Spare Part Engines Aftermarket Part No
OIL: 15W/40 Mineral
based oil, either fully or
semi-synthetic, can be
used on condition that
it complies with VDS-
2 AND API CH-4 / API
CI-4

D1-30 3.5L

D1-40 6.5L

 OILS PAGE
FILTERS:
Oil Filter REC 3840525
Fuel Filter REC 861477
Primary Fuel Filter Racors RACOR
COOLING SYSTEMS:
Impeller 22222936 AN 2046
Seawater Pump

Major Service Kit

Minor Service  Kit 		D1-30A/B/F, D2-40A/B/F JPR-VP0010DB
JSK0092
JSM0073
Thermostat  90°C RM 3842015
EXHAUST SYSTEMS:
Exhaust Pipe Volvo Penta 861906

HDI-V878 Cast Stainless Steel (7/8" Water Inlet)

HDI-V834 Cast Stainless Steel (3/4" Water Inlet)

Hose Connection 3/4" VP 3812877 HDI-HV8
BELTS & ELECTRICAL:

Statermotor 12V

 21302969, 3582514, 3801350,
3803584		 REC 21302969

Alternator: 115A

D1-30, D2-40

 3819662, 3803903, 3803650, 874502 LP 3819662
Belt, 115A Alternator D1-30 21951188, 3812159 RM 3812159
Belt, 115A Alternator D2-40 21314684, 3812145 RM 21314684
Extra Alternator: 61A 873770, 3803444, 872019, 872235,
873633		 IBC 873770
Belt 'Extra Alternator 61A' D2-40 978678 RM 3912145
Sail Drive Parts

SD120 Anode 23973978 23973978
Volvo 2/3 Blade folding Prop 3858399 REC3858399
Volvo Hull seal 22303438 REC22303438
Leg seal kit
REC23033
SD bellows Kit 21389074 REC877362

Filters

$
$
$605.00 AUD - $605.00 AUD
$605.00 AUD
$605.00 AUD - $605.00 AUD
$605.00 AUD

Volvo Penta D1, D2-40, MD2010, 2020, 2030 7/8" (V878) CAST 316 Mixing Elbow 861906 Replacement

HDI Marine

Volvo Penta 861906 Stainless Steel Mixing Elbow Replacement There are two options, depending on the water inlet size. This part is the 7/8” / 22.2m...

View full details
$605.00 AUD - $605.00 AUD
$605.00 AUD
$605.00 AUD - $605.00 AUD
$605.00 AUD
$607.50 AUD - $607.50 AUD
$607.50 AUD
$607.50 AUD - $607.50 AUD
$607.50 AUD

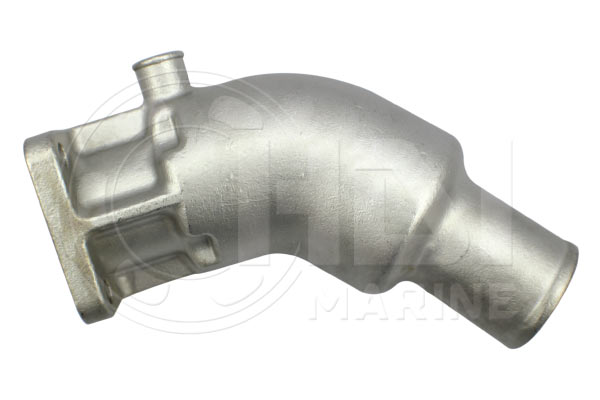

Volvo Penta D1, D2-40, MD2010, 2020, 2030 3/4" CAST 316 Stainless Mixing Elbow 861906 Replacement (V834)

HDI Marine

Volvo Penta 861906 Stainless Steel Mixing Elbow Replacement There are two options, depending on the water inlet size. This part is the 3/4” (19mm) ...

View full details
$607.50 AUD - $607.50 AUD
$607.50 AUD
$607.50 AUD - $607.50 AUD
$607.50 AUD
Save 18% Save %
$1,073.00 AUD
$1,073.00 AUD - $1,073.00 AUD
$1,073.00 AUD
$880.00 AUD
$880.00 AUD - $880.00 AUD
$880.00 AUD

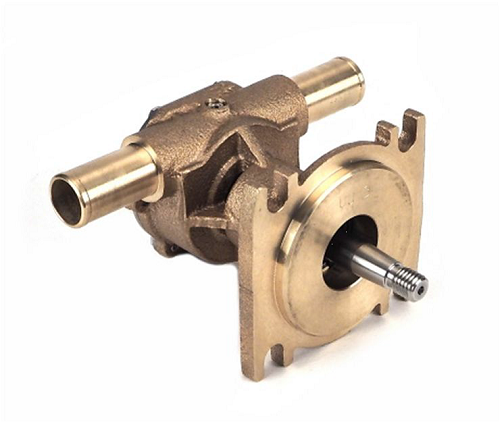

Volvo Penta D1/D2 Series Seawater Pump 3593655 Replacement VP0010DB

Ancor

Volvo Penta D1 / D2 Series Seawater Pump 3593655 Replacement Part Suits Volvo Penta D1-30A/B/F, D2-40A/B/F, MD2010, MD2020, MD2030, MD2040 Replaces...

View full details
$1,073.00 AUD
$1,073.00 AUD - $1,073.00 AUD
$1,073.00 AUD
$880.00 AUD
$880.00 AUD - $880.00 AUD
$880.00 AUD
Save 18% Save %
$187.00 AUD - $187.00 AUD
$187.00 AUD
$187.00 AUD - $187.00 AUD
$187.00 AUD

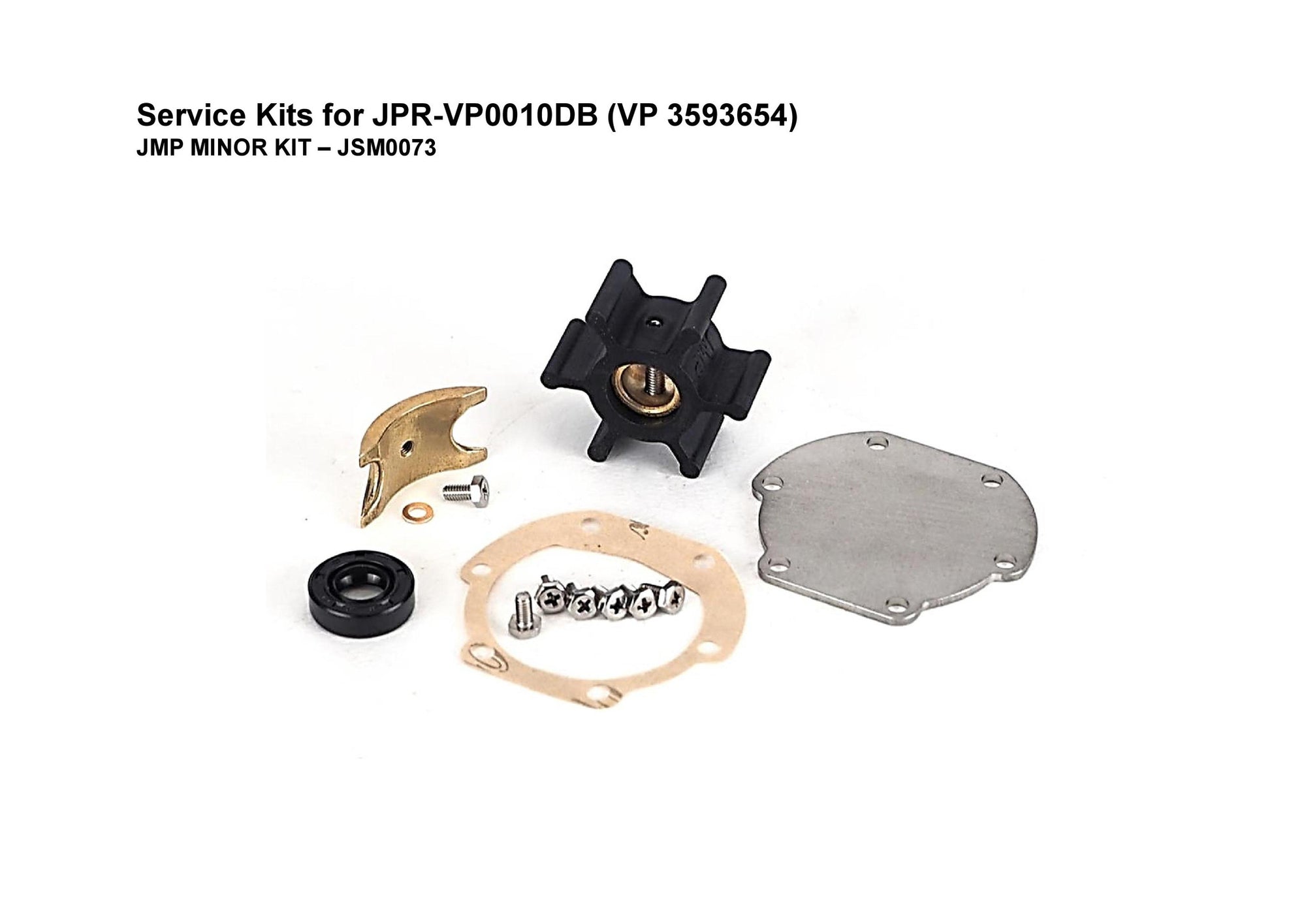

Minor Service Kit for Volvo Penta D1/D2 Seawater Pump 3593655 - JSM0073

Service Kits

Minor repair kit for Volvo Penta Seawater Pump 3593655 used on Volvo Penta D1/D2 Series Engines and JMP Marine pump JPR-VP0010D-02. Volvo Penta Eng...

View full details
$187.00 AUD - $187.00 AUD
$187.00 AUD
$187.00 AUD - $187.00 AUD
$187.00 AUD
$363.00 AUD - $363.00 AUD
$363.00 AUD
$363.00 AUD - $363.00 AUD
$363.00 AUD

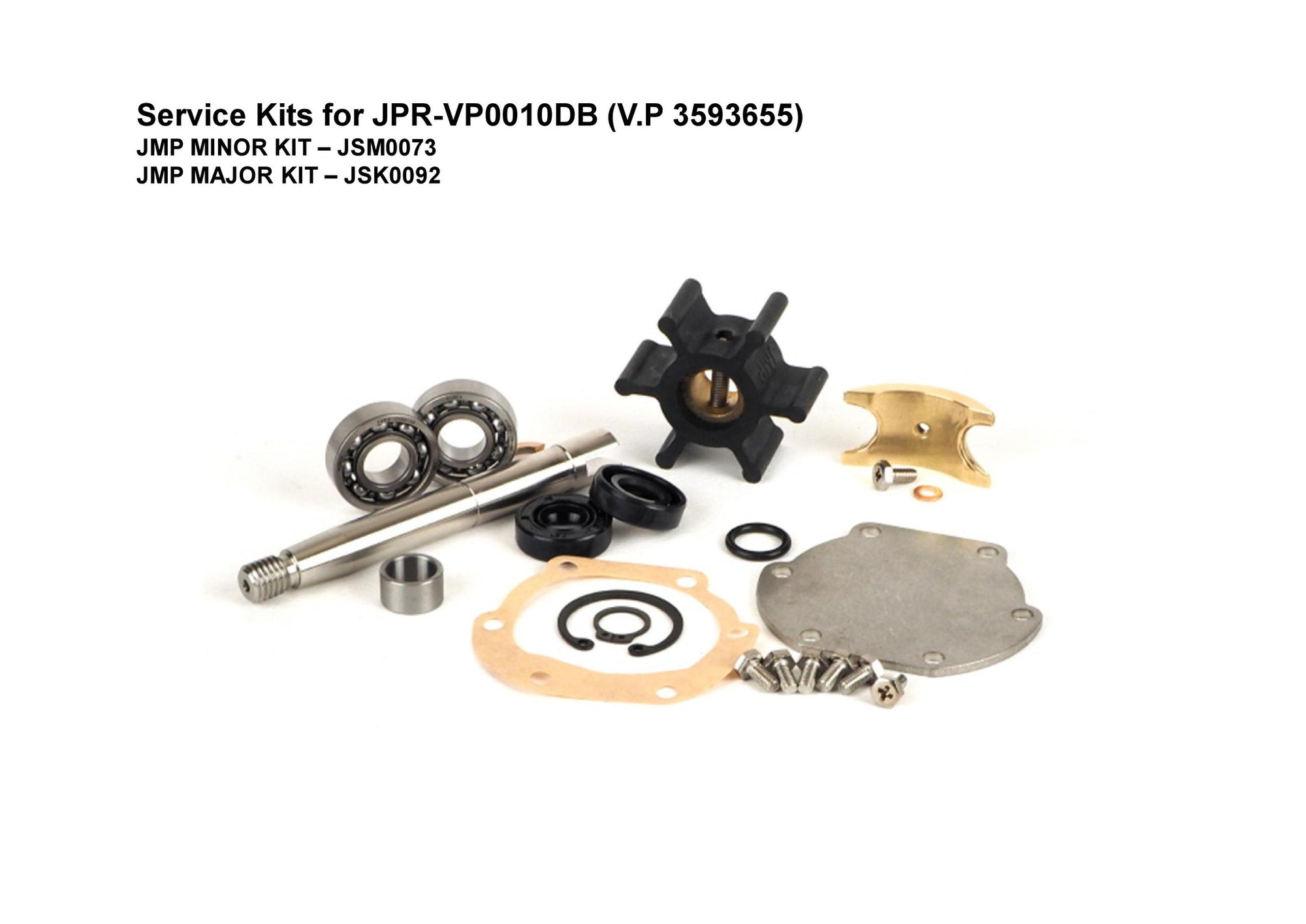

Major Service Kit for Volvo Penta D1/D2 Seawater Pump 3593655 - JSK0092

Service Kits

Major repair kit for Volvo Penta Seawater Pump 3593655 used on Volvo Penta D1/D2 Series Engines and JMP Marine pump JPR-VP0010D-02. Volvo Penta Eng...

View full details
$363.00 AUD - $363.00 AUD
$363.00 AUD
$363.00 AUD - $363.00 AUD
$363.00 AUD
$42.35 AUD - $42.35 AUD
$42.35 AUD
$42.35 AUD - $42.35 AUD
$42.35 AUD

Impeller Johnson 09-1026B / Jabsco 673-0001 Replacement AN 2046

Ancor

Impeller Johnson 09-1026B, Jabsco 673-0001 replacement by Ancor of Italy. Impeller Specifications Replaces Johnson Impeller 09-1026B Replaces Jab...

View full details
$42.35 AUD - $42.35 AUD
$42.35 AUD
$42.35 AUD - $42.35 AUD
$42.35 AUD
$26.40 AUD - $26.40 AUD
$26.40 AUD
$26.40 AUD - $26.40 AUD
$26.40 AUD

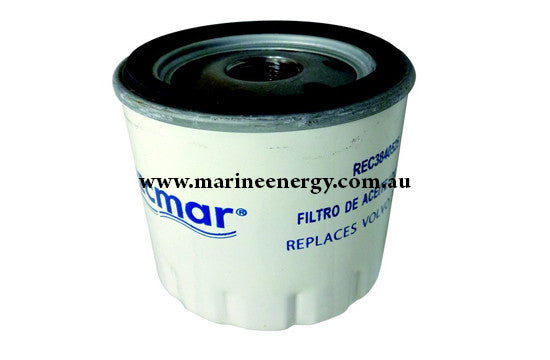

Volvo Penta Oil Filter Volvo 3840525 Replacement

Recmar

Volvo Penta Oil Filter Volvo 3840525 ReplacementOil Filter Volvo suits Volvo Penta D1-30, D2-40 D2-55, D2-75, MD 2030 A,B,C,D, MD 2040 A,B,C,DRepla...

View full details
$26.40 AUD - $26.40 AUD
$26.40 AUD
$26.40 AUD - $26.40 AUD
$26.40 AUD
$20.90 AUD - $20.90 AUD
$20.90 AUD
$20.90 AUD - $20.90 AUD
$20.90 AUD

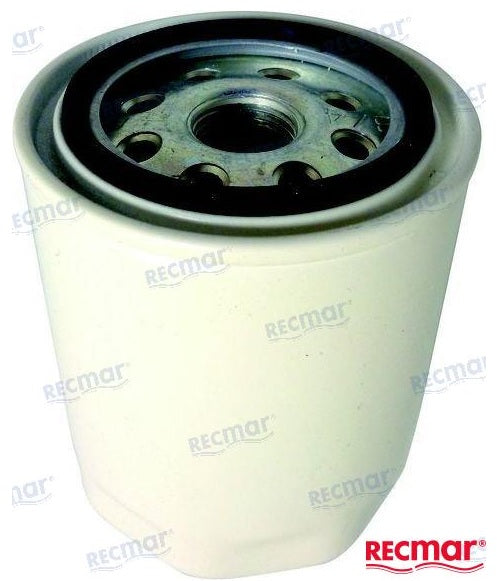

Volvo Penta Fuel Filter 861477 Replacement Part

Recmar

Volvo Penta Fuel Filter Volvo 861477 ReplacementFuel Filter Volvo suits Volvo Penta 2010A,B, 2020A,B, 2030A,B, 2040A,B, D2-55, D2-75, D2-40, D1-30,...

View full details
$20.90 AUD - $20.90 AUD
$20.90 AUD
$20.90 AUD - $20.90 AUD
$20.90 AUD
$59.40 AUD - $59.40 AUD
$59.40 AUD
$59.40 AUD - $59.40 AUD
$59.40 AUD

Primary Fuel Filter Replaces CAV296, DELPHI HDF296, FF167, Baldwin BF82535

Recmar

REC 1140639 Primary Fuel Filter Assembly. Replaces CAV 296, DELPHI HDF 296, FF 167 Primary Fuel Filter suits Diesel Engines  up to 130 HP. Complete...

View full details
$59.40 AUD - $59.40 AUD
$59.40 AUD
$59.40 AUD - $59.40 AUD
$59.40 AUD
$440.00 AUD - $440.00 AUD
$440.00 AUD
$440.00 AUD - $440.00 AUD
$440.00 AUD

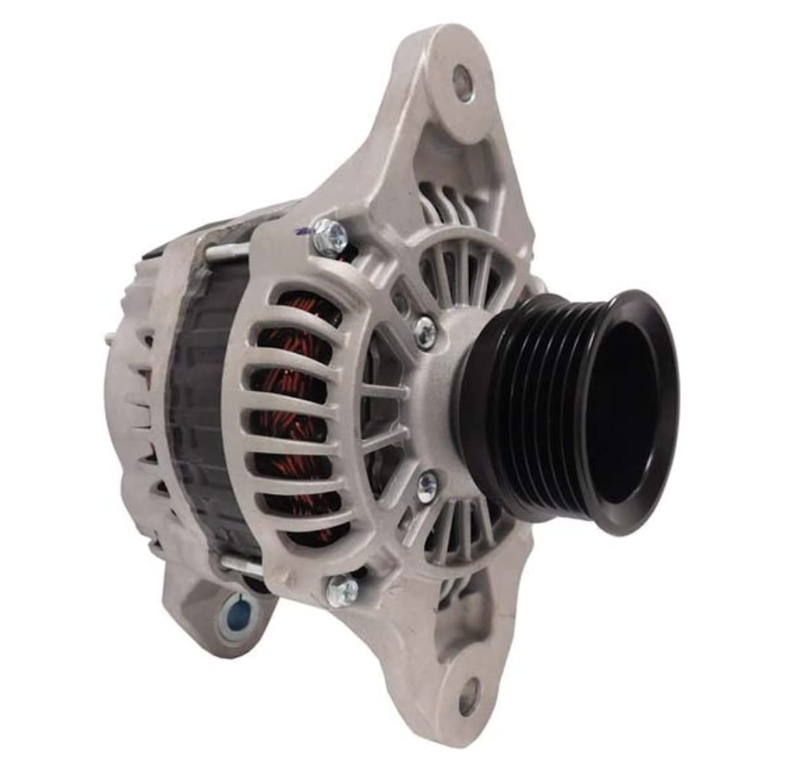

Volvo Penta D1 & D2 Alternator 3819662 / 874502 Replacement

Recmar

Volvo Penta D1, D2 Alternator 3819662 / 874502 Replacement12V 115 Amp Alternator 66mm diameter, 6 rib pulley.  Suits Volvo Penta D1-13, D1-20, D1-3...

View full details
$440.00 AUD - $440.00 AUD
$440.00 AUD
$440.00 AUD - $440.00 AUD
$440.00 AUD
$165.00 AUD - $165.00 AUD
$165.00 AUD
$165.00 AUD - $165.00 AUD
$165.00 AUD

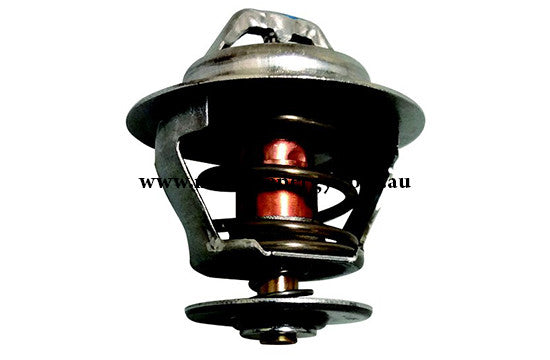

Volvo Penta Thermostat 3842015 Original Part

Recmar

Volvo Penta Thermostat RM 3842015 ReplacementThermostat suits Volvo Penta D1-13, 20, 30, D2-40.Replaces Volvo Penta 3842015. Thermostat only. No o-...

View full details
$165.00 AUD - $165.00 AUD
$165.00 AUD
$165.00 AUD - $165.00 AUD
$165.00 AUD
$28.05 AUD - $28.05 AUD
$28.05 AUD
$28.05 AUD - $28.05 AUD
$28.05 AUD

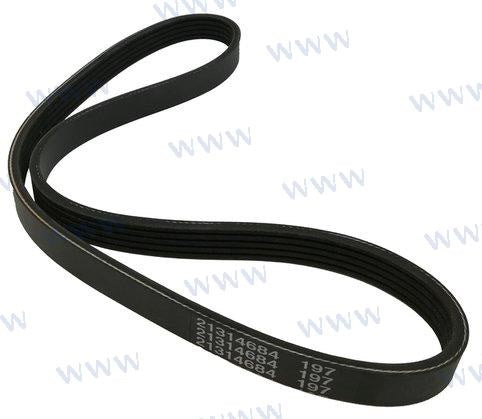

Volvo Penta Belt 21314684 Genuine Part

Recmar

Volvo Penta Belt RM 21314684 ReplacementSuitable for Volvo Penta D2-40This is a genuine Volvo Penta Belt 21314684.

$28.05 AUD - $28.05 AUD
$28.05 AUD
$28.05 AUD - $28.05 AUD
$28.05 AUD
$385.00 AUD - $385.00 AUD
$385.00 AUD
$385.00 AUD - $385.00 AUD
$385.00 AUD

Volvo Penta 873770 Alternator NANNI 48200932 Replacement

Marine Energy Systems

Volvo Penta 873770 Alternator Replacement VOLVO 873770-  3803260-3, 3803444, 872235-7, 873633, 872018, 872235 60 AMP, 12 Volt Paris Rhone Type Alte...

View full details
$385.00 AUD - $385.00 AUD
$385.00 AUD
$385.00 AUD - $385.00 AUD
$385.00 AUD
$394.90 AUD - $394.90 AUD
$394.90 AUD
$394.90 AUD - $394.90 AUD
$394.90 AUD

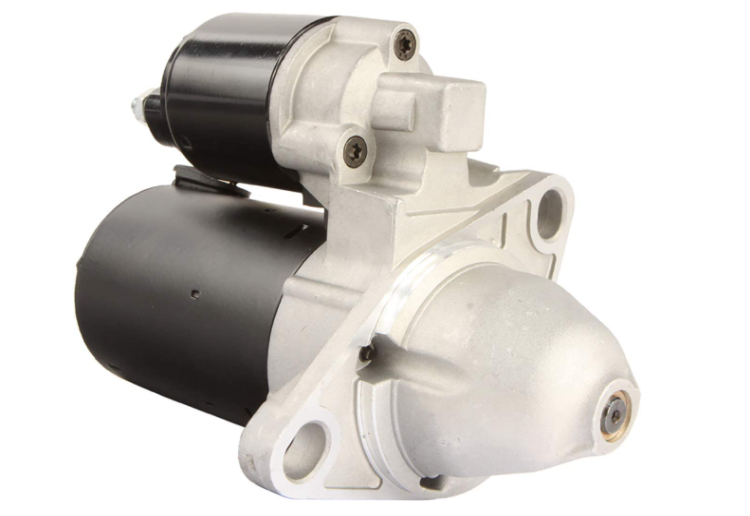

Volvo Penta 21302969 Starter Motor Replacement

Marine Energy Systems

Volvo Penta 21302969 Starter Motor Replacement Replaces Volvo Penta : 21302969, 3582514, 3801350, 3803584 Bosch: 0-001-107-078 Suits Volvo Penta: D...

View full details
$394.90 AUD - $394.90 AUD
$394.90 AUD
$394.90 AUD - $394.90 AUD
$394.90 AUD
$11.00 AUD - $11.00 AUD
$11.00 AUD
$11.00 AUD - $11.00 AUD
$11.00 AUD

Spacer - JMP SPC0027 Replaces VP 3583988 / 3581367

Marine Energy Systems

Spacer - JMP SPC0027 Replaces VP 3583988 / 3581367

$11.00 AUD - $11.00 AUD
$11.00 AUD
$11.00 AUD - $11.00 AUD
$11.00 AUD
$33.00 AUD - $33.00 AUD
$33.00 AUD
$33.00 AUD - $33.00 AUD
$33.00 AUD

Volvo Penta SD120 Sail Drive Anode 851983 23973978 Replacement

Recmar

Aluminium Ring anode for Volvo Penta marine sail drive units SD120, SD120-E Replaces Volvo Penta 23973978, 851983, 876286 (zinc). TEC 00706. Afterm...

View full details
$33.00 AUD - $33.00 AUD
$33.00 AUD
$33.00 AUD - $33.00 AUD
$33.00 AUD
$44.00 AUD - $44.00 AUD
$44.00 AUD
$44.00 AUD - $44.00 AUD
$44.00 AUD

Volvo Penta 3858399 2/3 Blade Folding Prop Anode kit Replacement

Recmar

Aftermarket Volvo Penta 3858399 Anode kit (Zinc)  Replaces Volvo Penta 3858399, 23974203 ( Aluminium), 3858400 (Magnesium) Used On Volvo Penta Sail...

View full details
$44.00 AUD - $44.00 AUD
$44.00 AUD
$44.00 AUD - $44.00 AUD
$44.00 AUD
$77.00 AUD - $77.00 AUD
$77.00 AUD
$77.00 AUD - $77.00 AUD
$77.00 AUD

Yanmar / Volvo Sail Drive Hull Seal (22303438 / 196420-02551) Replacement

Recmar

Rubber Mounting Hull Seal for Sail Drives Replaces Volvo Penta 22303438, 3583365, 852699, 853479, 854932. Bellows mounting kit 21389074 also availa...

View full details
$77.00 AUD - $77.00 AUD
$77.00 AUD
$77.00 AUD - $77.00 AUD
$77.00 AUD
$66.00 AUD - $66.00 AUD
$66.00 AUD
$66.00 AUD - $66.00 AUD
$66.00 AUD

Volvo Penta SD 120s 130s, 150s & MS25 Saildrive Seal Kit (23033)

Marine Energy Systems

PROPELLER SHAFT GASKET KIT SUITS VOLVO SAILDRIVE SD130-150S Aftermarket part REC 23033

$66.00 AUD - $66.00 AUD
$66.00 AUD
$66.00 AUD - $66.00 AUD
$66.00 AUD
$189.20 AUD - $189.20 AUD
$189.20 AUD
$189.20 AUD - $189.20 AUD
$189.20 AUD

Volvo Penta Sail Drive Rubber Diaphragm Instal Seal Kit Replaces 21389074

Marine Energy Systems

Bellows kit for Volvo Penta sail drive replaces 21389074 Replaces Volvo Part Numbers: 21112450, 21389074, 3840050, 3856597, 854934, 872026, 877362....

View full details
$189.20 AUD - $189.20 AUD
$189.20 AUD
$189.20 AUD - $189.20 AUD
$189.20 AUD
$100.00 AUD - $100.00 AUD
$100.00 AUD
$100.00 AUD - $100.00 AUD
$100.00 AUD

Twin / Dual Primary Fuel Filter Assembly Replaces CAV296

Recmar

Dual (CAV Type) Filter AssemblyPrimary Fuel Filter suits Diesel Engines  up to 130 HP. Replacement Element, Use REC 3581078,  Replaces CAV 296, DEL...

View full details
$100.00 AUD - $100.00 AUD
$100.00 AUD
$100.00 AUD - $100.00 AUD
$100.00 AUD
