Yanmar 6LP/ 6LPA-STP2 Seawater Pump 119773-42502 Replacement JPR-YM06LPB
by JMP Marine
Original price
$990.00 AUD
-
Original price
$990.00 AUD
Original price
$990.00 AUD
$990.00 AUD
-
$990.00 AUD
Current price
$990.00 AUD
Yanmar 6LP/ 6LPA-STP2 Seawater Pump without ports 119773-42502 Replacement
Replaces Yanmar 119773-42502 / 119773-42501 / 119773-42500 / 119773-42650 (DTZE / STZE models need to use old ports with gasket 119787-42570).
Replaces Johnson 10-24493-01
Includes gear and mounting o-ring similar to Yanmar 24321-000650
Please note - this pump is supplied without the intake & outlet Port Housing. Re use the existing housing from the pump in use. Add with gasket 119787-42570 to your order.
For Replacement Ports Ref PCB0234
For the pump with ports, use JMP JPR - YM06LP.
This is a non-OEM, aftermarket part JMP JPR-YM06LPB. See Link for Product Video
All parts are interchangeable with Yanmar.

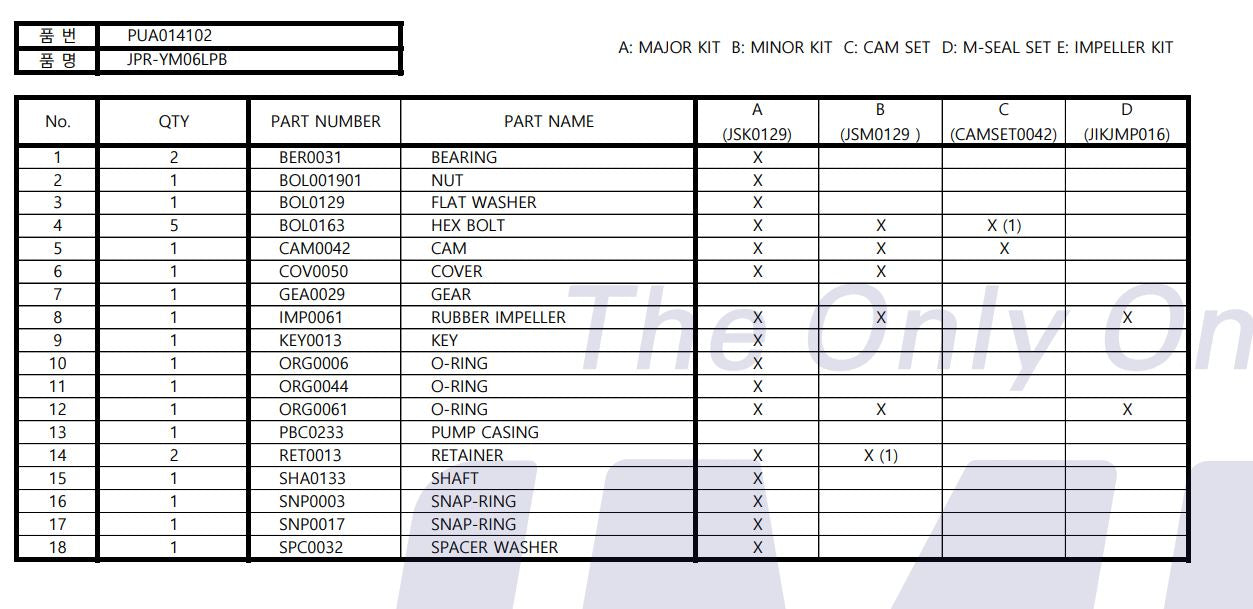

| Pos | Description | Yanmar Number |
Johnson Number |
Included Minor Kit |
Included Major Kit |
JMP Number |
|---|---|---|---|---|---|---|
| Seawater Pump | 119773-42502 | 10-24493-02 | JPR-YM06LPA | |||
| 24 | Minor Kit | N/A | JSM0129 | |||
| 25 | Major Kit | N/A | JSK0129 | |||
| 1 | Bearing | X0508511 | 0.3431.444 | ✔ | BER0031 | |
| Nut, Gear | 26736-140002 | ✔ | BOL001901 | |||
| 2 | Spring washer | x0502101000 | 0.0353.309 | ✔ | BOL0037 | |
| Washer, Gear | 22117-140000 | ✔ | BOL0129 | |||
| 3 | Hex screw, Cam |
x0504174000(Cam) | 0.0279.033 | ✔ | ✔ | BOL0163 |
| 3-1 | Hex screw, End Cover |
119175-42620(Cover) | 0.0141.502 | ✔ | ✔ | BOL0163 |
| Hex bolt | X0504527000 | 0.0142.602 | ✔ | BOL0184 | ||
| Hex bolt | X0504527 | 0.0142.601 | ✔ | BOL0185 | ||
| 6 | Cam | X0146502000 | 01-46502 | CAM0042 | ||
| 6-1 | Cam Set (CAM0042, BOL0163) |
N/A | ✔ | ✔ | CAMSET0042 | |
| 7 | End Cover | 129670-42520 | 01-46535 | ✔ | ✔ | COV0050 |
| 8 | Gasket | 119787-42570 | 119787-42570 | ✔ | GAK0067 | |
| Gear | 119773-42520 | GEA0029 | ||||
| 9 | Impeller | 119773-42600 | 08-812B | ✔ | ✔ | 7136-01 |
| Woodruff Key, Gear | 22522-050160 | ✔ | KEY0013 | |||
| O-ring (Mounting) | 24321-000650 | ORG0006 | ||||
| O-ring (Slinger) | X0506501 | 0.2173.402 | ✔ | ✔ | ORG0044 | |
| 11 | O-ring (End Cover) | 119773-42570 | 0.2173.475 | ✔ | ORG0061 | |
| 12 | Body, Sea Water Pump |
N/A | 01-24491-1 | PBC0233 | ||
| 13 | Pump connection | 119773-42550 | 01-24492-1 | PBC0234 | ||
| Retainer | X0529105 | 0.2233.001 | ✔ | ✔ | RET0013 | |
| 15 | Shaft | X0146268000 | 01-46268-2 | ✔ | SHA0133 | |
| Snap-ring | X0534107000 | 0.0370.020 | ✔ | SNP0003 | ||
| Snap-ring | X0534507000 | 0.0371.042 | ✔ | SNP0017 |
